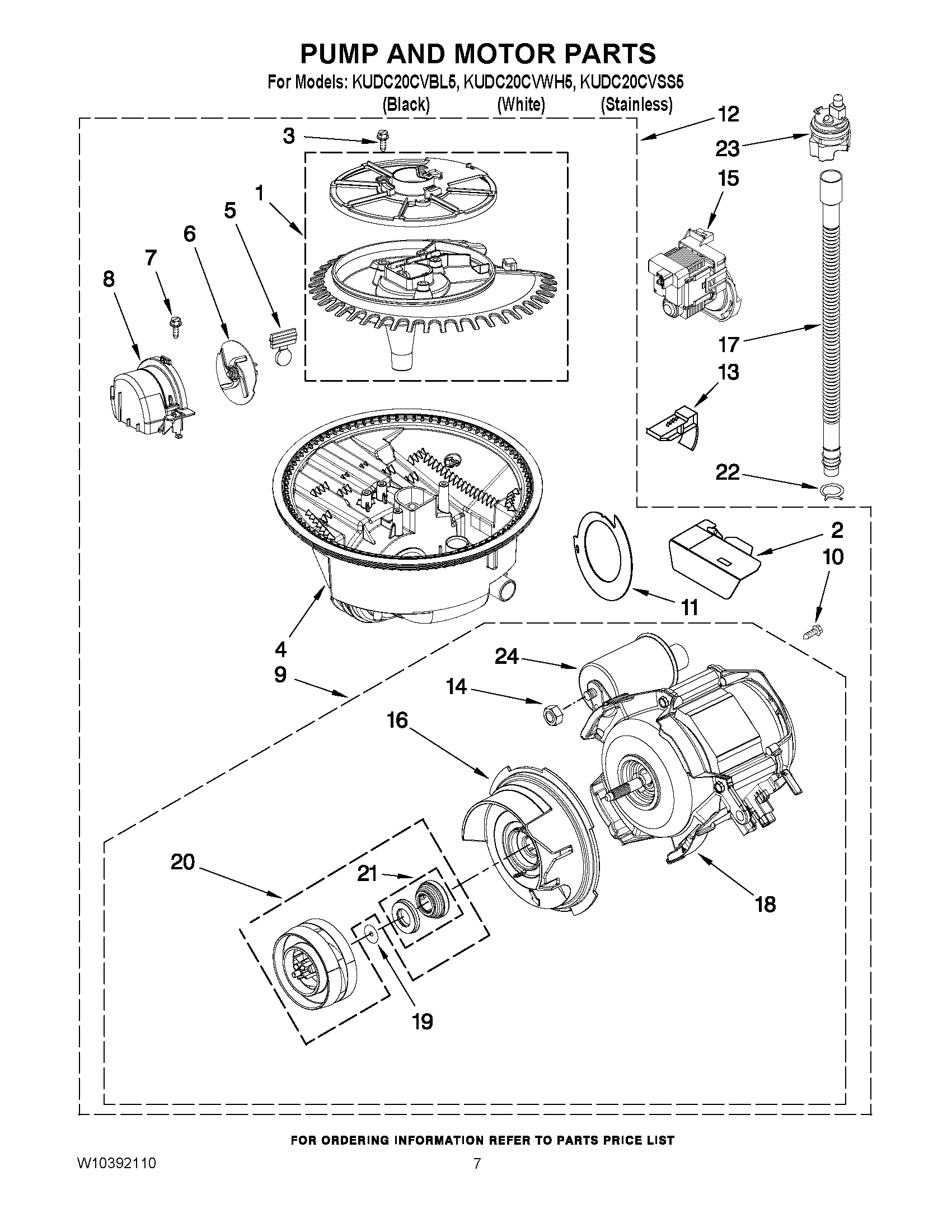

KUDC20CVBL5 06 – PUMP AND MOTOR PARTS

Products

Position	Product
1	8193918 Whirlpool Accumulator
2	8283527 Whirlpool Shield
3	SCREW
4	WP8572618 Whirlpool Dishwasher Sump Assembly
5	WP8268375 Whirlpool Dishwasher Check Valve
6	W10083957V Whirlpool Dishwasher Chopper
7	WP9741232 Whirlpool Dishwasher Screw
8	WP8531857 Whirlpool Dishwasher Protector
9	WPW10757217 Whirlpool Circulation Pump and Motor
10	3400217 Whirlpool Dishwasher Screw
11	W10084567 Whirlpool Dishwasher Screen
12	PUMP&MOTOR
13	WPW10300599 Whirlpool Dishwasher Sump Tab
14	8533949 Whirlpool Dishwasher Nut
15	WPW10348269 Whirlpool Washer Drain Pump
16	W11622922 Whirlpool Dishwasher Volute
17	8269144A Whirlpool Dishwasher Drain Hose
18	WPW10239401 Whirlpool Dishwasher Pump Motor
19	WP8531018 Whirlpool Dishwasher Washer
21	8193951A Whirlpool Impeller Assembly
22	WP8269146 Whirlpool Dishwasher Clamp
23	WPW10705575 Whirlpool Dishwasher Sensor
24	WPW10334457 Whirlpool Dishwasher Capacitor
