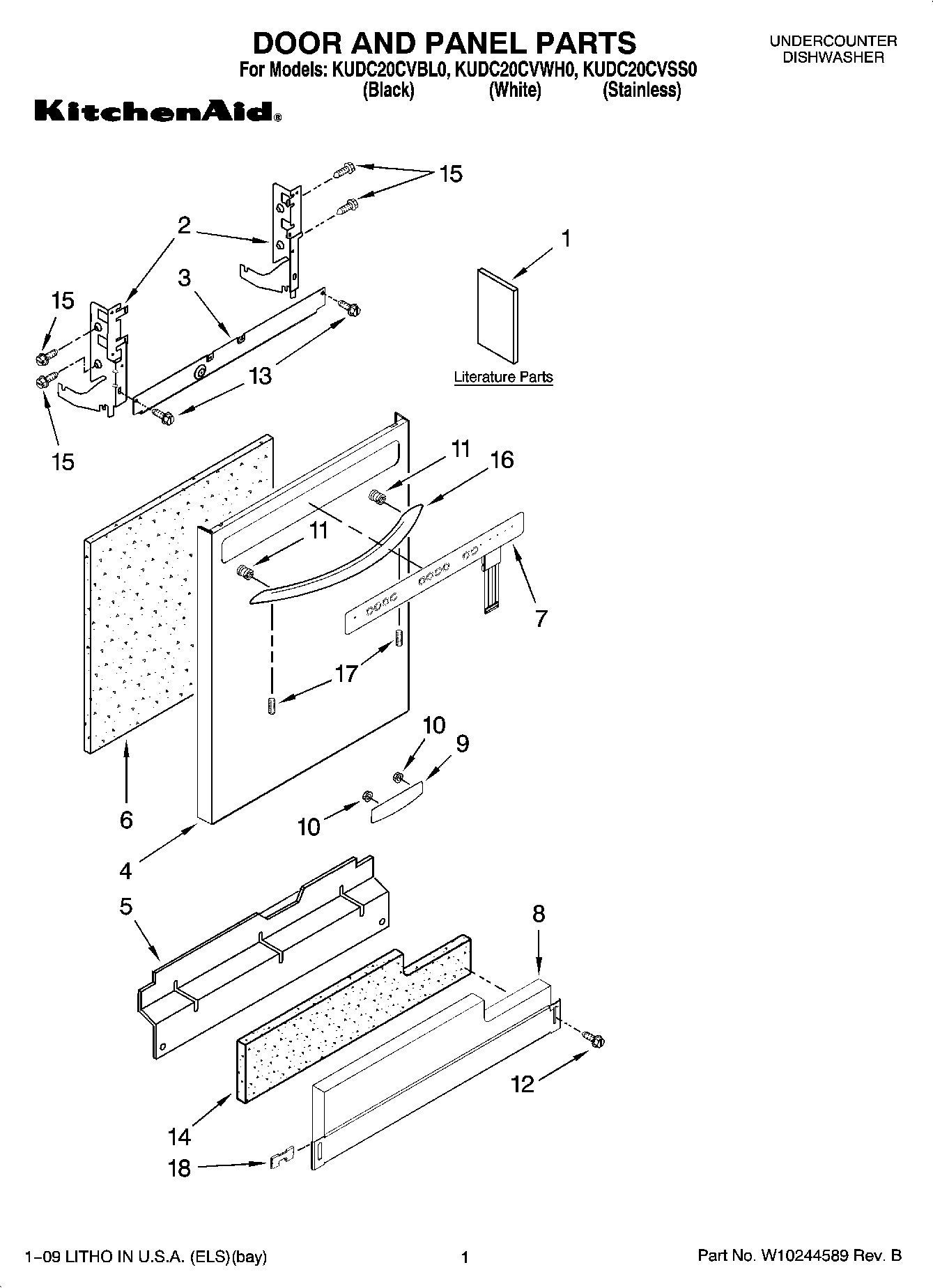

KUDC20CVSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE ENGLISH & FRENCH
1GUIDE, USE & CARE (SPANISH)
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 6, 9, 10 & 11) (Black)
4Panel Front (Includes Items 6, 9, 10 & 11) (White)
4Panel Front (Includes Items 6, 9, 10 & 11) (Stainless)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7Bezel, Console (Stainless)
7WPW10077790 Whirlpool Dishwasher Overlay
7Bezel, Console (White)
8W10799406 Whirlpool Dishwasher Toe Panel
9W10021870 Whirlpool Nameplate
9W10021860 Whirlpool Dishwasher Nameplate
9W10021850 Whirlpool Dishwasher Nameplate
10WP2004333 Whirlpool Refrigerator Nut
11WP8564951 Whirlpool Dishwasher Stud
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14SHIELD
15WP3400071 Whirlpool Screw
16Handle Assy (Includes Items 7) (White)
16Handle Assy (Includes Items 7) (Black)
16W10195738A Whirlpool Stainless Steel Door Handle
17WP8534008 Whirlpool Screw
18WP8269016 Whirlpool Clip Assembly
