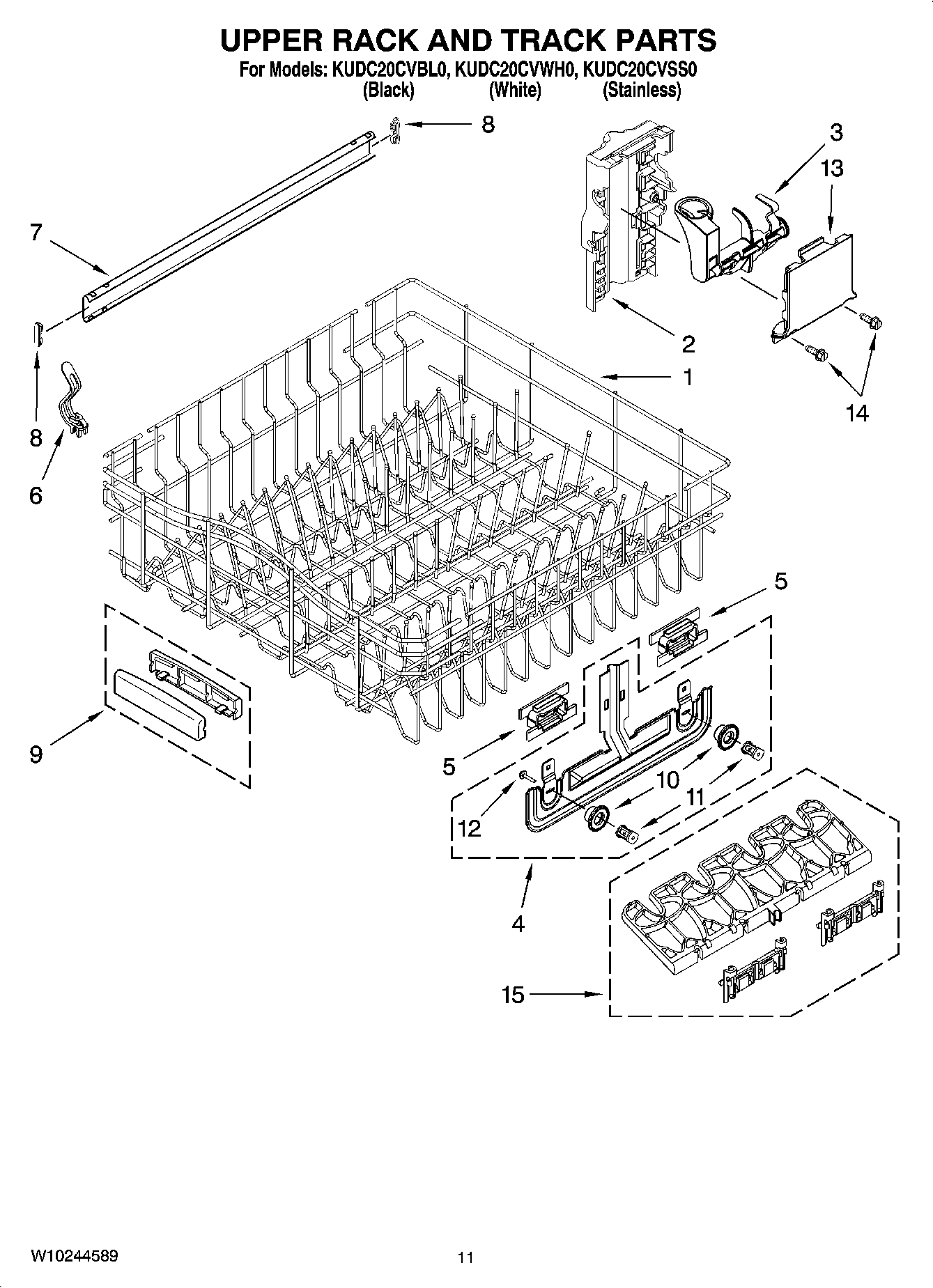

KUDC20CVSS0 09 – UPPER RACK AND TRACK PARTS

KUDC20CVSS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDC20CVSS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2W10728563 Whirlpool Dishwasher Housing
3Actuator, Adjuster (Right Hand)
3Actuator, Adjuster (Left Hand)
4W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5W10728566 Whirlpool Dishwasher Positioner
6WPW10077844 Whirlpool Dishwasher Clip
7WP3385089 Whirlpool Track
8WP8565925 Whirlpool Slide Rail Stop
9Handle, Dishrack
10WP3385088 Whirlpool Dishwasher Upper Wheel
11WP8268703 Whirlpool Dishwasher Rack Axle
12WP9741232 Whirlpool Dishwasher Screw
13W10728561 Whirlpool Dishwasher Cover
14WP8281156 Whirlpool Dishwasher Screw
15WPW10082649 Whirlpool Dishwasher Cup Shelf
