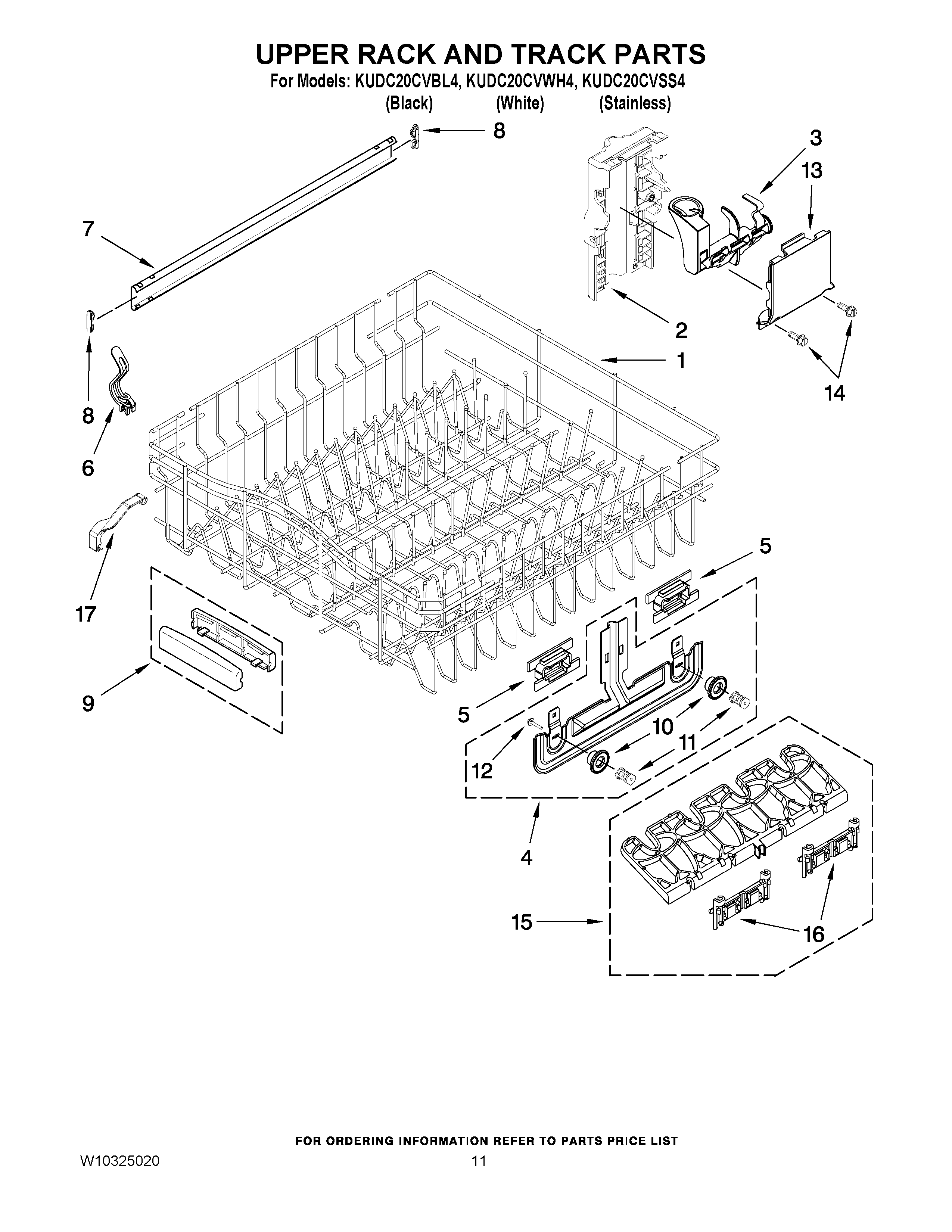

KUDC20CVWH4 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	WPW10350382 Whirlpool Dishwasher Dishrack
2	W10728563 Whirlpool Dishwasher Housing
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	W10728566 Whirlpool Dishwasher Positioner
6	WPW10077844 Whirlpool Dishwasher Clip
7	WP3385089 Whirlpool Track
8	WP8565925 Whirlpool Slide Rail Stop
9	Handle, Dishrack
10	WP3385088 Whirlpool Dishwasher Upper Wheel
11	WP8268703 Whirlpool Dishwasher Rack Axle
12	WP9741232 Whirlpool Dishwasher Screw
13	W10728561 Whirlpool Dishwasher Cover
14	WP8281156 Whirlpool Dishwasher Screw
15	WPW10082649 Whirlpool Dishwasher Cup Shelf
16	WPW10082848 Whirlpool Clip
17	WPW10267076 Whirlpool Guard Clip
