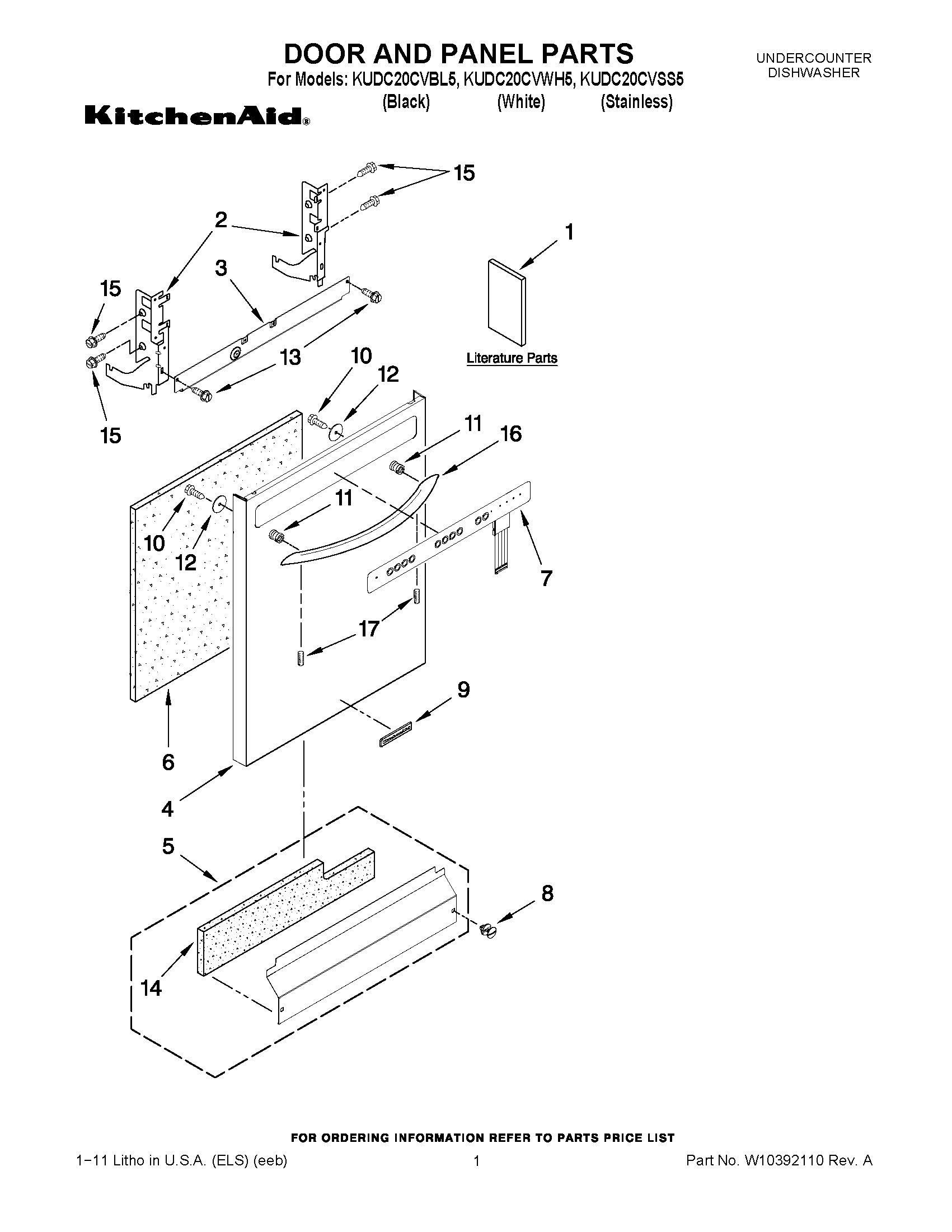

KUDC20CVWH5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Tech Sheet
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 6, 9, 10 & 11) (White)
4Panel Front (Includes Items 6, 9, 10 & 11) (Black)
4Panel Front (Includes Items 6, 9, 10 & 11) (Stainless)
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7W10243193 Whirlpool Dishwasher Overlay
7W10243194 Whirlpool Dishwasher Overlay
7WPW10243195 Whirlpool Dishwasher Overlay
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WPW10243393 Whirlpool Dishwasher Nameplate
9WPW10243392 Whirlpool Dishwasher Nameplate
9WPW10243391 Whirlpool Refrigerator Nameplate
10Screw
11WP8564951 Whirlpool Dishwasher Stud
12Plates, Backing
13WP489069 Whirlpool Compactor Screw
14SHIELD
15WP3400071 Whirlpool Screw
16HANDLE (INCLUDES ITEMS 13) (WHITE)
16W10195738A Whirlpool Stainless Steel Door Handle
16HANDLE (INCLUDES ITEMS 13) (BLACK)
17WP8534008 Whirlpool Screw
