KUDC20FVBL2 02 – CONTROL PANEL PARTS

KUDC20FVBL2 02 – CONTROL PANEL PARTS

Written by

in

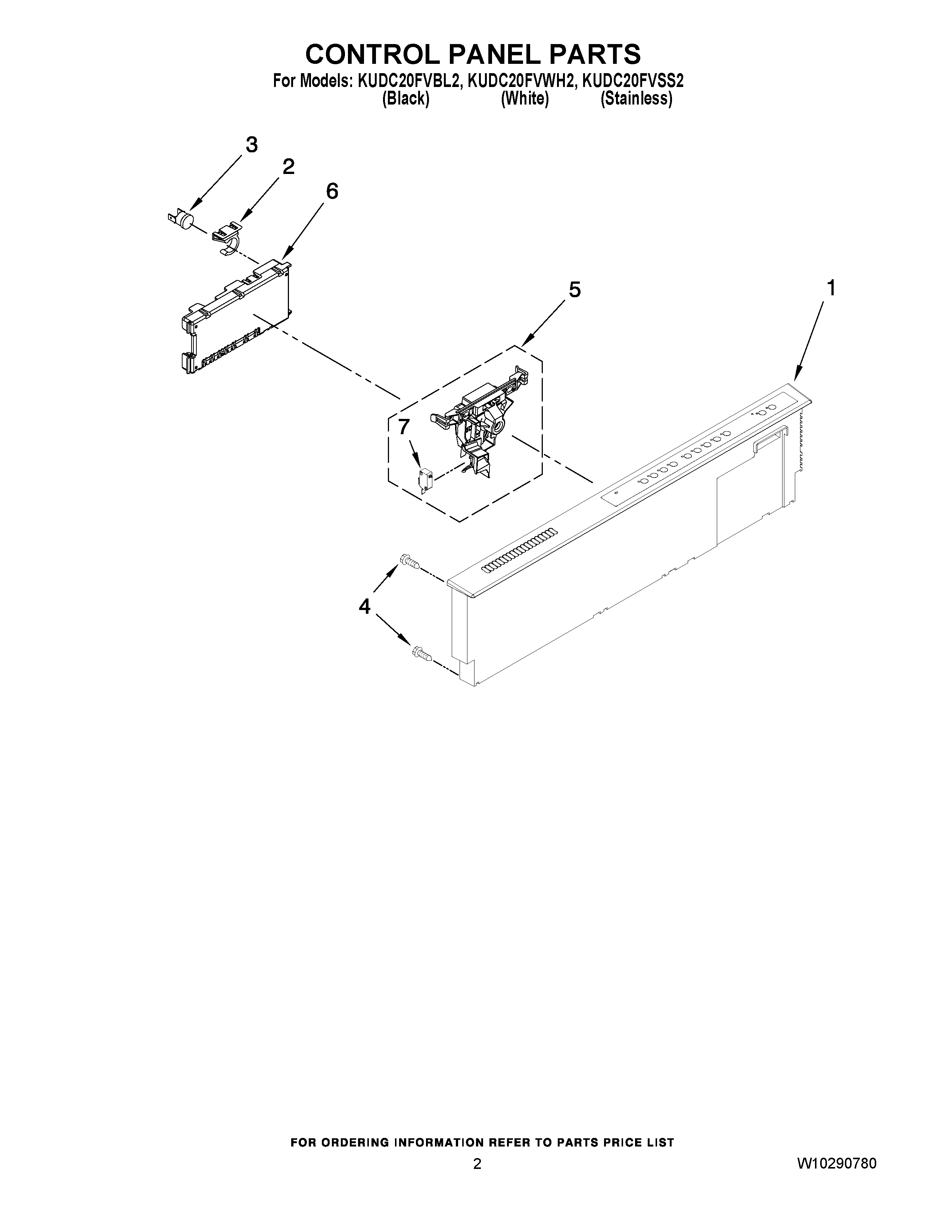

KUDC20FVBL2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10348409 Whirlpool Screw
5WPW10404412 Whirlpool Door Latch
6WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
7WPW10134019 Whirlpool Dishwasher Switch
