KUDC210S1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

KUDC210S1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Written by

in

KUDC210S1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
WPL LIT4171139
WPL LIT4171146
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4171136
Paint, Spray (13 Oz.) (Platinum)
Toast
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT4177717
Golden Harvest (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
WPL LIT4171140
Golden Harvest

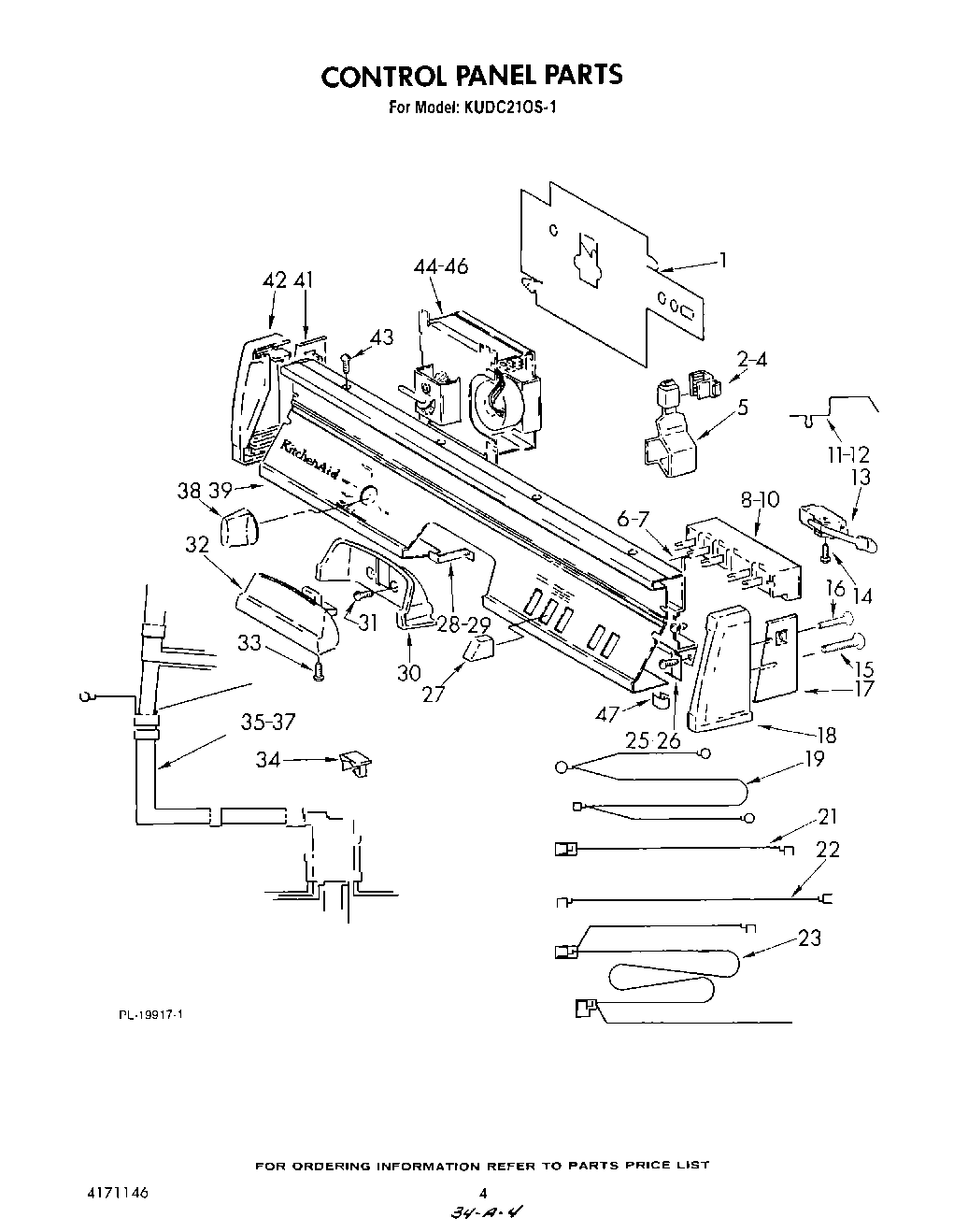

1Insulator, Latch
2Anchor, Cancel Spring
4Rivet
5Spring, Switch Cancel
6Bracket, Program Switch
8Switch, Program
10Screw, 10-16 X 5/8
11Spring, Door Interlock
12WP693304 Whirlpool Screw
13Switch, Interlock
14Screw 6-32 X 7/8
15Screw & Washer Assy
16WP681249 Whirlpool Screw Assembly
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
19Wiring Harness (Grounding)
21Lead (Fill Control to Fill Valve)
22Lead Assembly (Interlock Switch to Program Switch)
23Wiring Harness (Lower Common)
25Clip, Grounding (Front Panel)
27Button, Program Switch (2)
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35Wiring Harness (Main)
37WPL 4159349
38Knob, Timer
39Control Panel
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Timer Assembly (115 V., 60 Hz.)
46SCREW
47Clip, Endcap (2)
