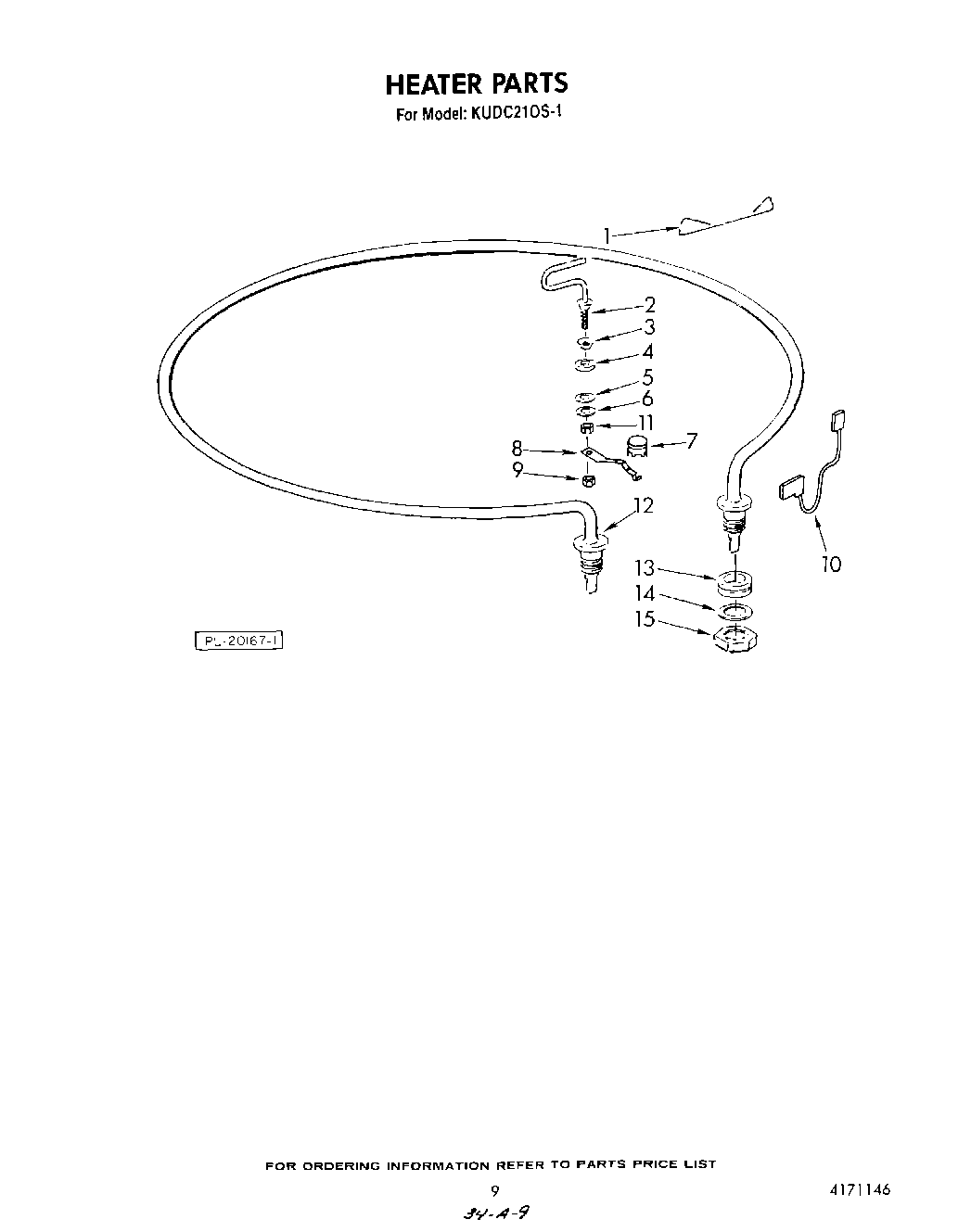

KUDC210S1 07 – HEATERadmin2025-04-26T13:00:20+00:00KUDC210S1 07 – HEATER
Products
| Position | Product |
|---|
| 1 | Spring, Heater Retainer |
| 2 | Hook, Heater Element |
| 3 | Washer |
| 4 | Washer, Sealing |
| 5 | Washer |
| 6 | Washer |
| 7 | Thermostat |
| 8 | Bracket, Thermostat |
| 9 | Locknut |
| 10 | Lead, Thermostat |
| 11 | Glass, Backguard |
| 12 | Element, Heater |
| 13 | Grommet, Heater Element |
| 14 | Washer, Heater Element |
| 15 | Nut, Heater Element |
