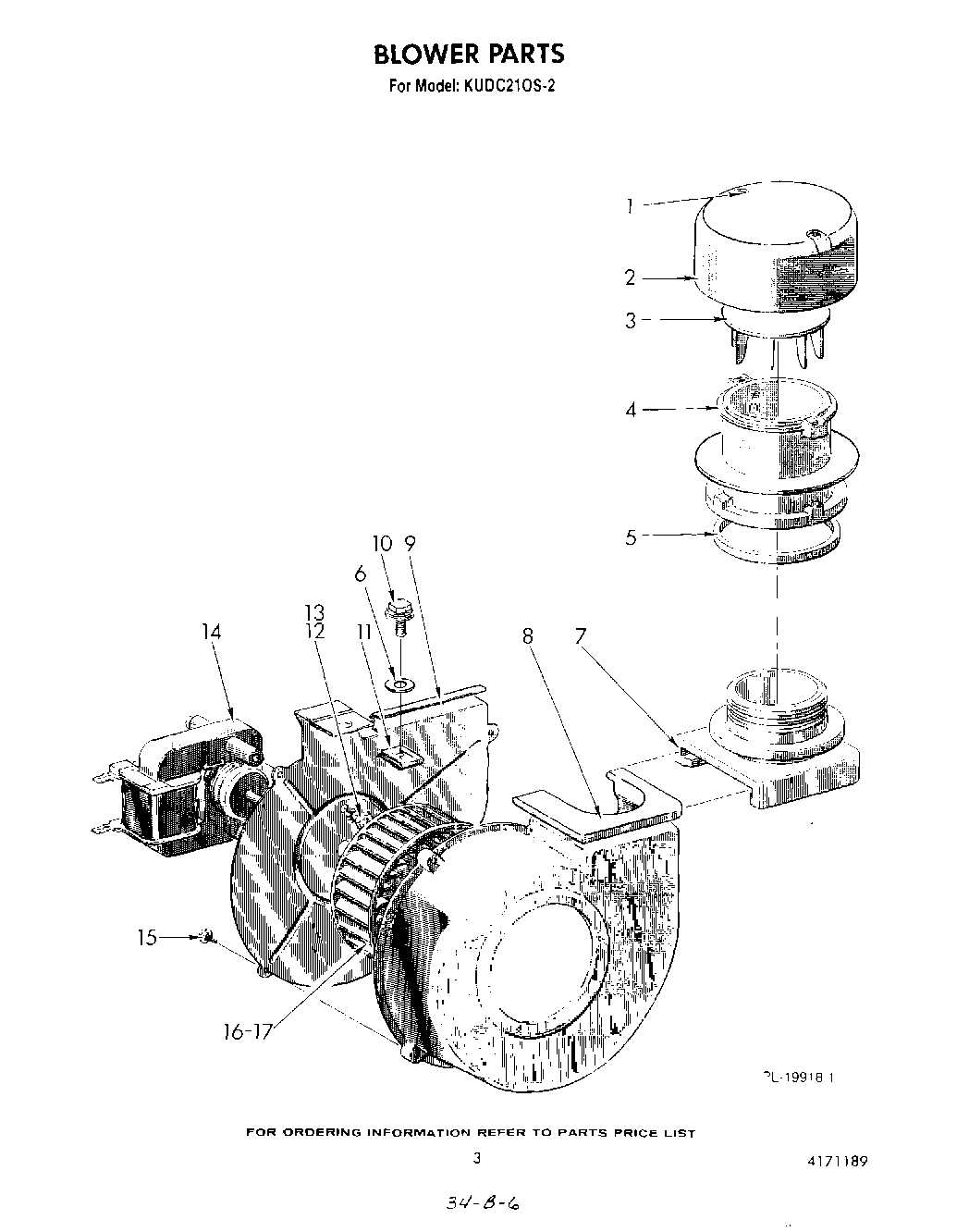

KUDC210S2 03 – BLOWER

Products

Position	Product
1	Screw, 6-32 X 7/8
2	Cap, Air Inlet
3	Damper, Air Inlet
4	Tube, Air Inlet
5	Seal, Air Inlet
6	Spacer, Blower Mounting
7	Support, Blower
8	Housing, Blower
9	Plate, Motor Mounting
10	Screw, Blower Retainer
11	WPL 4162903
12	Nut, 6-32 Hex
13	Lockwasher
14	Motor, Blower
15	Screw, 6 X 1/2
16	Blower Wheel Assembly (Includes Item 17)
17	Retaining Ring
