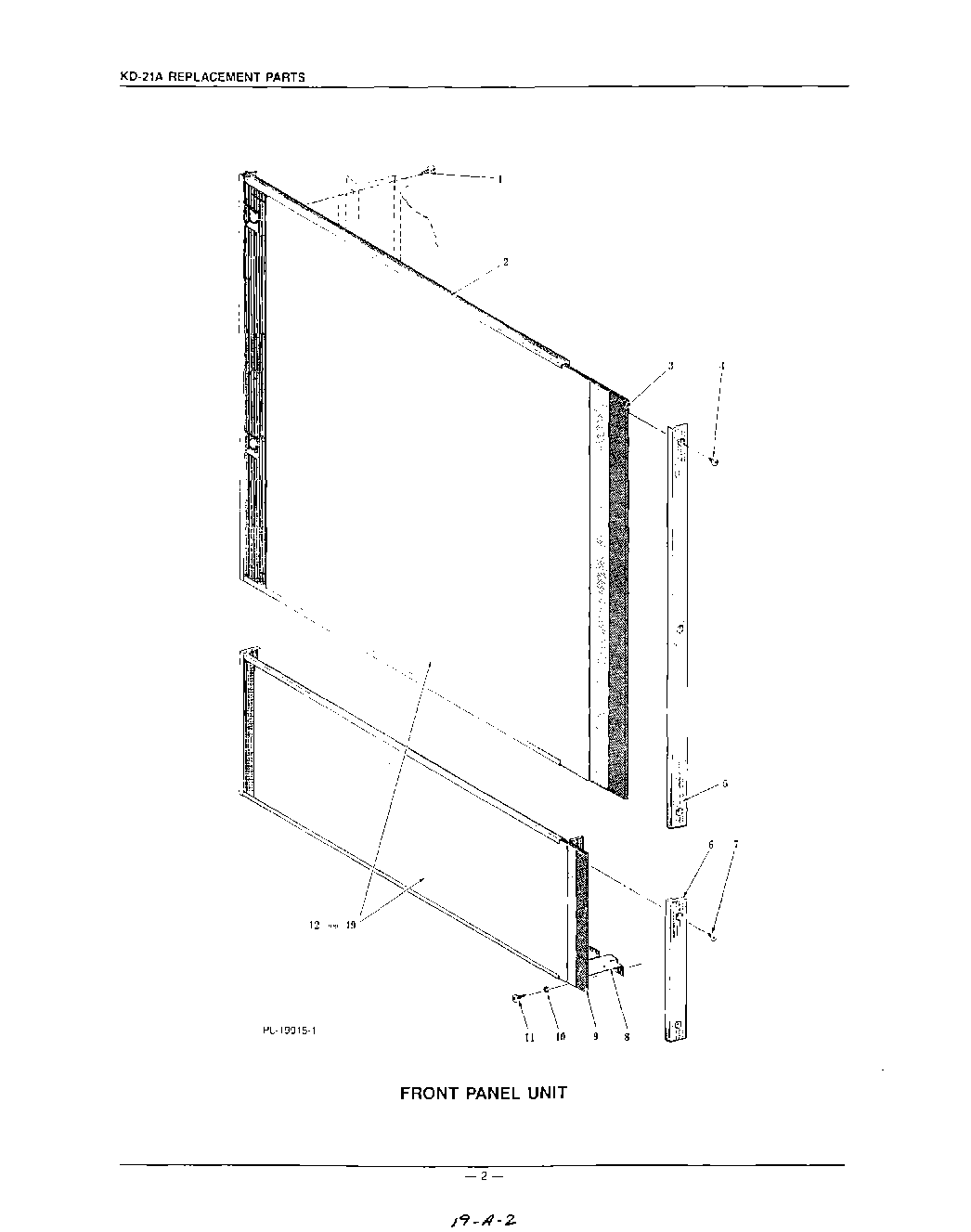

KUDC21DS0 02 – FRONT PANEL

Products

Position	Product
1	xxScrew & Washer Assy
2	xUpper Mounting Panel & Trim Assy
3	xFiller (Upper Panel)
4	xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., Type AB
5	Side Trim - Upper Panel
6	Side Trim - Lower Panel
7	xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., Type AB
8	xLower Mounting Panel & Trim Assy
9	xFiller (Lower Panel)
10	xLock Washer 10 Ext. Shakeproof (Left Side for Ground)
11	xSelf-Tapping Screw - No. 10 x 1/2`` Phil. Truss Hd., Type AB
12	Kit - Panel Inserts (FA/CO)
12	Kit - Panel Inserts (SST)
12	Kit - Panel Inserts (AL/WH)
12	Kit - Panel Inserts (SA/OB)
12	Kit - Panel Inserts (HT/OB)
12	Kit - Panel Inserts (SI/OB)
12	Kit - Panel Inserts (PL/TO)
