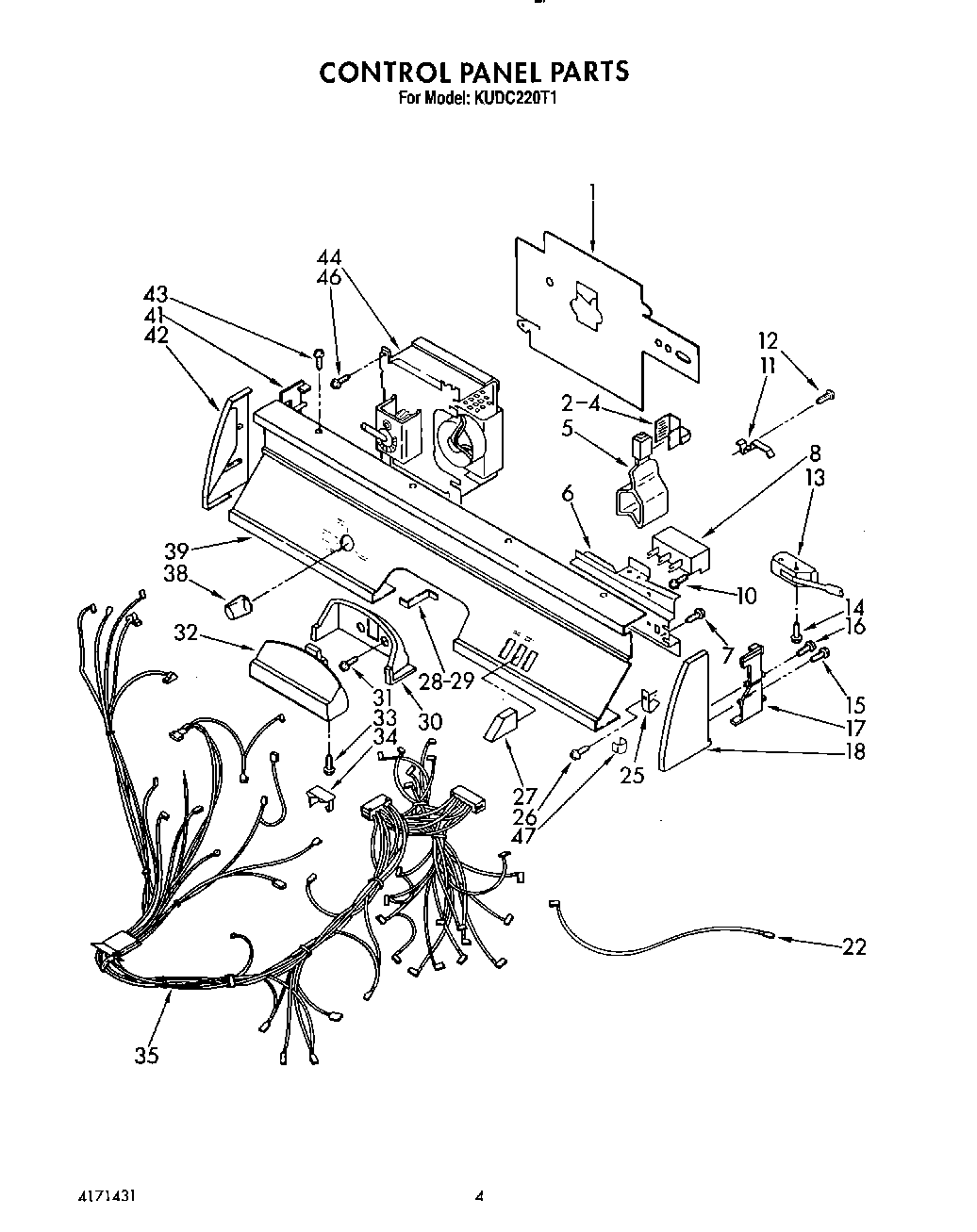

KUDC220T1 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4171432
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT9740073
	WPL LIT4171206
	WPL LIT4171431
	WPL LIT4171374
	Enamal, Toast (1 Qt. Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Golden Harvest
	Toast
	Golden Harvest (Uncut)
	72113 Whirlpool Touch-Up Paint
1	Insulator, Latch
2	Anchor, Cancel Spring
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
10	Screw, 6-32 X 3/8
11	Spring, Door Interlock
12	WP693304 Whirlpool Screw
13	Switch, Interlock
14	Screw (2)
15	Screw & Washer Assy
16	WP681249 Whirlpool Screw Assembly
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
22	Lead Assembly (Interlock Switch to Program Switch)
25	Clip, Grounding (Front Panel)
27	Button, Program Switch (7)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
38	Knob, Timer
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
44	Timer Assembly (115 V., 60 Hz.)
46	SCREW
47	Clip, Endcap (2)
