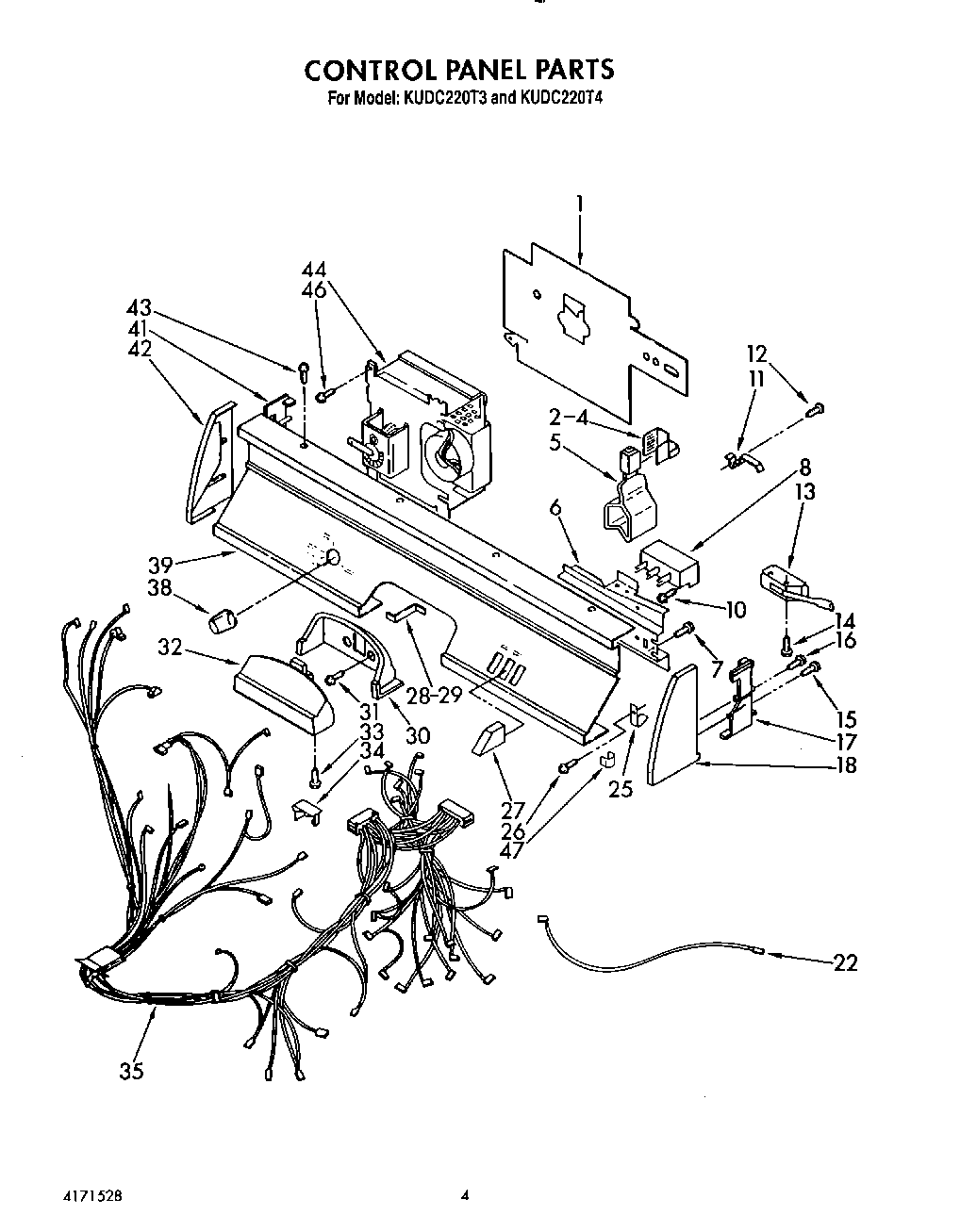

KUDC220T4 04 – CONTROL PANEL, LIT/OPTIONAL

KUDC220T4 04 – CONTROL PANEL, LIT/OPTIONAL

KUDC220T4 04 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
WPL LIT4171374
WPL LIT9740623
WPL LIT4171206
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4171432
Toast
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Paint, Spray (13 Oz.) (Platinum)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
WPL LIT4171528
Golden Harvest
Golden Harvest (Uncut)
1Insulator, Latch
2Anchor, Cancel Spring
4Rivet
5Spring, Switch Cancel
6Bracket, Program Switch
8Switch, Program
10Screw, 6-32 X 3/8
11Spring, Door Interlock
12WP693304 Whirlpool Screw
13Switch, Interlock
14Screw (2)
15Screw & Washer Assy
16WP681249 Whirlpool Screw Assembly
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
22Lead Assembly (Interlock Switch to Program Switch)
25Clip, Grounding (Front Panel)
27Button, Program Switch (7)
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
38Knob, Timer
39Control Panel
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Timer Assembly (115 V., 60 Hz.)
46SCREW
47Clip, Endcap (2)
