KUDC220T5 04 – CONTROL PANEL, LIT/OPTIONAL
Written by
in

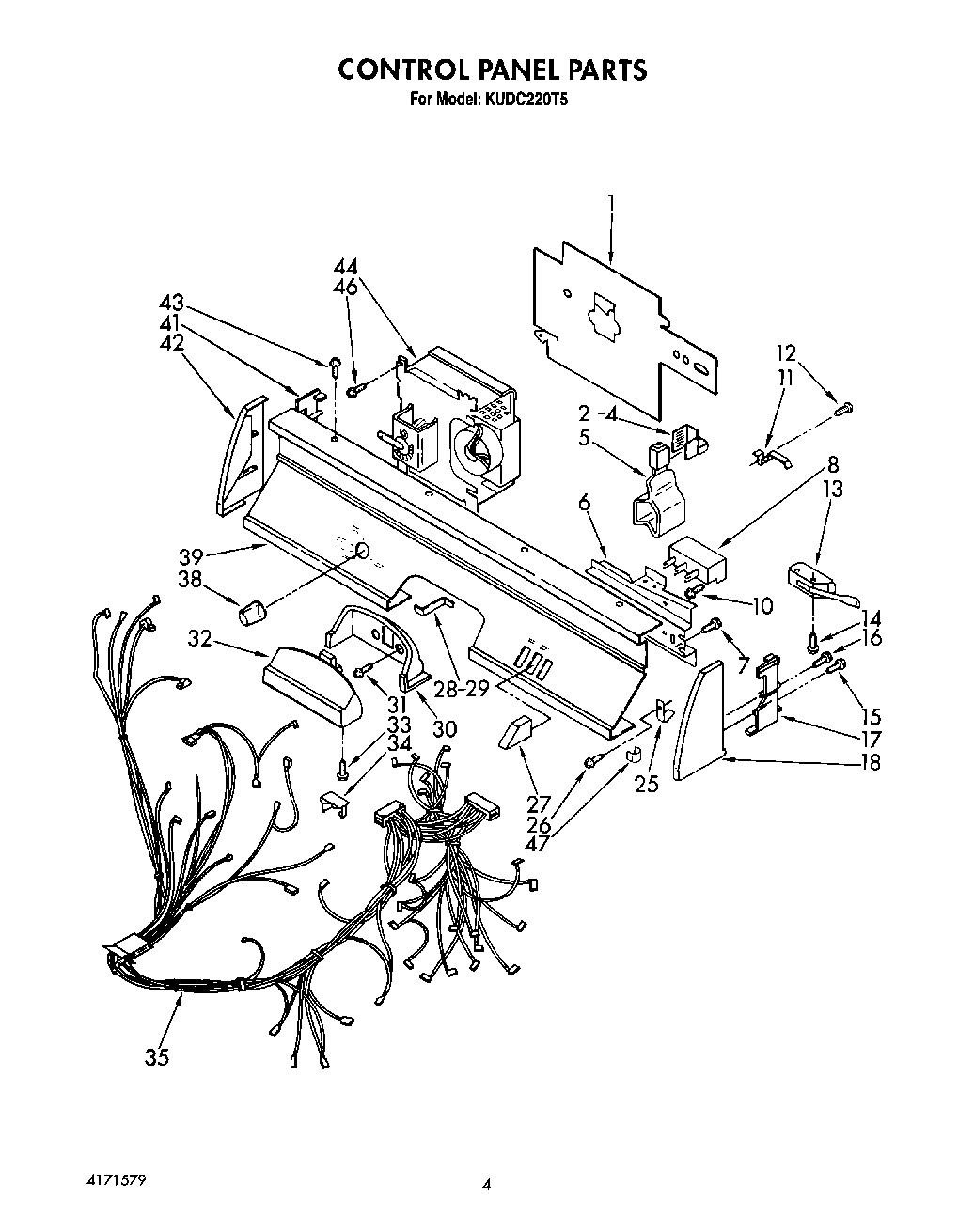

KUDC220T5 04 – CONTROL PANEL, LIT/OPTIONAL
Products
Position
Product
WPL LIT4171432
285006 Whirlpool Spray
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Adjustable Kickboard Kit
White (R.H.)
Almond (R.H.)
White (L.H.)
Almond (L.H.)
Wood Top Kit
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4171206
WPL 9741087
WPL LIT4171579
WPL LIT9740623
WPL LIT4171374
350942 Whirlpool Spray Paint
WPL 72112
350956 Whirlpool Spray Assembly
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
Leveler (Thinner)
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
350930 Whirlpool White Spray Paint
Platinum (Uncut)
1
Insulator, Latch
2
Anchor, Cancel Spring
4
Rivet
5
Spring, Switch Cancel
6
Bracket, Program Switch
8
Switch, Program
10
Screw, 6-32 X 3/8
11
Spring, Door Interlock
12
WP693304 Whirlpool Screw
13
Switch, Interlock
14
W11596033 Whirlpool Microwave Screw
15
Screw & Washer Assy
16
WP681249 Whirlpool Screw Assembly
17
Spacer, End Cap (R.H.)
18
End Cap (R.H.)
25
Clip, Grounding (Front Panel)
27
Button, Program Switch (7)
28
Bracket, Panel Reinforcement
29
Screw, 6-20 x 3/8
30
Trim, Handle
31
WP912618 Whirlpool Dishwasher Screw
32
Handle, Latch
33
Screw, 10-32 x 5/8
34
Clip, Harness Guide
35
WPL 4159349
35
Wiring Harness (Main)
38
Knob, Timer
39
Control Panel
41
Spacer, End Cap (L.H.)
42
End Cap (L.H.)
43
Screw, 6-20 x 3/8
44
Timer Assembly (115 V., 60 Hz.)
46
SCREW
47
Clip, Endcap (2)
←
