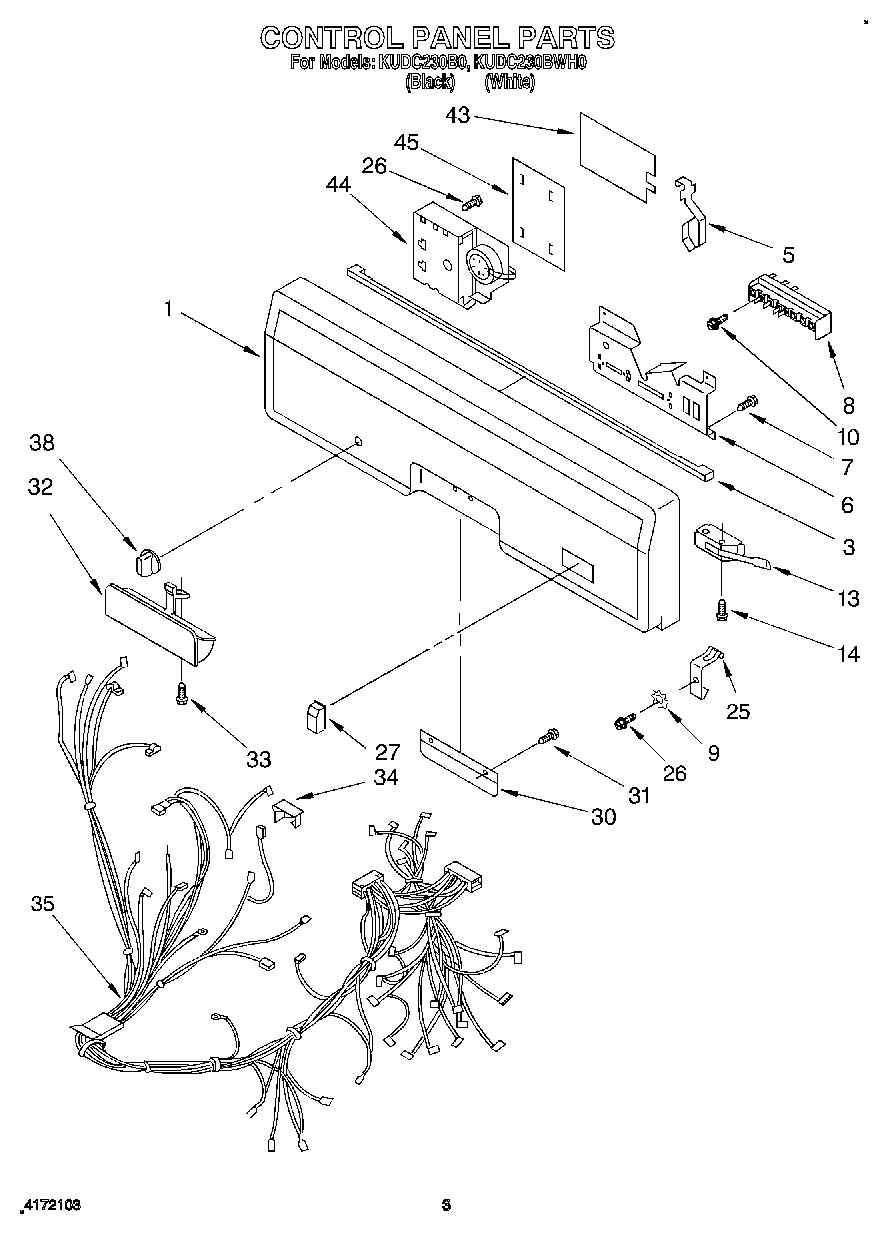

KUDC230B0 03 – CONTROL PANEL, LIT/OPTIONAL

KUDC230B0 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDC230B0 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT9741869
	WPL 9741087
	WPL LIT9742211
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL LIT9742114
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	Wood Top Kit
	285006 Whirlpool Spray
	WPL 72112
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	WPL LIT9742293
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
1	Control Panel (Includes Insert, No.3 Seal, and No. 30 Bracket) (Black Model)
1	Control Panel (Includes Insert, No.3 Seal, and No. 30 Bracket) (White Model)
3	Seal, Control Panel
5	Spring, Switch Cancel
6	Bracket, Program Switch
7	SCREW
8	Switch, Program
9	4159493 Whirlpool Lockwasher
10	Screw, 6-32 X 3/8
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
25	Clip, Grounding (Front Panel)
26	Screw, 8-18 x 1/2
27	Button, Program Switch (8) (White Model)
27	Button, Program Switch (6) (Black Model)
30	Bracket, Support
31	WP912618 Whirlpool Dishwasher Screw
31	Screw, 8-32 x 1/2 (Black Model)
32	Handle, Latch (White Model)
32	Handle, Latch (Black Model)
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
38	Knob, Timer (Black Model)
38	Knob, Timer (White Model)
43	Shield, Timer
44	Timer Assembly
45	Barrier, Timer
