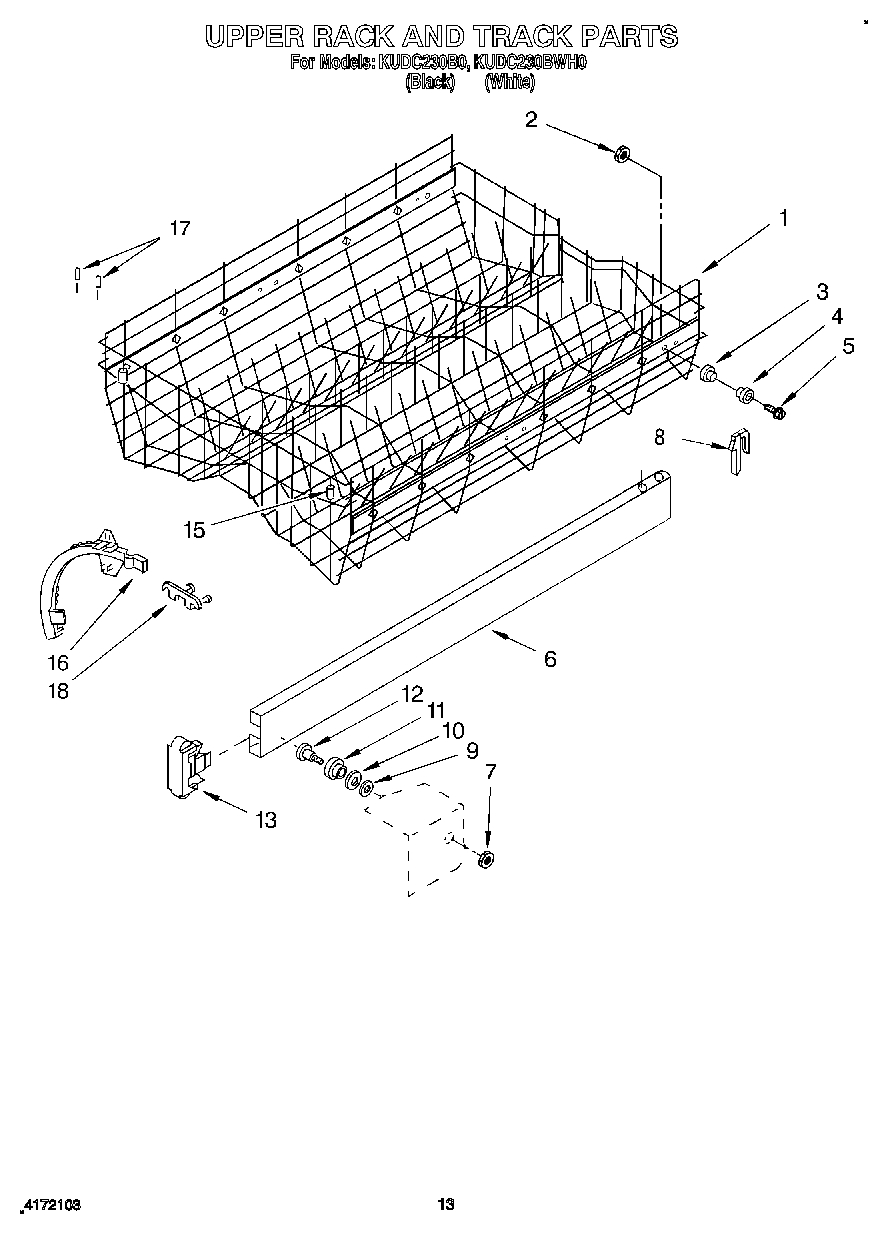

KUDC230B0 10 – UPPER RACK AND TRACK

Written by

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Roller, Upper Rack Track (4)
5	Screw
6	Track, Rack
7	Nut, Lock
8	Stop, Track (2)
9	Washer
10	Washer, Cup
11	Roller, Rack Track
12	Screw, Track Roller
13	Endcap, Front or Rear (2)
15	Bumper, Upper Rack
16	Quadrant, Divider
17	Tip (2)
18	Clip, Partition (3)
