KUDC24SESS4 01 – DOOR AND PANEL

KUDC24SESS4 01 – DOOR AND PANEL

Written by

in

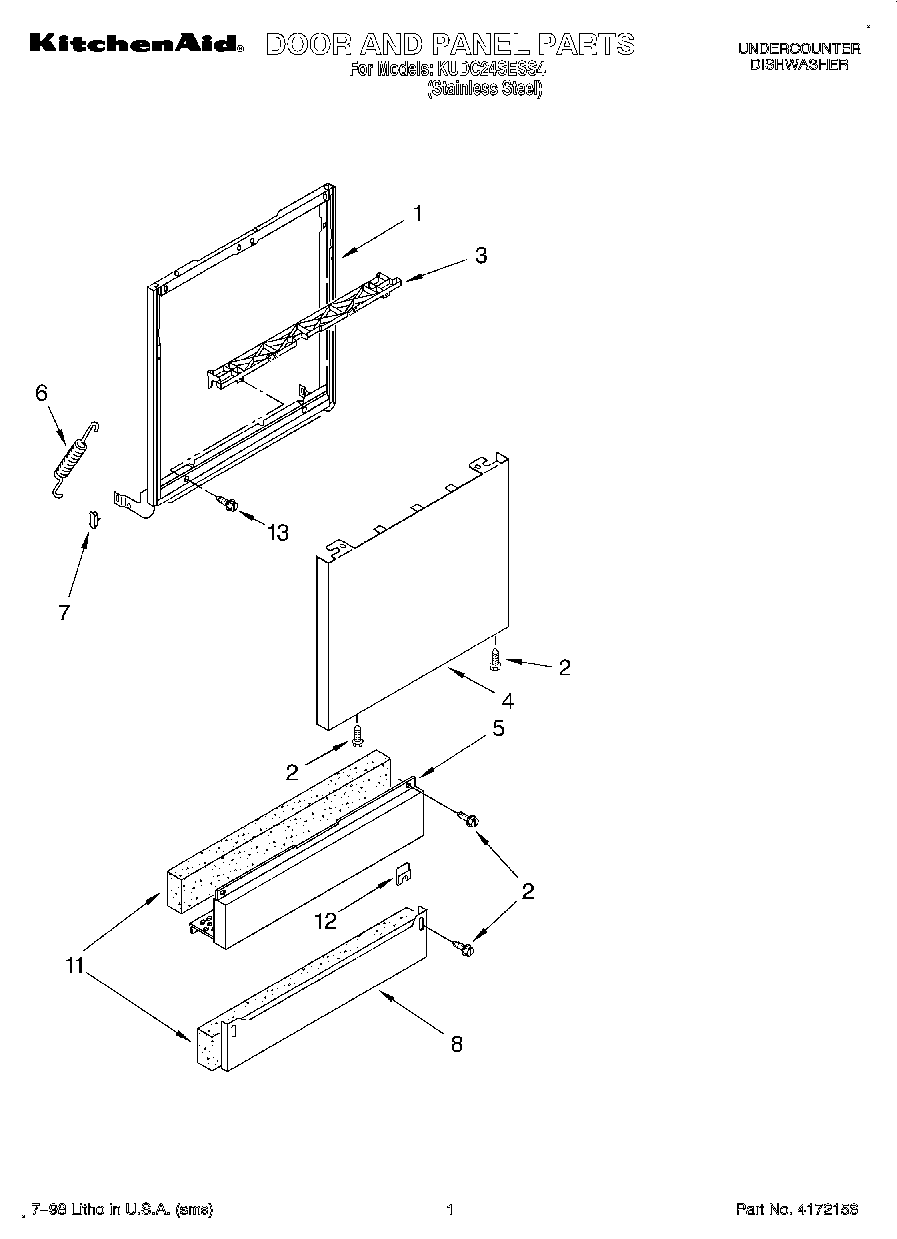

KUDC24SESS4 01 – DOOR AND PANEL

Products

PositionProduct
1WP9743028 Whirlpool Dishwasher Frame
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel Front (Stainless Mdl.)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Stainless Mdl.)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8WP3379920 Whirlpool Dishwasher Toe Panel
11Insulation
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
