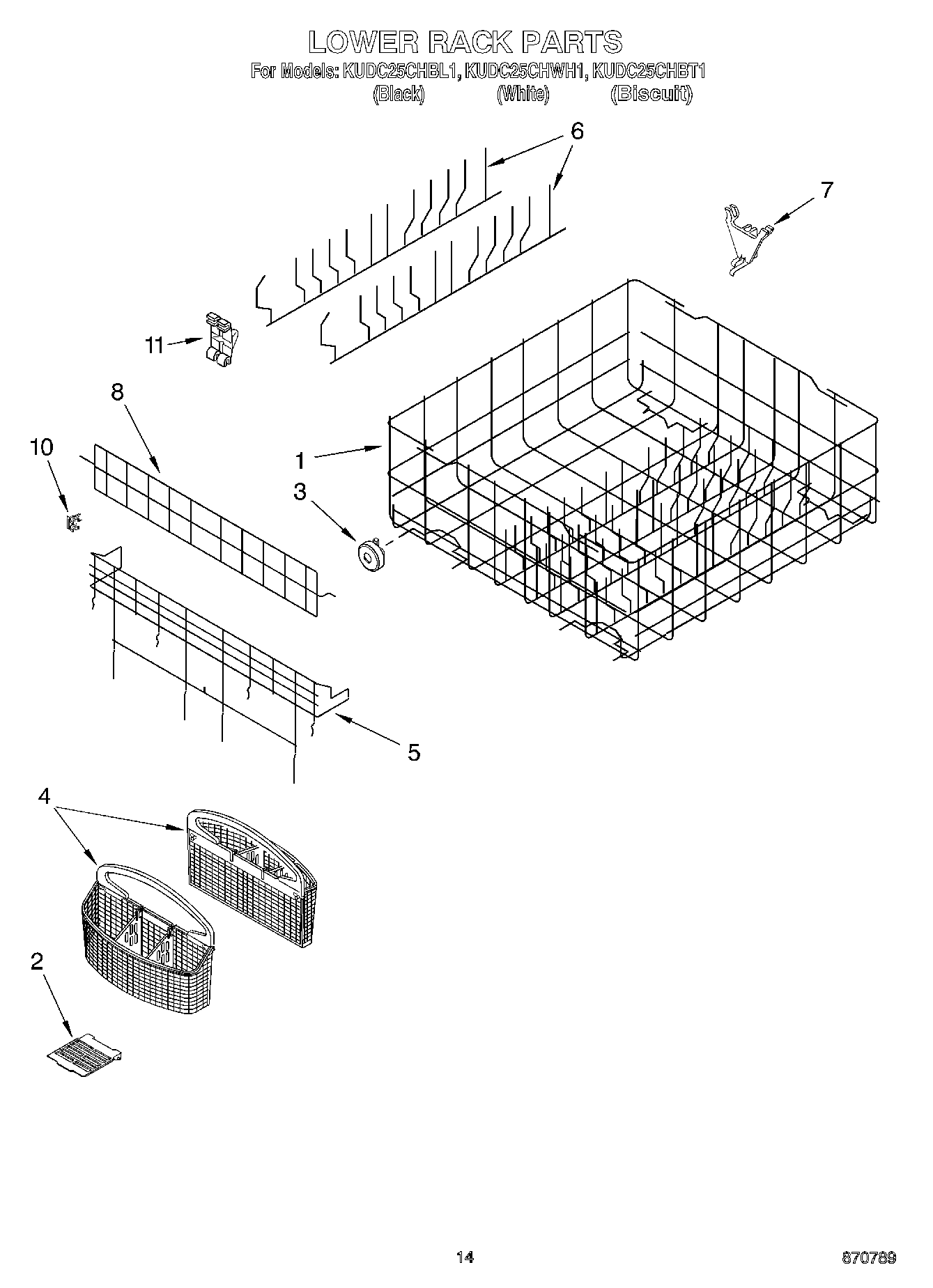

KUDC25CHBL1 11 – LOWER RACK

Written by

Products

Position	Product
1	W10134647 Whirlpool Lower Dish Rack
2	Cover, Silverware Basket
3	Wheel & Transport Assembly
4	Basket Half, Silverware
5	Extension, Side Wall
6	Flexrow (2)
7	Pivot, Folddown
8	Cupshelf
10	WP9743019 Whirlpool Dishwasher Clip
11	WP3368629 Whirlpool Dishwasher Retainer
