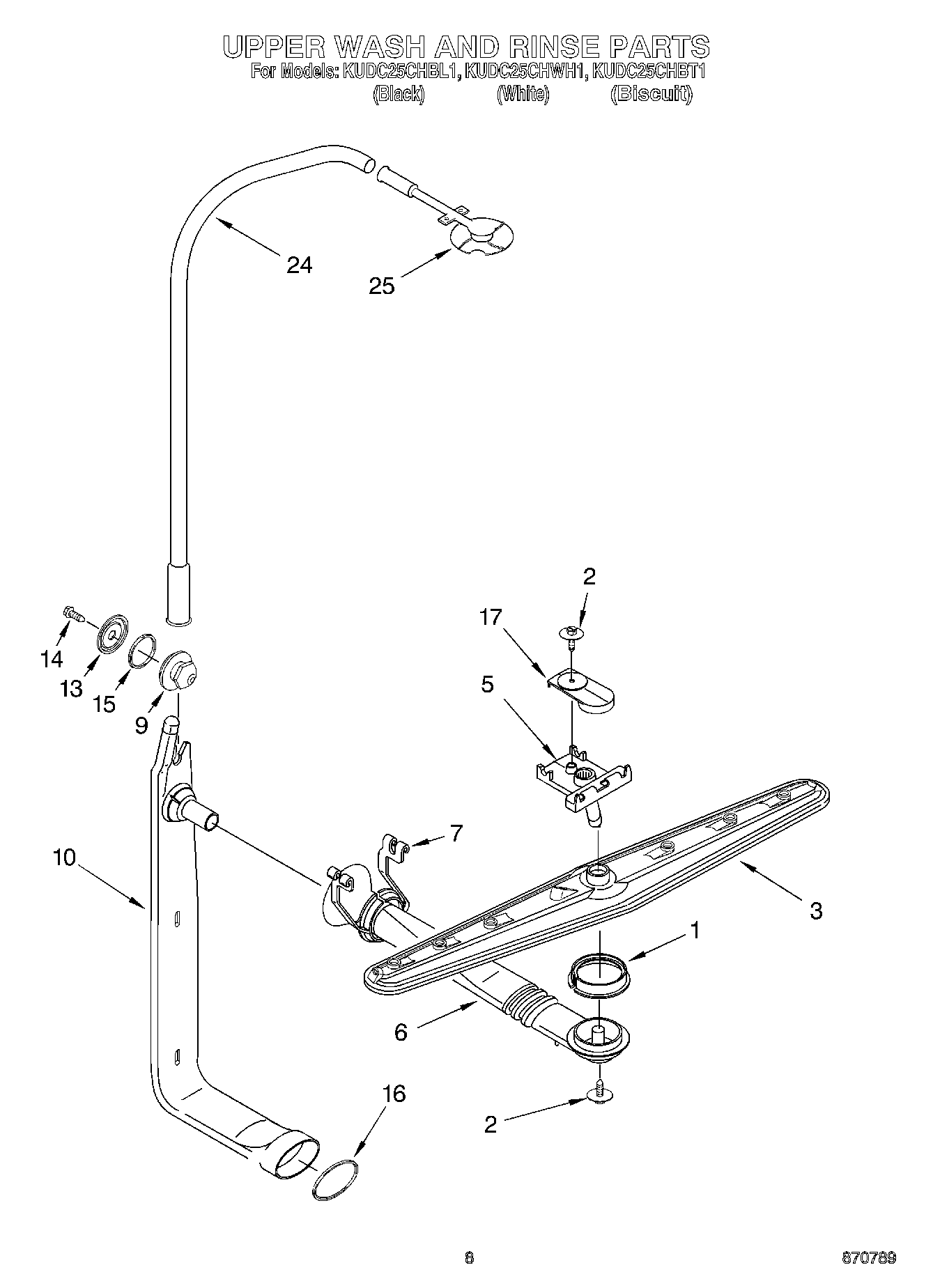

KUDC25CHWH1 07 – UPPER WASH AND RINSEadmin2025-04-26T13:00:57+00:00KUDC25CHWH1 07 – UPPER WASH AND RINSE ProductsPositionProduct1WP3376846 Whirlpool Seal2WPW10349488 Whirlpool Screw3675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly5WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount6WP3378144 Whirlpool Dishwasher Tube7WP3378186 Whirlpool Dishwasher Holder9Connector (Includes Items 13, 14 & 15)10661651 Whirlpool Dishwasher Tube13Washer14WP9740848 Whirlpool Dishwasher Screw15Gasket, Connector16Seal, Tube17WP8268812 Whirlpool Dishwasher Mounting Assembly24Tube (3rd Level)25WP3379369 Whirlpool Dishwasher Wash Assembly
