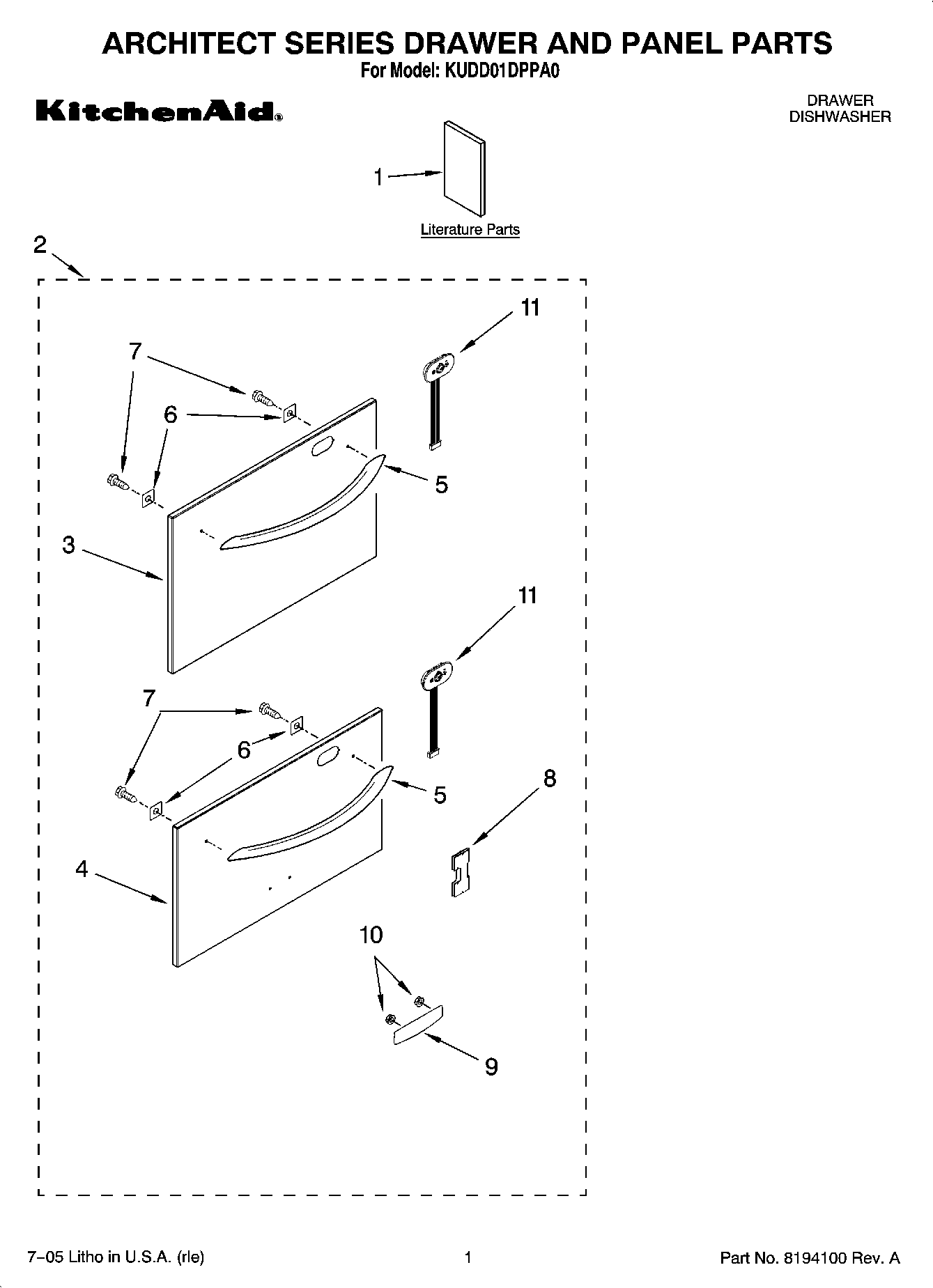

KUDD01DPPA0 01 – ARCHITECT SERIES DRAWER AND PANEL PARTS

Products

Position	Product
1	Instructions, Installation
1	Tech Sheet
1	Instructions, Operating
1	DVD
1	Energy Guide
2	Drawer Panels Complete (Stainless Steel)
2	Drawer Panels Complete (White)
2	Drawer Panels Complete (Black)
3	Panel, Drawer Upper (White)
3	Panel, Drawer Upper (Black)
3	Panel, Drawer Upper (Stainless Steel)
4	Panel, Drawer Lower (White)
4	Panel, Drawer Lower (Black)
4	Panel, Drawer Lower (Stainless Steel)
5	HANDLE
5	Handle (White)
5	Handle (Black)
6	Plate, Backing
7	Screw
8	WP8269016 Whirlpool Clip Assembly
9	Nameplate (Black)
9	Nameplate (White)
10	WP2004333 Whirlpool Refrigerator Nut
11	Control (White)
11	Control (Black)
11	Control (Grey)
