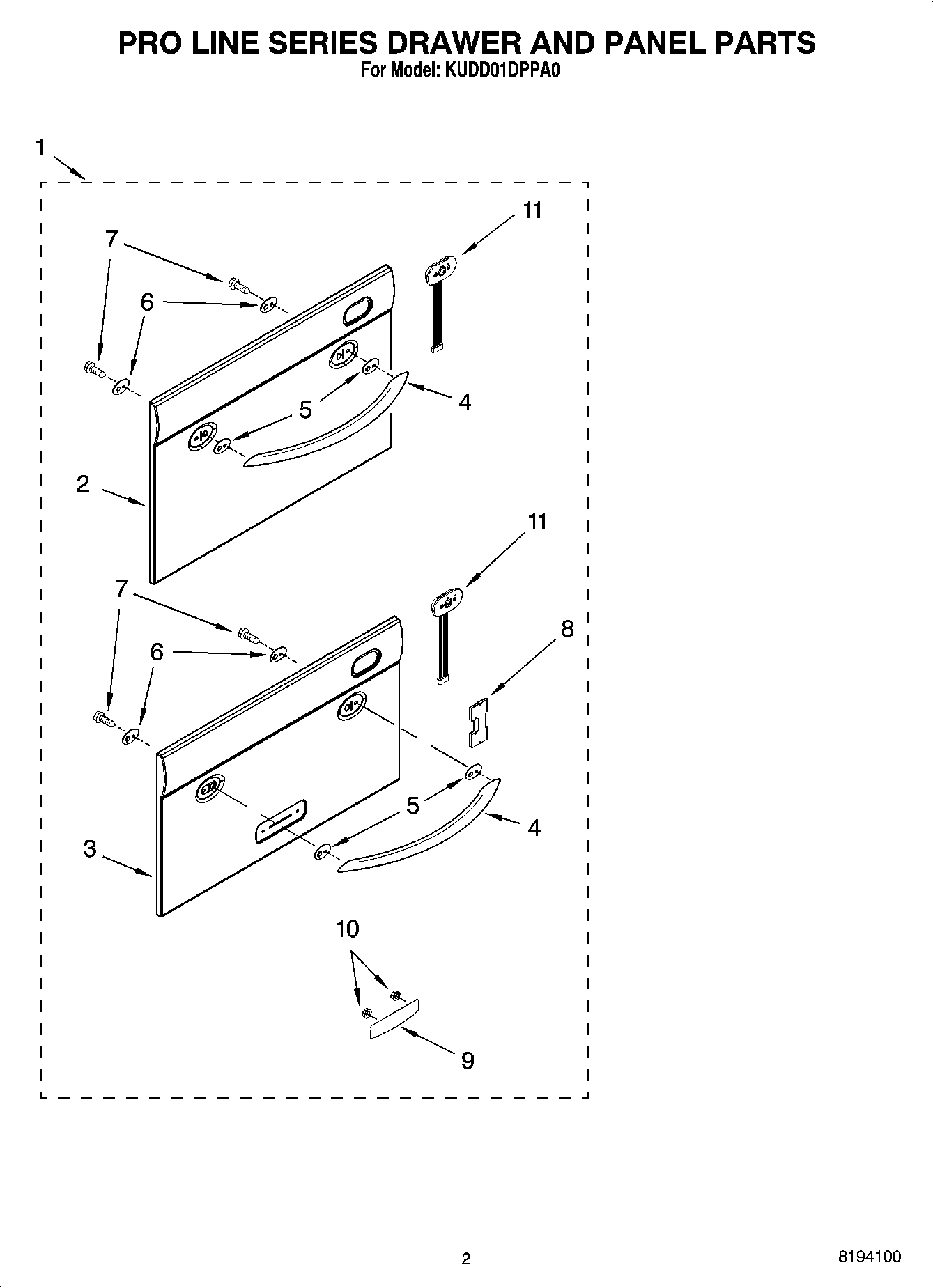

KUDD01DPPA0 02 – PRO LINE SERIES DRAWER AND PANEL PARTS

Products

Position	Product
1	Drawer Panels Complete (Meteorite)
1	Drawer Panels Complete (Stainless Steel)
2	Panel, Drawer Upper (Meteorite)
2	Panel, Drawer Upper (Stainless Steel)
3	Panel, Drawer Lower (Meteorite)
3	Panel, Drawer Lower (Stainless Steel)
4	Handle (Stainless Steel)
5	Plate, Backing (Front)
6	Plate, Backing (Rear)
7	Screw
8	WP8269016 Whirlpool Clip Assembly
9	Nameplate
10	WP2004333 Whirlpool Refrigerator Nut
11	CONTROL
