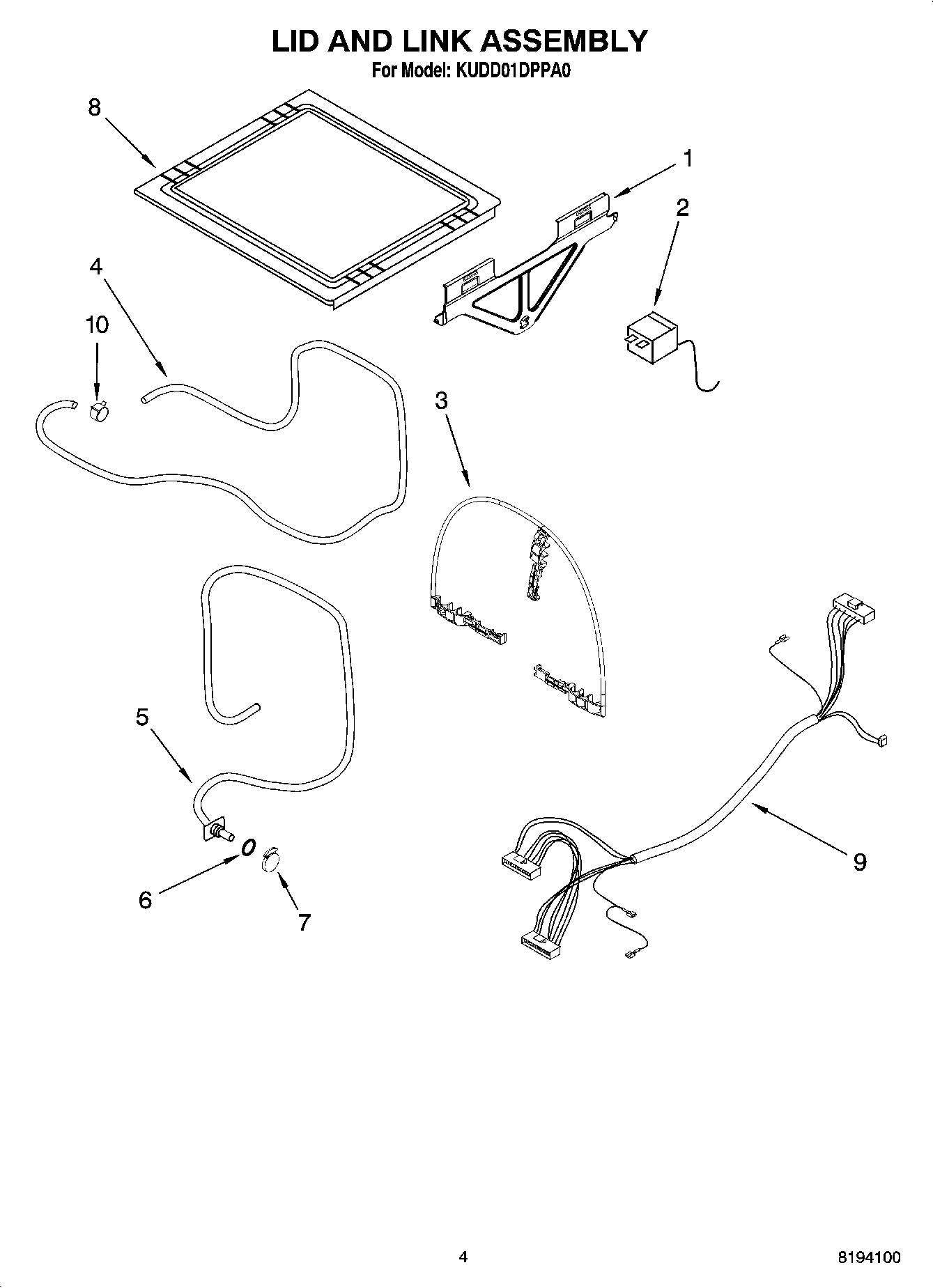

KUDD01DPPA0 04 – LID AND LINK ASSEMBLY

Products

PositionProduct
1Yoke, Lid (Right)
1Yoke, Lid (Left)
2Actuator, Lid (Bottom Drawer)
2Actuator, Lid (Top Drawer)
3Support, Link
4Hose, Fill (Top Drawer)
4Hose, Fill (Bottom Drawer)
5Hose, Drain
6O-RING
7WP8194083 Whirlpool Dishwasher Check Valve
8Lid Assembly
9Wiring Harness (Upper Cabinet)
9Wiring Harness (Lower Cabinet)
10Clamp, Hose
