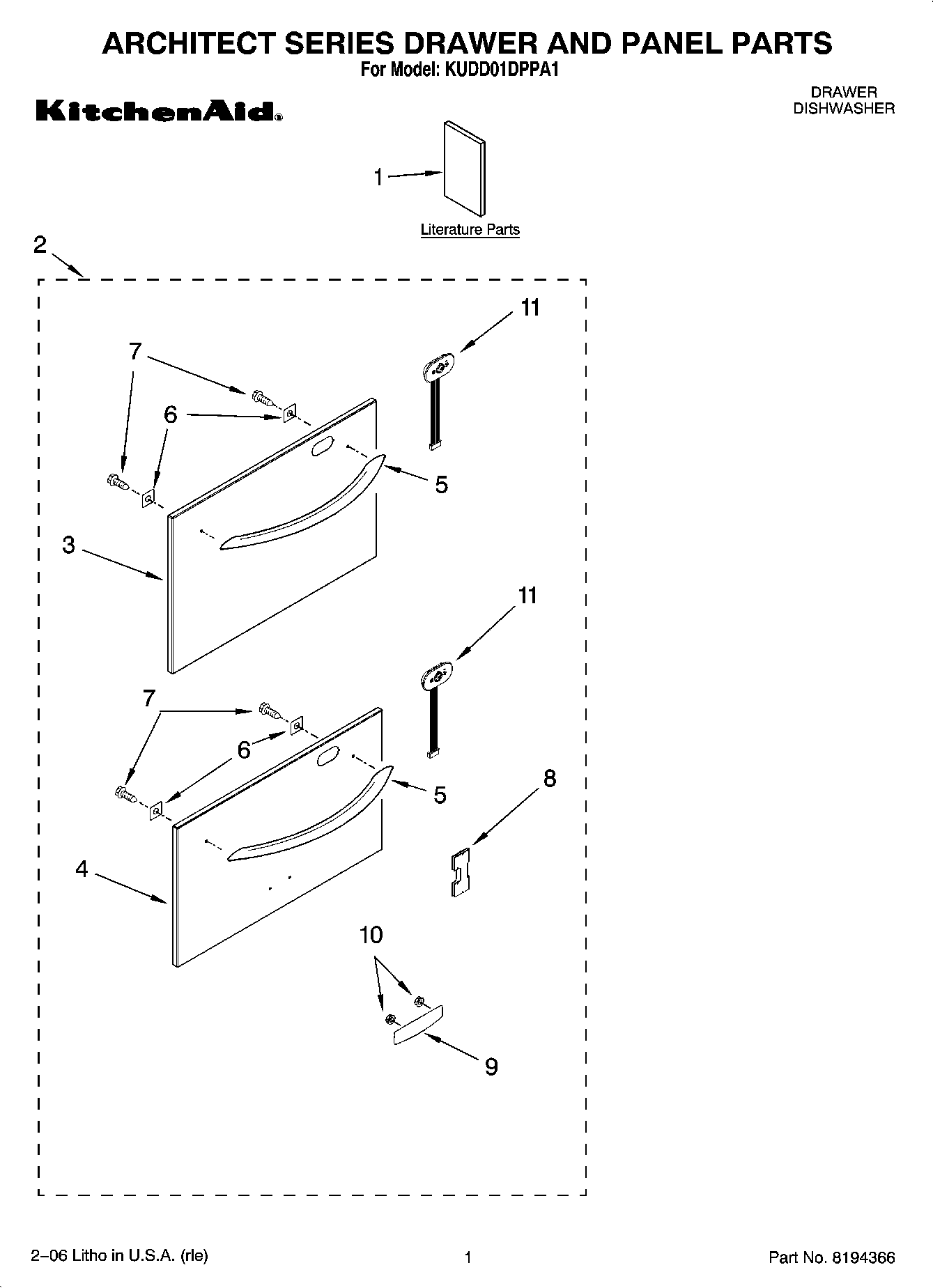

KUDD01DPPA1 01 – ARCHITECT SERIES DRAWER AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Guide, Use & Care
1Tech Sheet
1Instructions, Operating
1DVD
1Energy Guide
2Drawer Panels Complete (Panel Ready)
2Drawer Panels Complete (White)
2Drawer Panels Complete (Black)
2Drawer Panels Complete (Stainless Steel)
3Panel, Drawer Upper (White)
3Panel, Drawer Upper (Black)
3Panel, Drawer Upper (Stainless Steel)
4Panel, Drawer Lower (Stainless Steel)
4Panel, Drawer Lower (Black)
4Panel, Drawer Lower (White)
5Handle (White)
5HANDLE
6Plate, Backing
7Screw
8WP8269016 Whirlpool Clip Assembly
9Handle (Black)
9Nameplate (White)
10WP2004333 Whirlpool Refrigerator Nut
11Control (Grey)
11Control (White)
11Control (Black)
