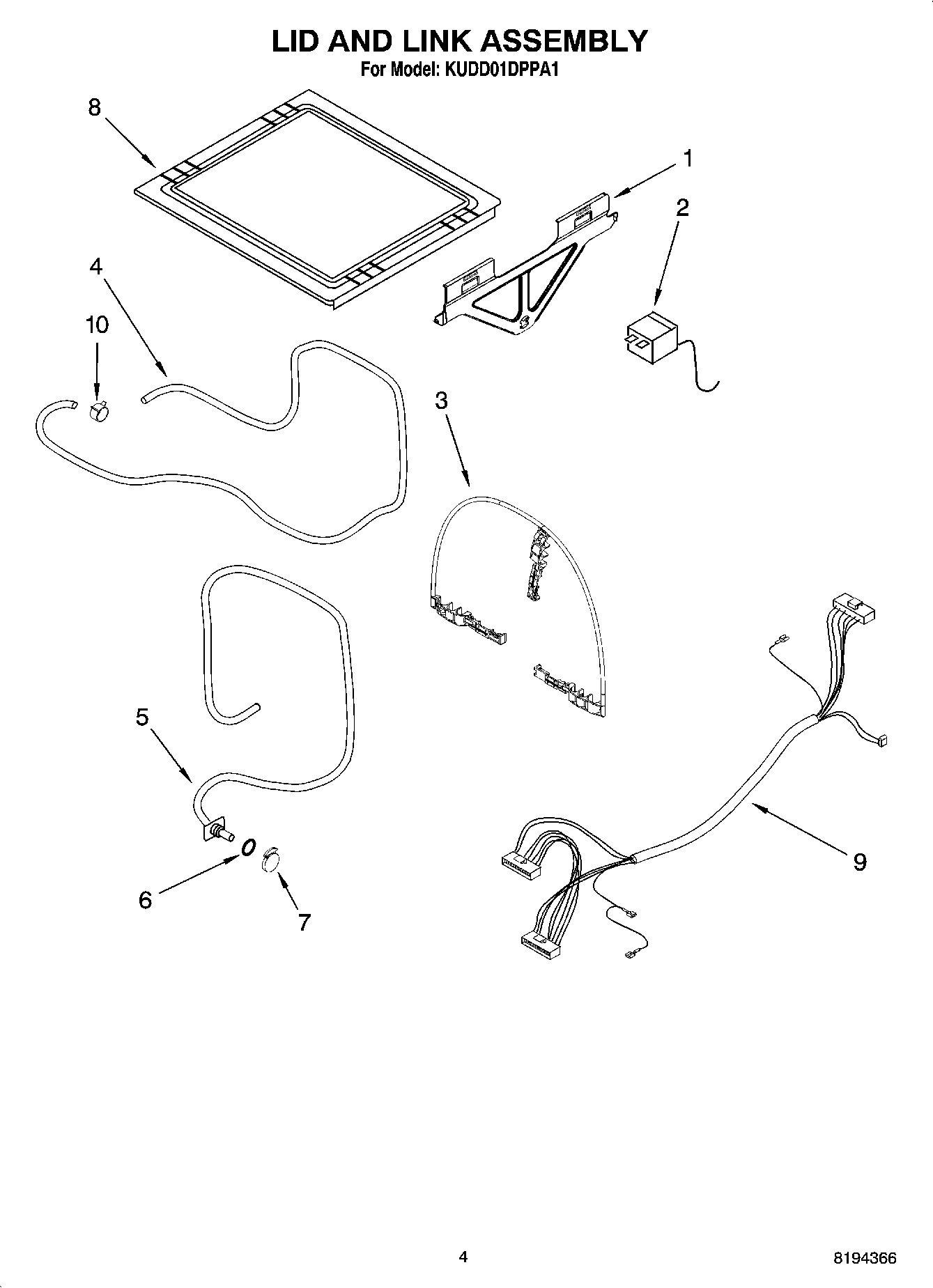

KUDD01DPPA1 04 – LID AND LINK ASSEMBLY

Products

Position	Product
1	Yoke, Lid (Right)
1	Yoke, Lid (Left)
2	Actuator, Lid (Top Drawer)
2	Actuator, Lid (Bottom Drawer)
3	Support, Link
4	Hose, Fill (Bottom Drawer)
4	Hose, Fill (Top Drawer)
5	Hose, Drain
6	O-RING
7	WP8194083 Whirlpool Dishwasher Check Valve
8	Lid Assembly
9	Wiring Harness (Upper Cabinet)
9	Wiring Harness (Lower Cabinet)
10	Clamp, Hose
