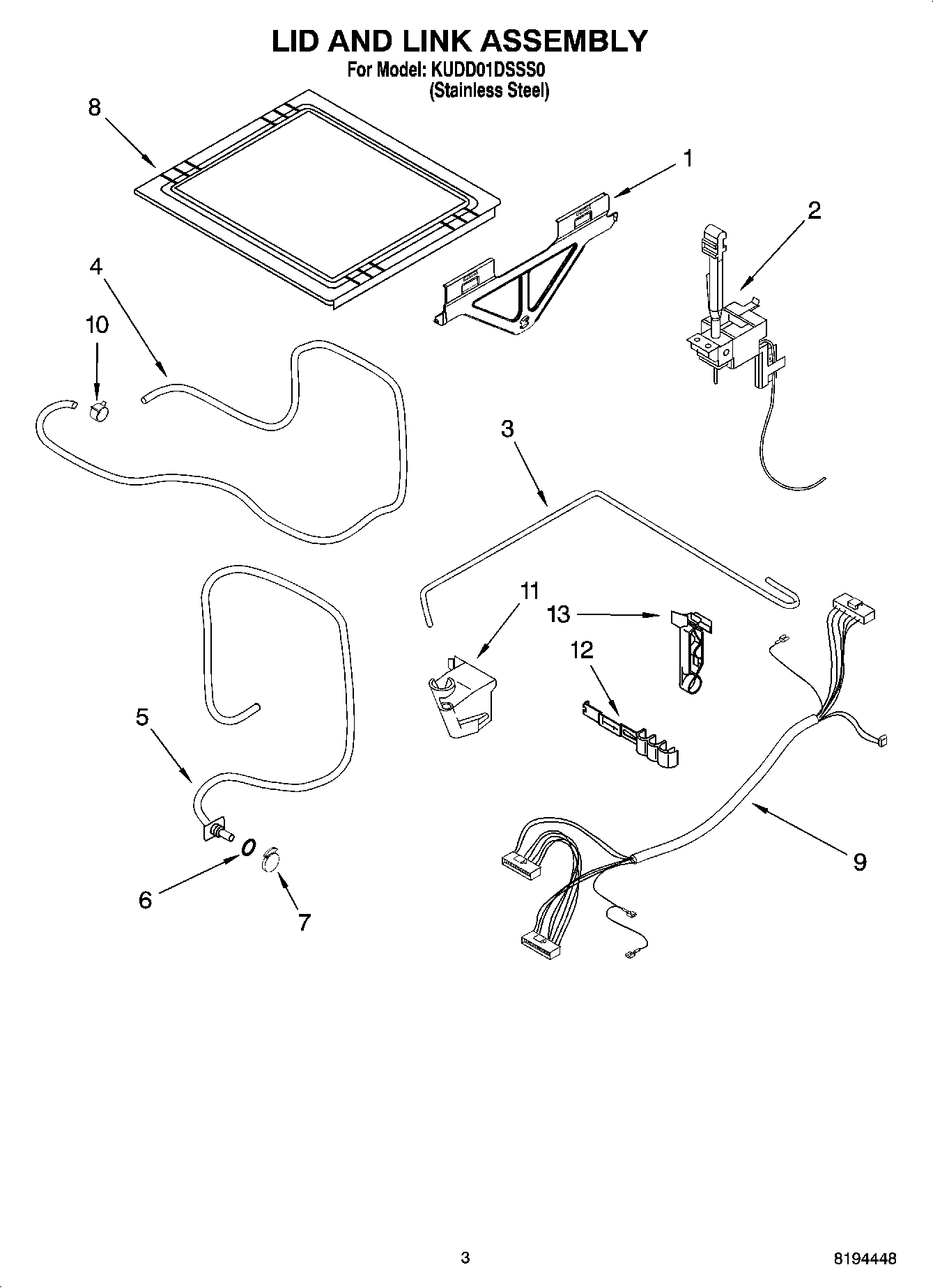

KUDD01DSSS0 03 – LID AND LINK ASSEMBLYadmin2025-04-26T13:03:03+00:00KUDD01DSSS0 03 – LID AND LINK ASSEMBLY
Products
| Position | Product |
|---|
| 1 | Yoke, Lid (Left) |
| 1 | Yoke, Lid (Right) |
| 2 | Actuator, Lid (Top Drawer) |
| 2 | Actuator, Lid (Bottom Drawer) |
| 3 | Rod, Link Support |
| 4 | Hose, Fill (Top Drawer) |
| 4 | Hose, Fill (Bottom Drawer) |
| 5 | Hose, Drain |
| 6 | O-RING |
| 7 | WP8194083 Whirlpool Dishwasher Check Valve |
| 8 | Lid Assembly |
| 9 | Wiring Harness (Lower Cabinet) |
| 9 | Wiring Harness (Upper Cabinet) |
| 10 | Clamp, Hose |
| 11 | Bracket |
| 12 | Clip |
| 13 | Clip, Link |
