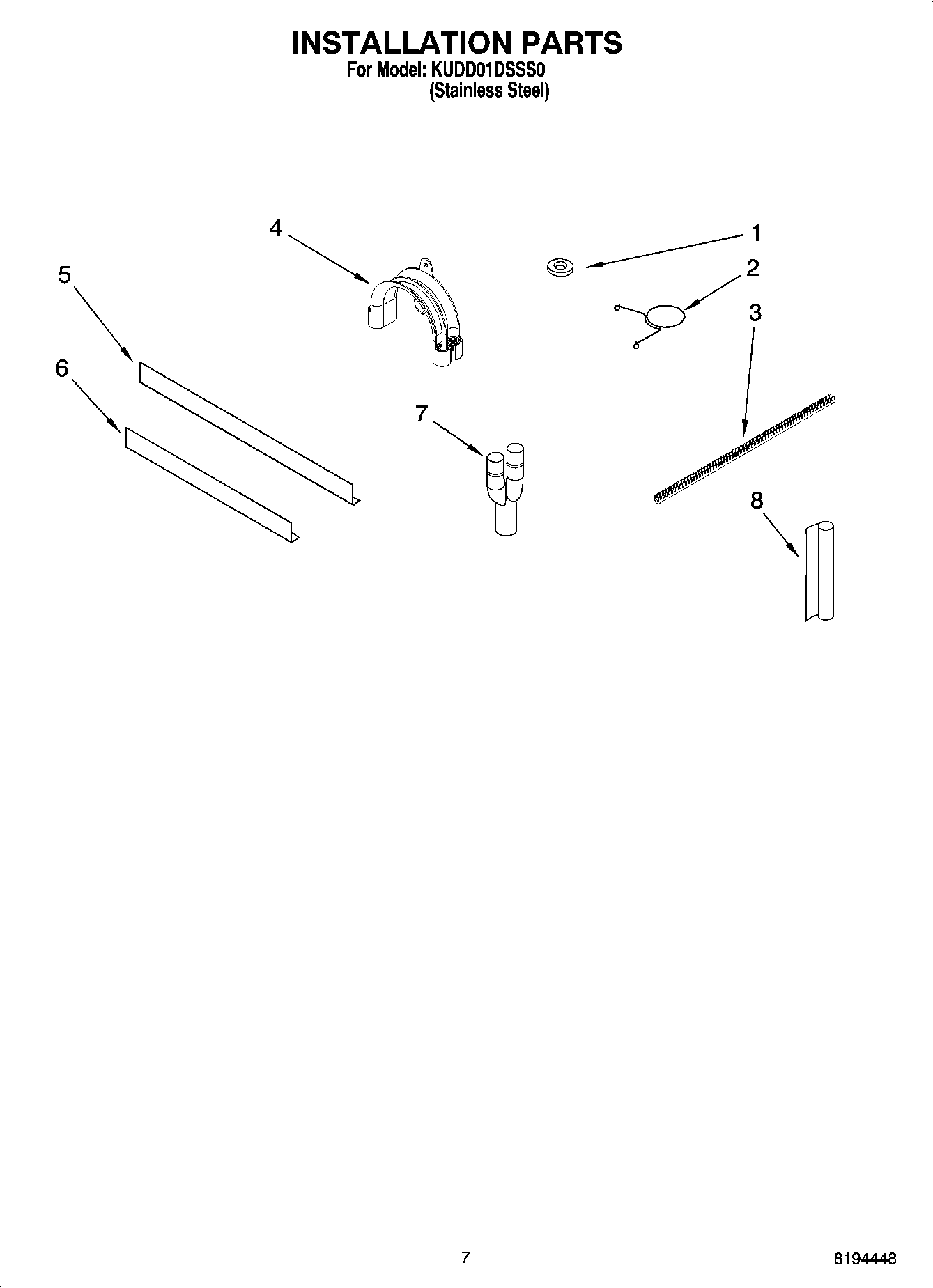

KUDD01DSSS0 06 – INSTALLATION PARTS

Written by

Products

Position	Product
1	Washer
2	Barrier, Moisture Undercounter
3	Protector, Edge
4	Support, Drain Hose
5	Seal, Cabinet Side
6	Seal, Cabinet Top
7	Connector, Drain
8	Extension Kit, Drain Hose
8	Barrier, Moisture Undercounter
8	Optional Parts Not Included
