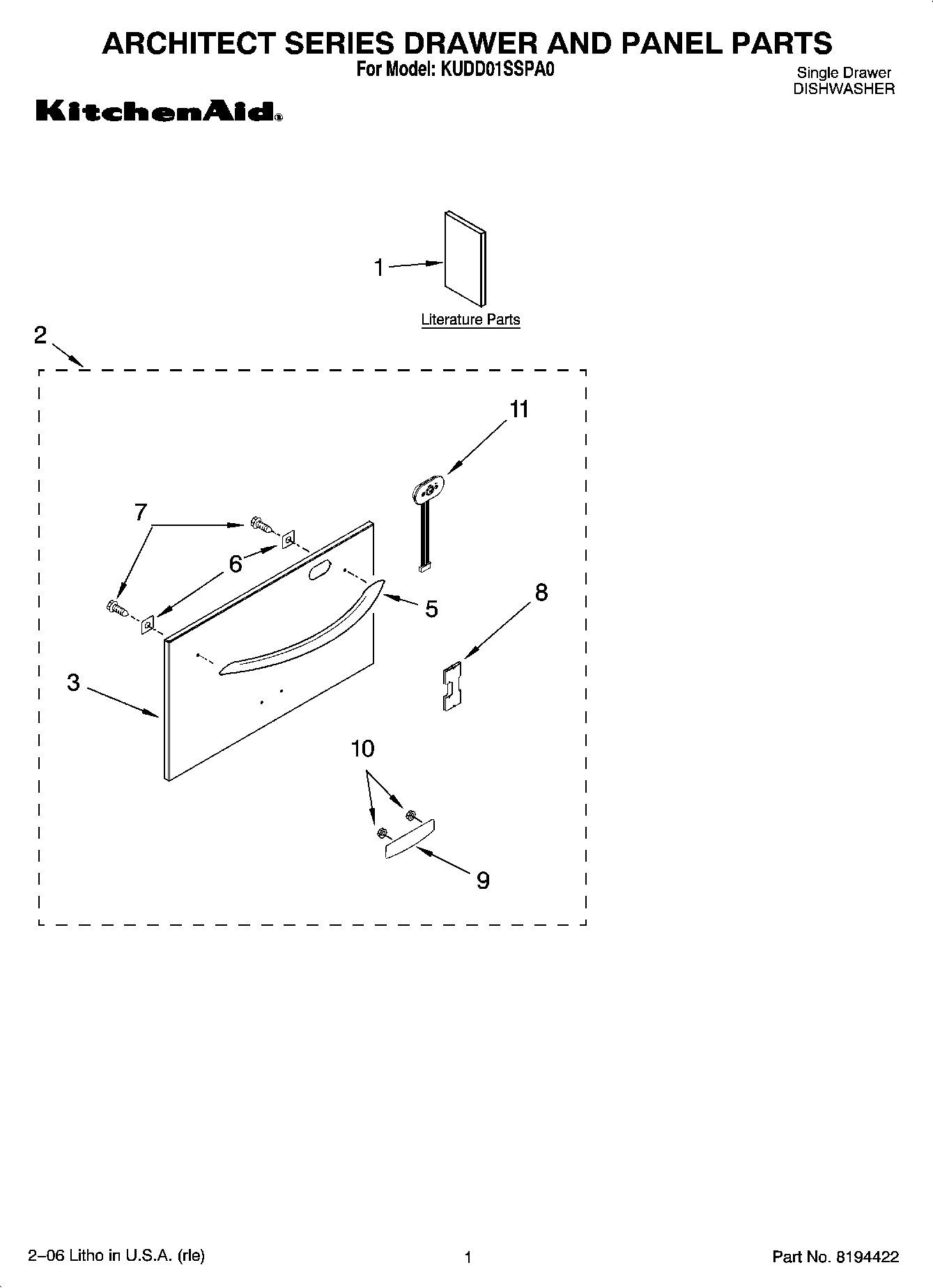

KUDD01SSPA0 01 – ARCHITECT SERIES DRAWER AND PANEL PARTS

KUDD01SSPA0 01 – ARCHITECT SERIES DRAWER AND PANEL PARTS

Written by

in

KUDD01SSPA0 01 – ARCHITECT SERIES DRAWER AND PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Energy Guide
1Instructions, Installation
1Instructions, Panel Installation
1Guide, Use & Care
1DVD
2Drawer Panels Complete (Stainless Steel)
2Drawer Panels Complete (Black)
2Drawer Panels Complete (Custom Panel Ready)
2Drawer Panels Complete (White)
3Panel, Drawer (White)
3Panel, Drawer (Black)
3Panel, Drawer (Stainless Steel)
5Handle (Black)
5Handle (White)
5HANDLE
6Plate, Backing
7Screw
8WP8269016 Whirlpool Clip Assembly
9Nameplate (White)
9Nameplate (Black)
10WP2004333 Whirlpool Refrigerator Nut
11Control (Black)
11Control (Grey)
11Control (White)
