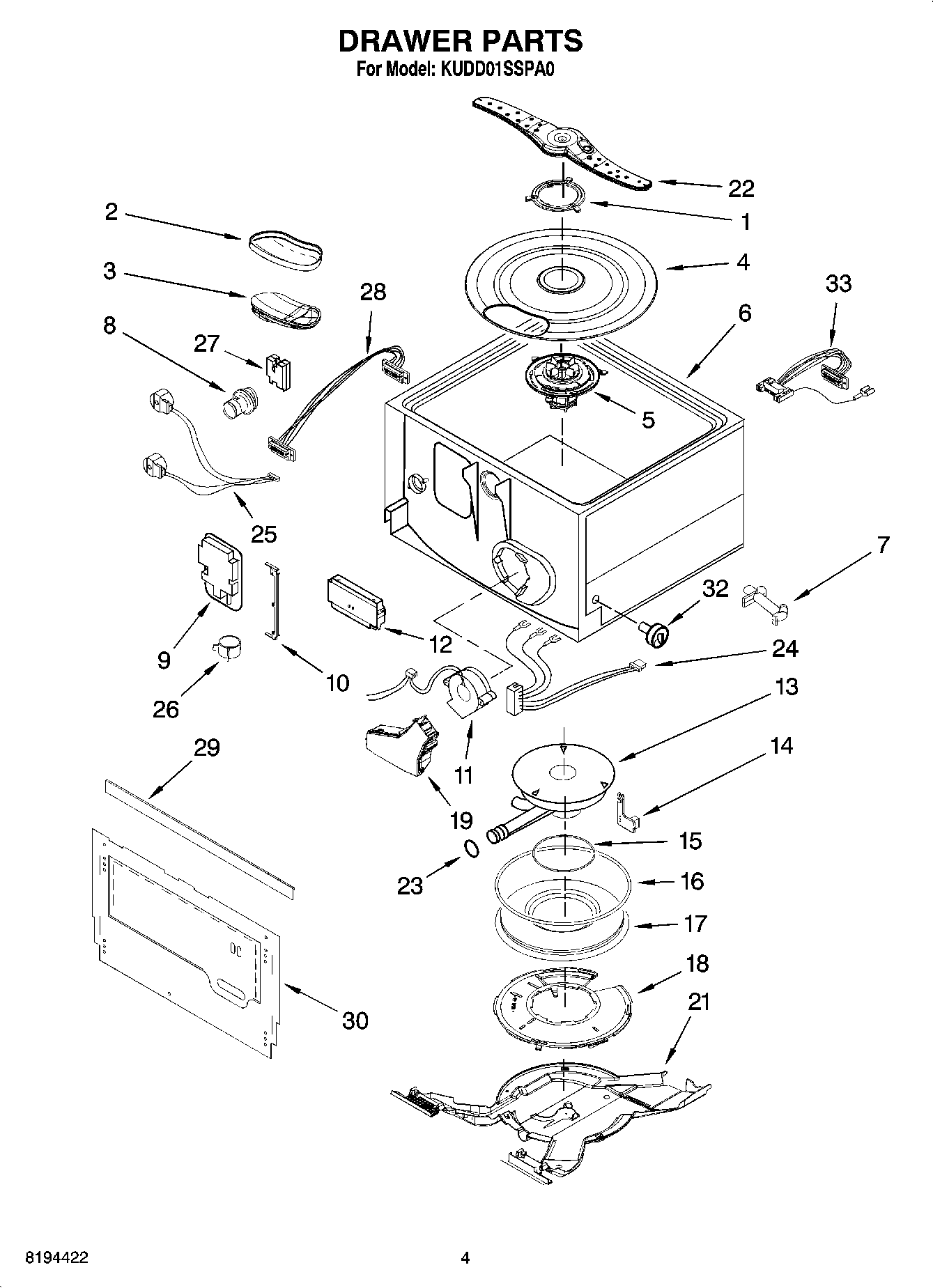

KUDD01SSPA0 04 – DRAWER PARTSadmin2025-04-26T13:06:29+00:00KUDD01SSPA0 04 – DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | Nut, Lock Filter Plate |
| 2 | Trim, Filter |
| 3 | Filter |
| 4 | Filter, Plate |
| 5 | WP8194092 Whirlpool Dishwasher Rotor |
| 6 | Drawer |
| 7 | Tube |
| 8 | Cap, Rinse Aid |
| 9 | Dispenser, Detergent |
| 10 | Bracket, Dipenser |
| 11 | Fan Assembly |
| 12 | Shield |
| 13 | WP8194101 Whirlpool Dishwasher Pump Motor |
| 14 | Hall Effect |
| 15 | Seal, Motor Housing |
| 16 | Seal, Heater Plate/Tub |
| 17 | Heater, Plate (Also Order Items 15 & 16) |
| 18 | Nut, Locking |
| 19 | Duct, Top |
| 21 | Protector, Wiring |
| 22 | Spray-Arm |
| 23 | O-RING |
| 24 | Wiring Harness Motor |
| 25 | Wiring Harness Dispenser |
| 26 | Clamp, Hose |
| 27 | PROTECTOR |
| 28 | Wiring Harness, Protector |
| 29 | SEAL |
| 30 | Panel Support (Drawer, Upper) |
| 32 | Pin, Drawer |
| 33 | Wiring Harness, Control |
