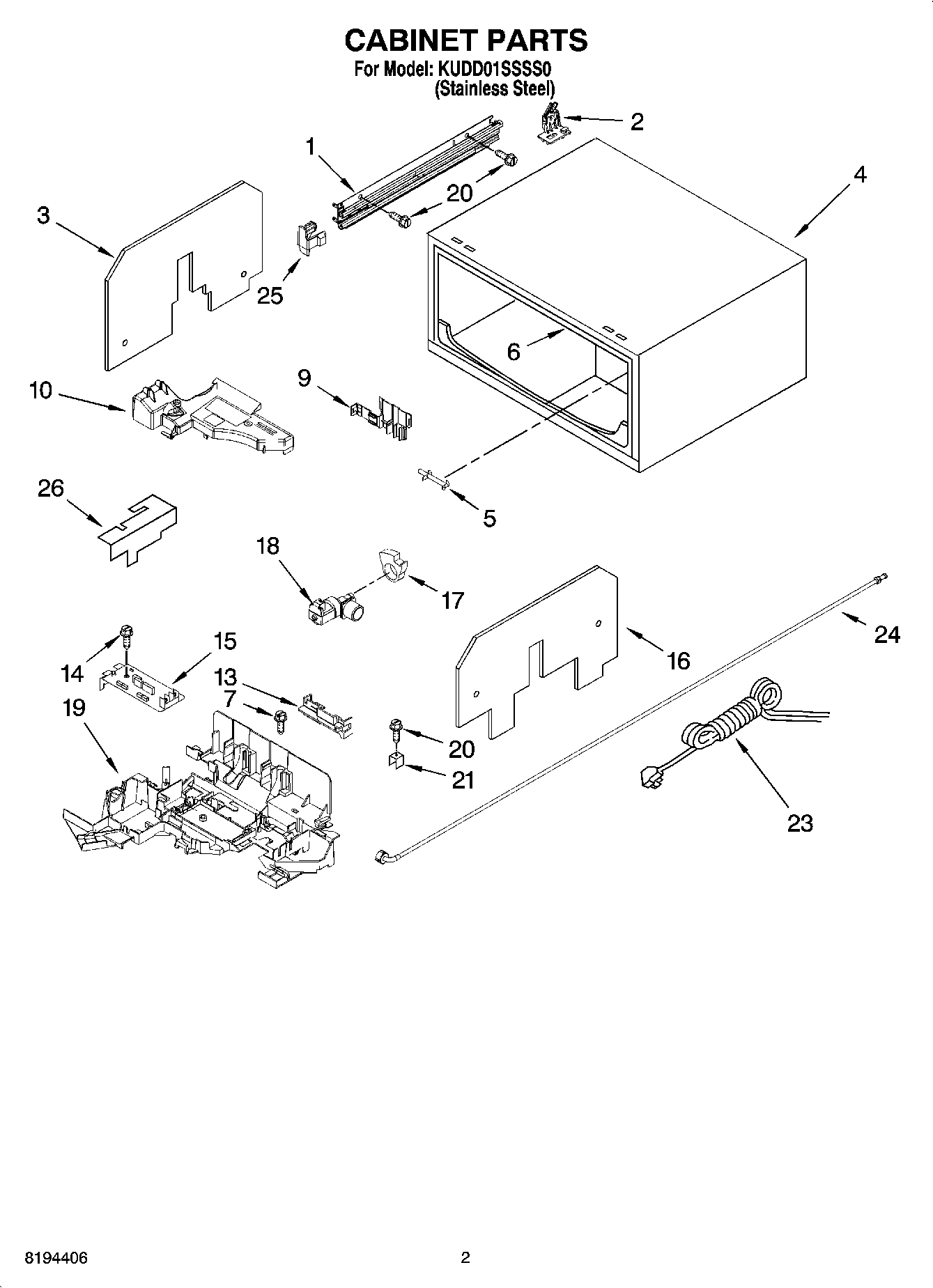

KUDD01SSSS0 02 – CABINET PARTSadmin2025-04-26T13:03:18+00:00KUDD01SSSS0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Track (Left Hand) |
| 1 | Track (Right Hand) |
| 2 | Latch, Drawer (Right Hand) |
| 2 | Latch, Drawer (Left Hand) |
| 3 | Insulation, Cabinet |
| 4 | Cabinet |
| 5 | Prisim |
| 6 | Trim, Seal |
| 7 | Screw |
| 9 | Mount, Link Top |
| 10 | Module, Lid Cabinet |
| 13 | Retainer, Link |
| 14 | Screw |
| 15 | Board, Circuit |
| 16 | Insulation, Cabinet |
| 17 | CLAMP |
| 18 | Valve, Inlet |
| 19 | Module, Cabinet |
| 20 | Screw |
| 21 | Strain Relief |
| 23 | Cord, Power |
| 24 | Hose-Fill |
| 25 | Clip, Drawer (Right Hand) |
| 25 | Clip, Drawer (Left Hand) |
| 26 | SHIELD |
