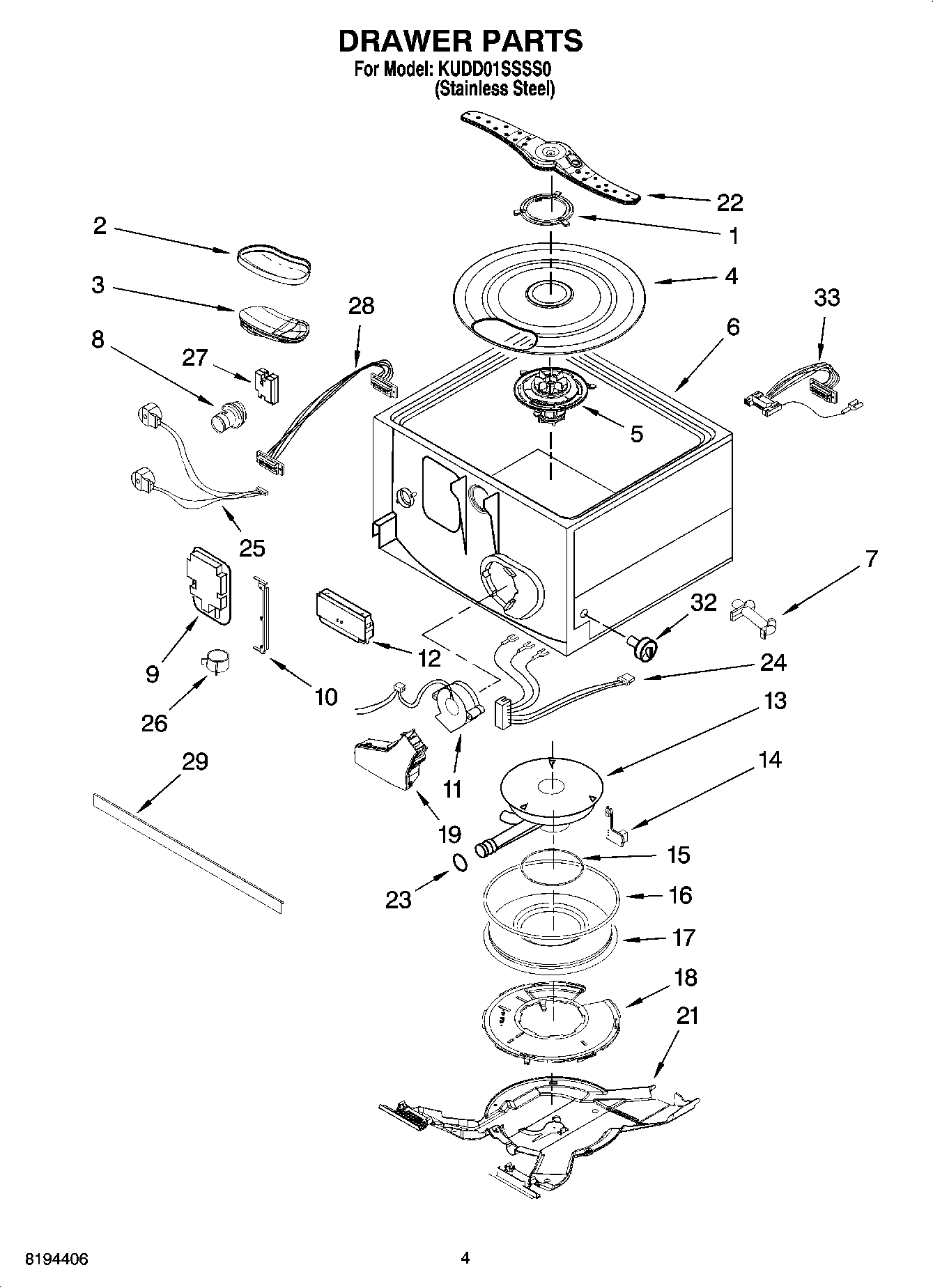

KUDD01SSSS0 04 – DRAWER PARTS

Products

Position	Product
1	Nut, Lock Filter Plate
2	Trim, Filter
3	Filter
4	Filter, Plate
5	WP8194092 Whirlpool Dishwasher Rotor
6	Drawer
7	Tube
8	Cap, Rinse Aid
9	Dispenser, Detergent
10	Bracket, Dipenser
11	Fan Assembly
12	Shield
13	WP8194101 Whirlpool Dishwasher Pump Motor
14	Hall Effect
15	Seal, Motor Housing
16	Seal, Heater Plate/Tub
17	Heater, Plate (Also Order Items 15 & 16)
18	Nut, Locking
19	Duct, Top
21	Protector, Wiring
22	Spray-Arm
23	O-RING
24	Wiring Harness Motor
25	Wiring Harness Dispenser
26	Clamp, Hose
27	PROTECTOR
28	Wiring Harness, Protector
29	SEAL
32	Pin, Drawer
33	Wiring Harness, Control
