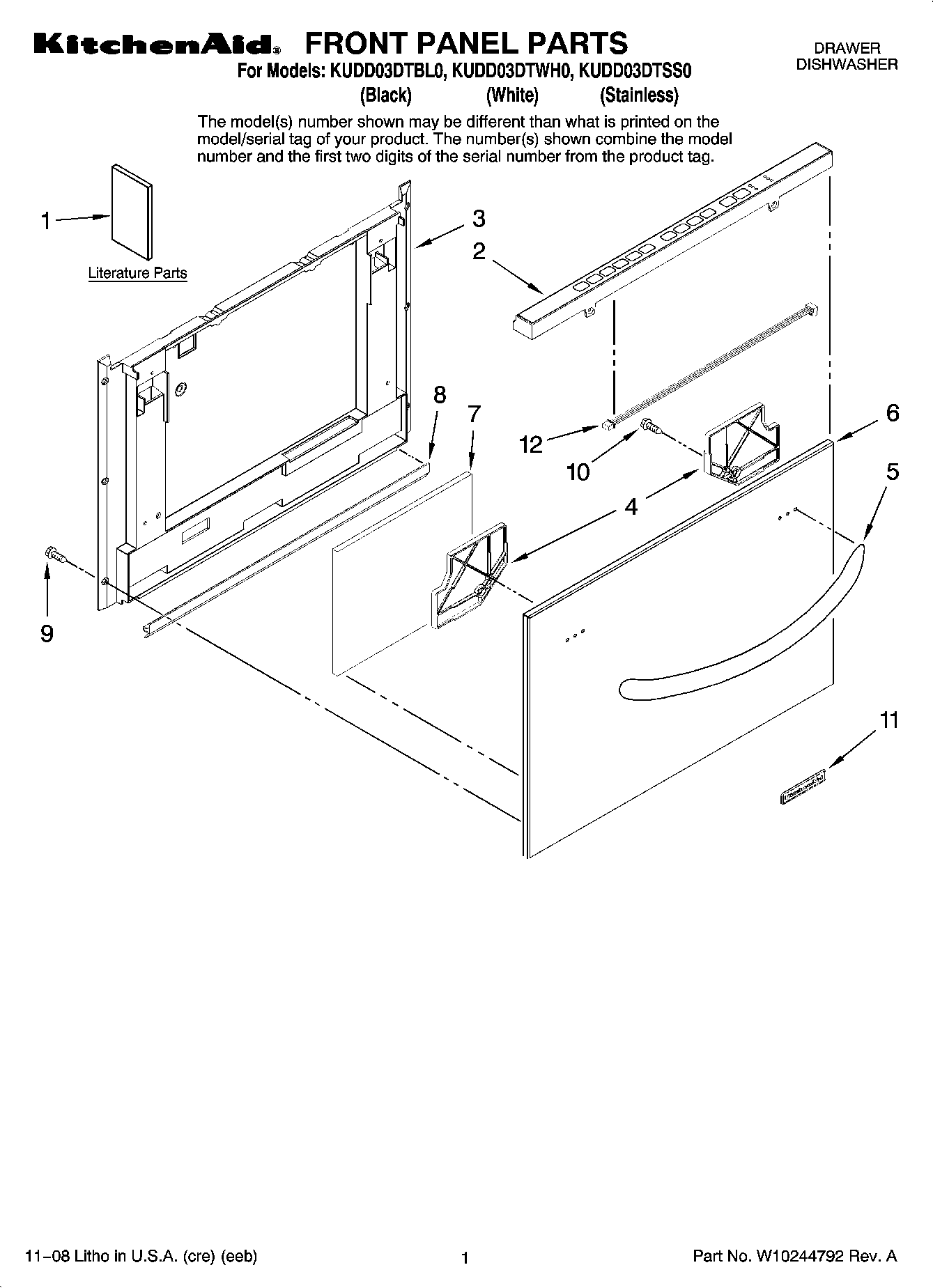

KUDD03DTSS0 01 – FRONT PANEL PARTSadmin2025-04-26T13:01:58+00:00KUDD03DTSS0 01 – FRONT PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Instructions, Installation |
| 1 | Energy Guide |
| 2 | Control Panel (Includes User Interface) (Black) |
| 3 | Intermediate Panel (Upper) |
| 3 | W10117988 Whirlpool Dishwasher Inner Door |
| 4 | Anchor Panel |
| 5 | Handle, Drawer (Black) |
| 5 | Handle, Drawer (White) |
| 5 | Handle, Drawer (Stainless) |
| 6 | Panel, Drawer (Upper) (Nameplate not Included) (Stainless) |
| 6 | Panel, Drawer (Upper) (Nameplate not Included) (Black) |
| 6 | Panel, Drawer (Lower) (Also Order Item 11) (Black) |
| 6 | Panel, Drawer (Upper) (Nameplate not Included) (White) |
| 6 | Panel, Drawer (Lower) (Also Order Item 11) (White) |
| 6 | Panel, Drawer (Lower) (Also Order Item 11) (Stainless Steel) |
| 7 | Pad, EPS |
| 8 | WPL 99003716 |
| 9 | WPY912620 Whirlpool Dishwasher Screw |
| 10 | WPW10001180 Whirlpool Refrigerator Screw |
| 11 | Badge (White) |
| 11 | Badge (Stainless) |
| 11 | Badge (Black) |
| 12 | W10117969 Whirlpool Dishwasher Wire Harness |
