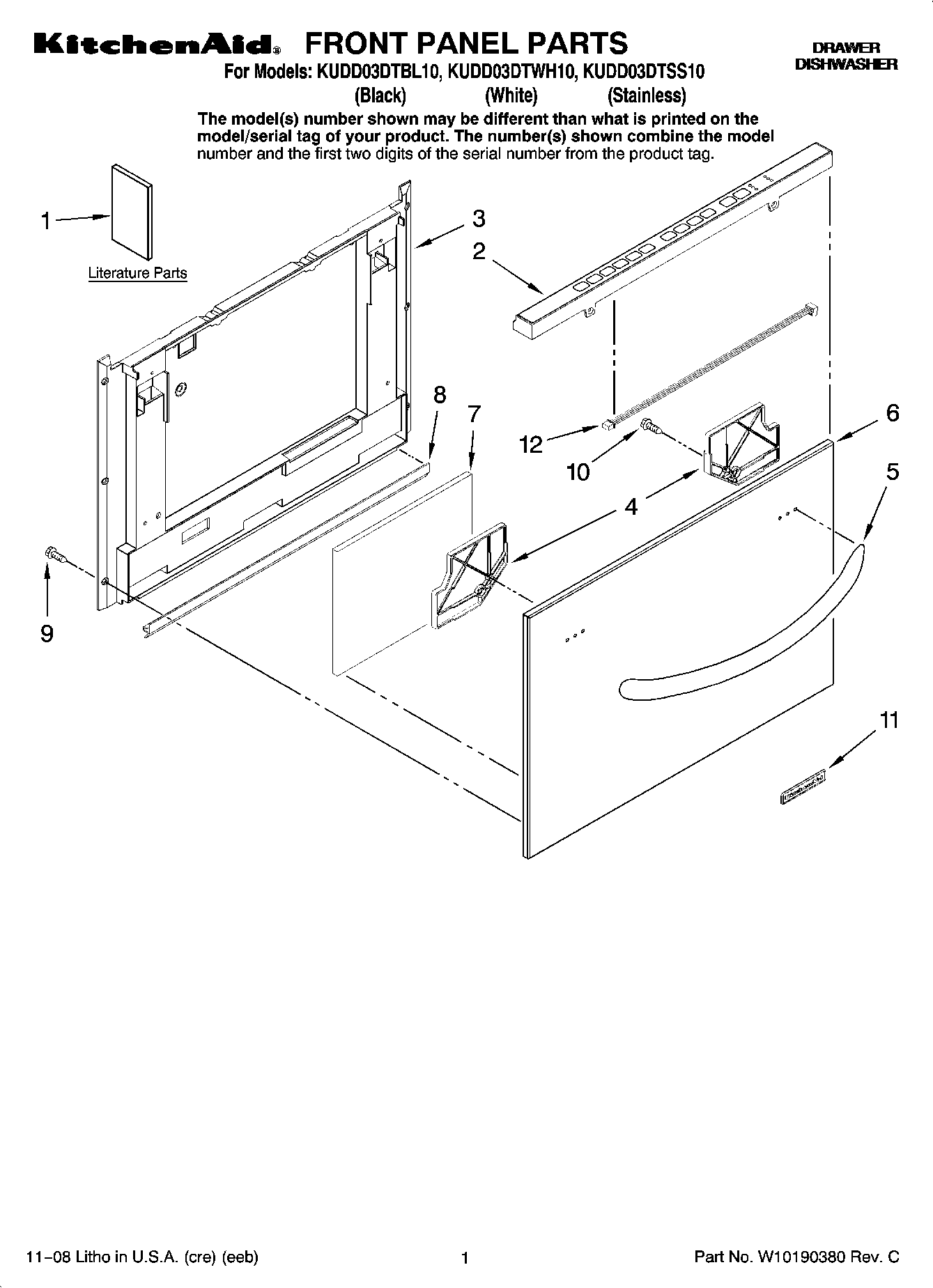

KUDD03DTWH10 01 – FRONT PANEL PARTS

Products

PositionProduct
1Energy Guide
1Instructions, Installation
2Control Panel (Includes User Interface) (Black)
3Intermediate Panel (Upper)
3W10117988 Whirlpool Dishwasher Inner Door
4Anchor Panel
5Handle, Drawer (Black)
5Handle, Drawer (Stainless)
5Handle, Drawer (White)
6Panel, Drawer (Lower) (Also Order Item 11) (Black)
6Panel, Drawer (Upper) (Nameplate not Included) (Stainless)
6Panel, Drawer (Upper) (Nameplate not Included) (Black)
6Panel, Drawer (Lower) (Also Order Item 11) (Stainless Steel)
6Panel, Drawer (Upper) (Nameplate not Included) (White)
6Panel, Drawer (Lower) (Also Order Item 11) (White)
7Pad, EPS
8WPL 99003716
9WPY912620 Whirlpool Dishwasher Screw
10WPW10001180 Whirlpool Refrigerator Screw
11Badge (White)
11Badge (Stainless)
11Badge (Black)
12W10117969 Whirlpool Dishwasher Wire Harness
