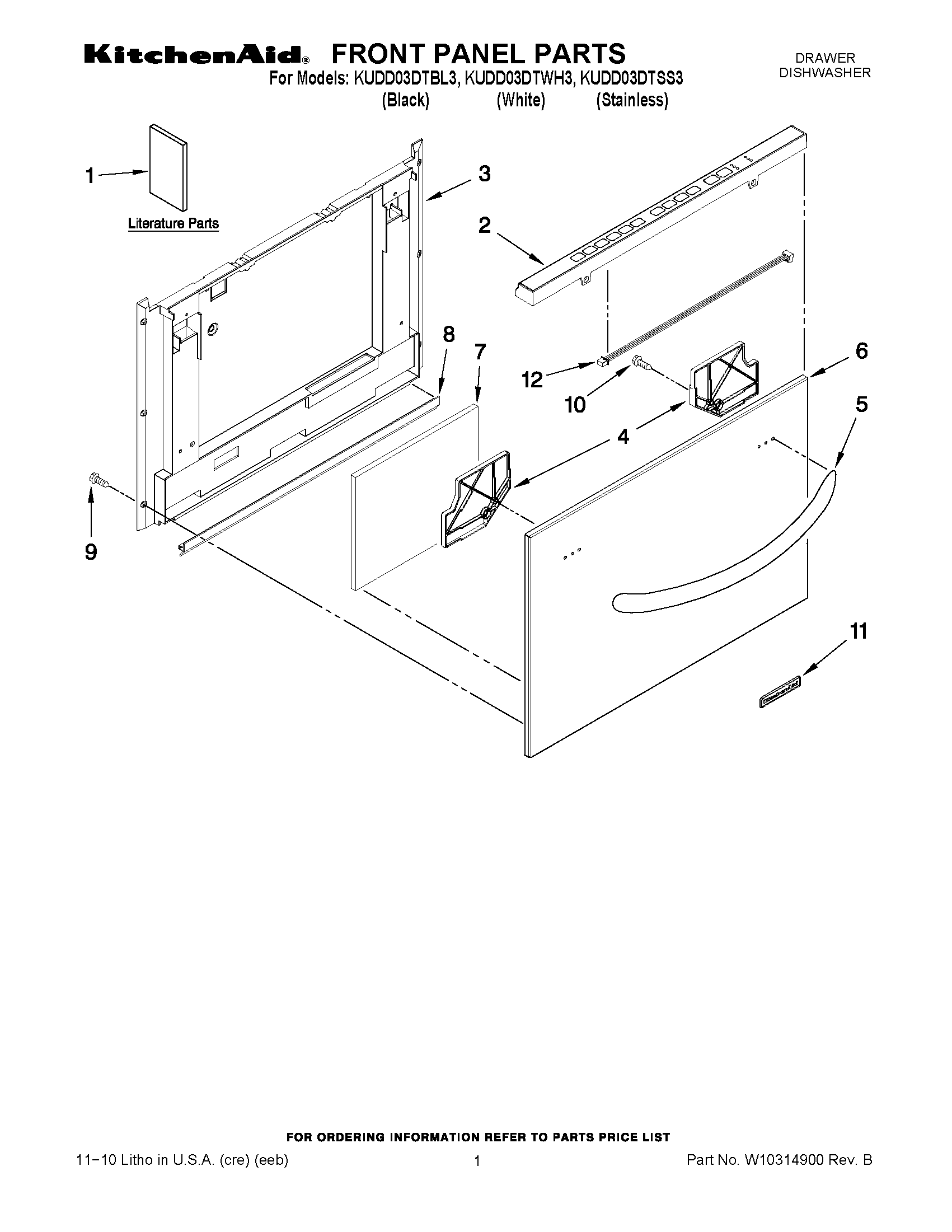

KUDD03DTWH3 01 – FRONT PANEL PARTS

KUDD03DTWH3 01 – FRONT PANEL PARTS

Written by

in

KUDD03DTWH3 01 – FRONT PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
2Control Panel (Includes User Interface) (Black)
3W10117988 Whirlpool Dishwasher Inner Door
3Intermediate Panel (Upper)
4ANCHOR PANEL
5Handle, Drawer (Black)
5Handle, Drawer (White)
5Handle, Drawer (Stainless)
6Panel, Drawer (Upper) (Nameplate not Included) (Stainless)
6Panel, Drawer (Upper) (Nameplate not Included) (Black)
6Panel, Drawer (Lower) (Also Order Item 11) (Black)
6Panel, Drawer (Upper) (Nameplate not Included) (White)
6Panel, Drawer (Lower) (Also Order Item 11) (White)
6Panel, Drawer (Lower) (Also Order Item 11) (Stainless Steel)
7Pad, EPS
8WPL 99003716
9WPY912620 Whirlpool Dishwasher Screw
10WPW10001180 Whirlpool Refrigerator Screw
11Badge (White)
11Badge (Stainless)
11Badge (Black)
12W10117969 Whirlpool Dishwasher Wire Harness
