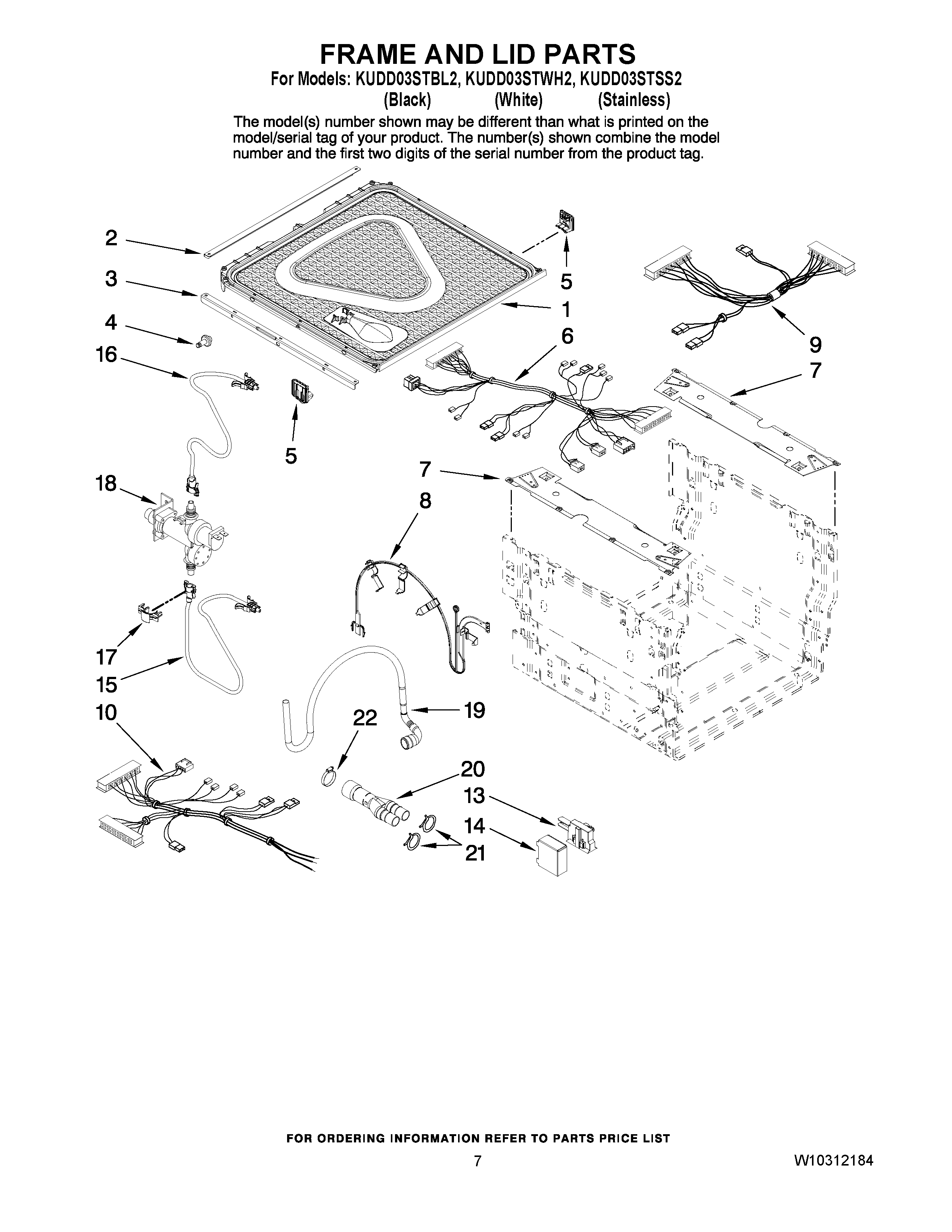

KUDD03STBL2 05 – FRAME AND LID PARTS

Products

Position	Product
1	WP99003677 Whirlpool Dishwasher Lid
2	WPY6920305 Whirlpool Dishwasher Bracket
3	99003722 Whirlpool Dishwasher Lid Bracket
4	99003724 Whirlpool Dishwasher Roller
5	WPL 99003725
5	WPL 99003726
6	WPL 99003706
7	Brace, Top Side (Undercounter Mounting Bracket)
8	WPW10166505 Whirlpool Dishwasher Retainer
9	99003710 Whirlpool Dishwasher Wire Harness
10	WPL 99003709
13	WPL 99003732
14	WPL 99003731
15	99003766 Whirlpool Dishwasher Fill Hose
16	WP99003765 Whirlpool Dishwasher Fill Hose
17	W10189242 Whirlpool Dishwasher Retainer
18	W10200339 Whirlpool Dishwasher Inlet Valve
19	WPL 99003597
20	WPL Y6919906
21	WP616099 Whirlpool Clamp
22	WP596669 Whirlpool Hose Clamp
