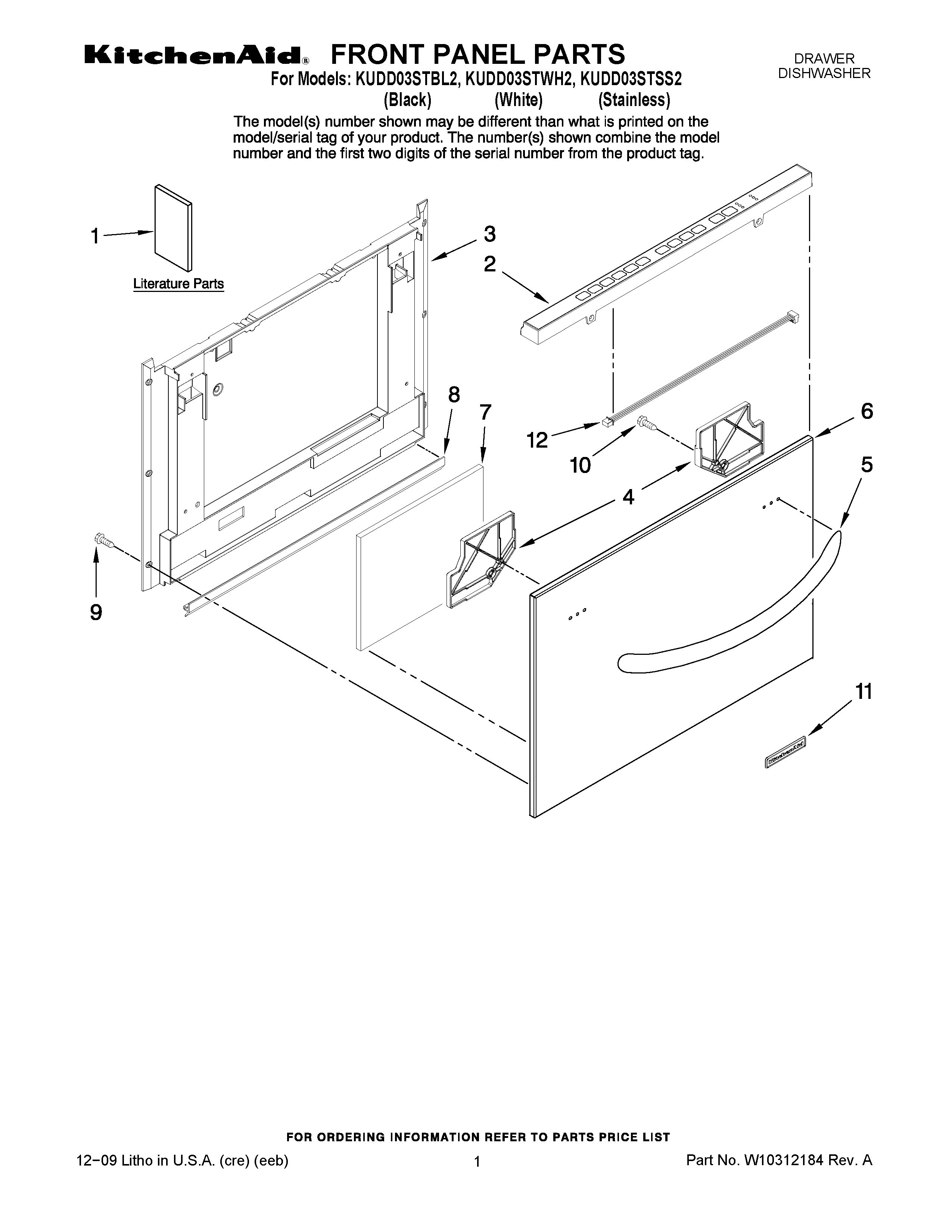

KUDD03STSS2 01 – FRONT PANEL PARTS

Products

Position	Product
1	Energy Guide
1	Instructions, Installation
2	Control Panel (Includes User Interface) (Black)
3	Intermediate Panel (Upper)
4	Anchor Panel
5	Handle, Drawer (White)
5	Handle, Drawer (Stainless)
5	Handle, Drawer (Black)
6	Panel, Drawer (Also Order Item 11) (White)
6	Panel, Drawer (Also Order Item 11) (Black)
6	Panel, Drawer (Also Order Item 11) (Stainless Steel)
7	Pad, EPS
8	WPL 99003716
9	WPY912620 Whirlpool Dishwasher Screw
10	WPW10001180 Whirlpool Refrigerator Screw
11	Badge (White)
11	Badge (Stainless)
11	Badge (Black)
12	W10117969 Whirlpool Dishwasher Wire Harness
