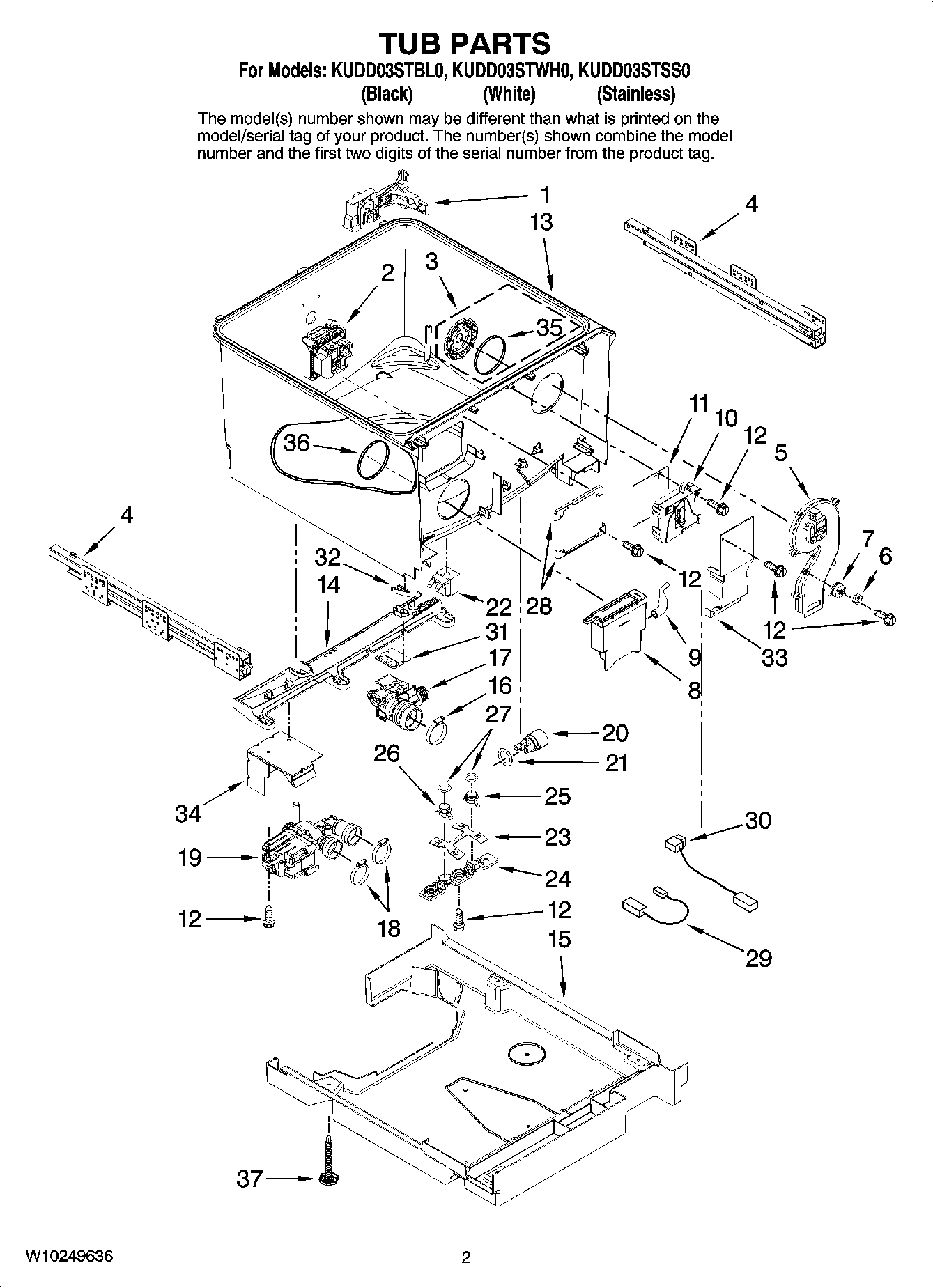

KUDD03STWH0 02 – TUB PARTS

Products

Position	Product
1	WPW10162499 Whirlpool Dishwasher Latch Kit
2	DISPENSER
3	WP99003605 Whirlpool Inlet/Outlet Bezel
4	WP99003760 Whirlpool Dishwasher Right Hand Slide
4	WP99003759 Whirlpool Dishwasher Left Hand Slide
5	WPW10155595 Whirlpool Dishwasher Fan Motor
6	99003696 Whirlpool Bracket
7	99003626 Whirlpool Dishwasher Power Switch
8	WP99003781 Whirlpool Dishwasher Air Inlet
9	99003694 Whirlpool Dishwasher Pressure Hose
10	99003733 Whirlpool Dishwasher Control Module
11	WPL W10118305
12	99003740 Whirlpool Screw Assembly
13	WPL W10180845
14	WPL Y6919650
15	WPL 99003714
16	WP616099 Whirlpool Clamp
17	WP6-920639 Whirlpool Dishwasher Drain Pump
19	WPL 99003730
20	WPW10120019 Whirlpool Dishwasher Sensor
21	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
22	WPL 99003773
23	WPL 99003727
24	WPL 99003701
25	99003624 Whirlpool Dishwasher Fuse
26	99003623 Whirlpool Dishwasher Thermostat
27	99001979 Whirlpool Dishwasher Pump Thermostat O-Ring
28	WPL 99003699
29	99003705 Whirlpool Dishwasher Thermostat Wire
30	WPL 99003708
31	WPL W10118491
32	W10190274 Whirlpool Dishwasher Catch
33	WPL 99003758
34	WPL W10121259
35	WPL 99003715
36	WPW10286124 Whirlpool Dishwasher Seal
37	WPW10143258 Whirlpool Dishwasher Leg Leveler
