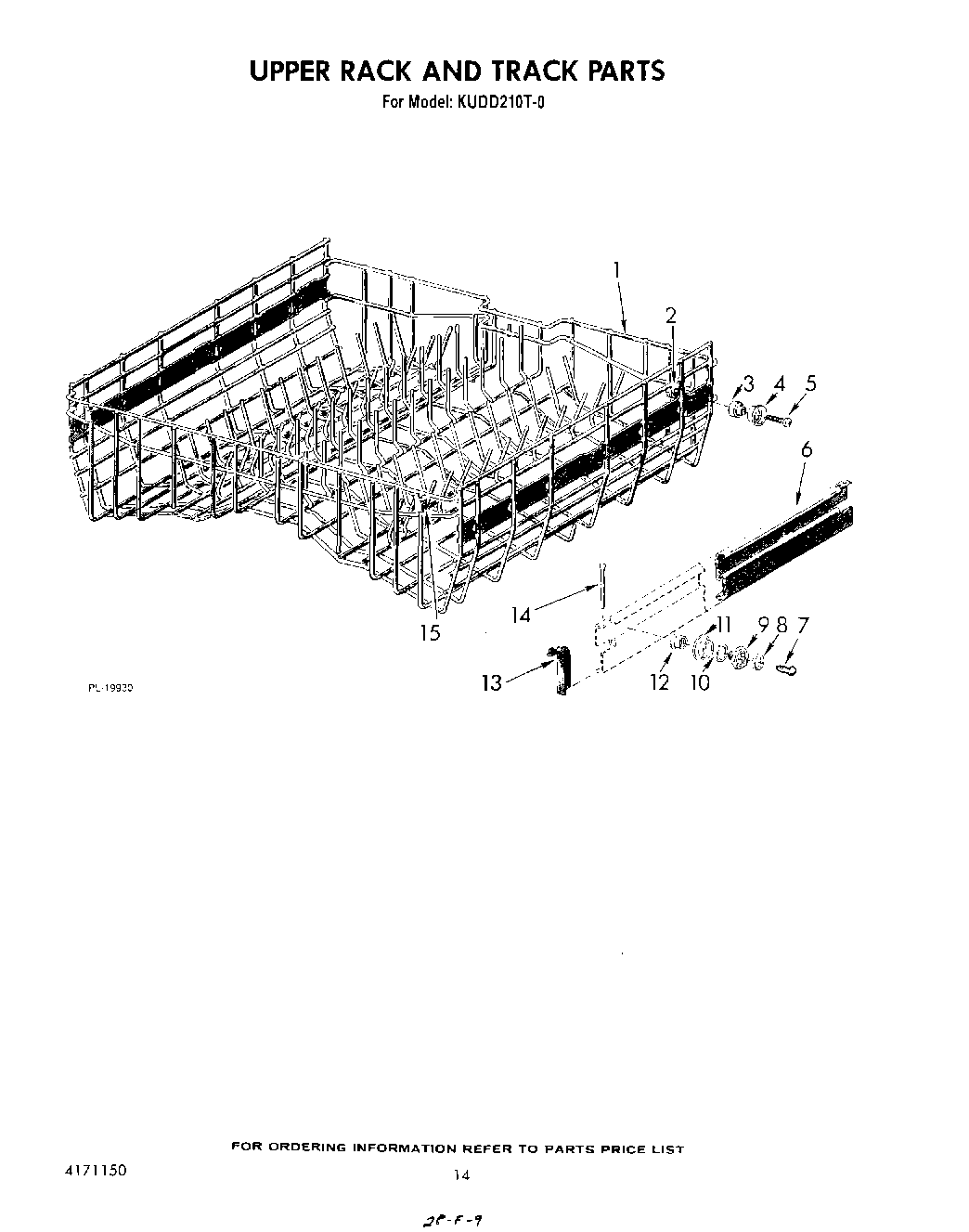

KUDD210T0 11 – UPPER RACK AND TRACK

Products

PositionProduct
1Upper Rack Assy. (Incls. Items 2, 3, 4, 5 & 15)
2Nut, Roller
3Bearing & Spacer, Rack Roller
4Roller, Upper Rack Track
5Screw, 10-16 X 1
6Track, Rack
7Screw, 10-16 X 3/8
8Gasket, Rack Stud
9Stud, Rack Roller
10Washer, Roller Spacing
11Roller, Rack Track
12Bushing, Rack Roller
13Bumper, Rack Track
14Stud, Bumper Retaining
15Bumper, Upper Rack
