KUDD210T1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

KUDD210T1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Written by

in

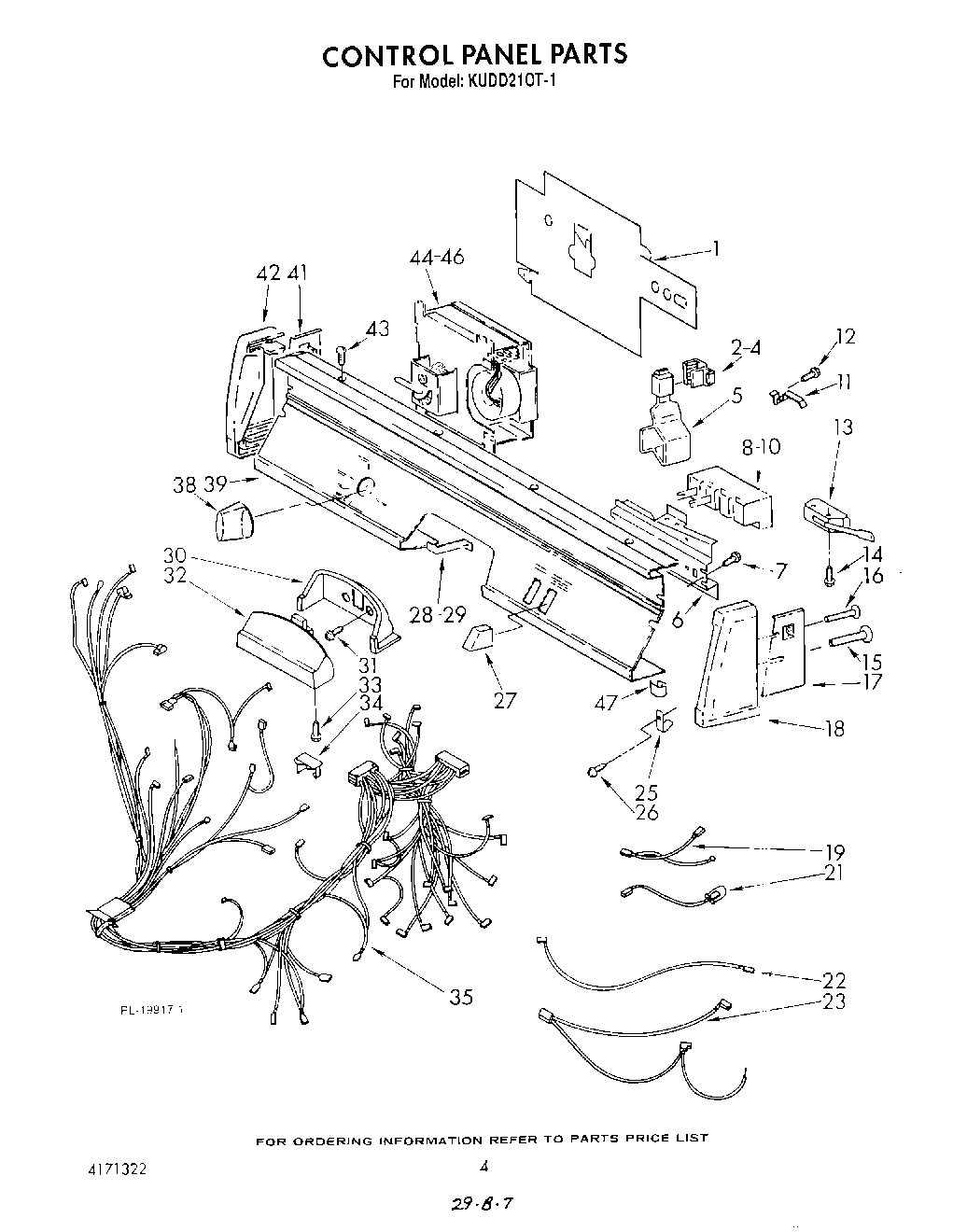

KUDD210T1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
WPL L1T4171152
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
WPL L1T4171139
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL L1T4171136
Paint, Spray (13 Oz.) (Platinum)
Toast
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
WPL L1T4177721
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
WPL L1T4171322
Golden Harvest
Golden Harvest (Uncut)
1Insulator, Latch
2Anchor, Cancel Spring
4Rivet
5Spring, Switch Cancel
6Bracket, Program Switch
8Switch, Program
10Screw, 10-16 X 5/8
11Spring, Door Interlock
12WP693304 Whirlpool Screw
13Switch, Interlock
14Screw 6-32 X 7/8
15Screw & Washer Assy
16WP681249 Whirlpool Screw Assembly
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
19Wiring Harness (Grounding)
21Lead (Fill Control to Fill Valve)
22Lead Assembly (Interlock Switch to Program Switch)
23Wiring Harness (Lower Common)
25Clip, Grounding (Front Panel)
27Button, Program Switch (2)
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35Wiring Harness (Main)
35screw, 8-18 x 3/8
38Knob, Timer
39Control Panel
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Timer Assy. (115 V., 60 Hz.)
46SCREW
47Clip, Endcap (2)
