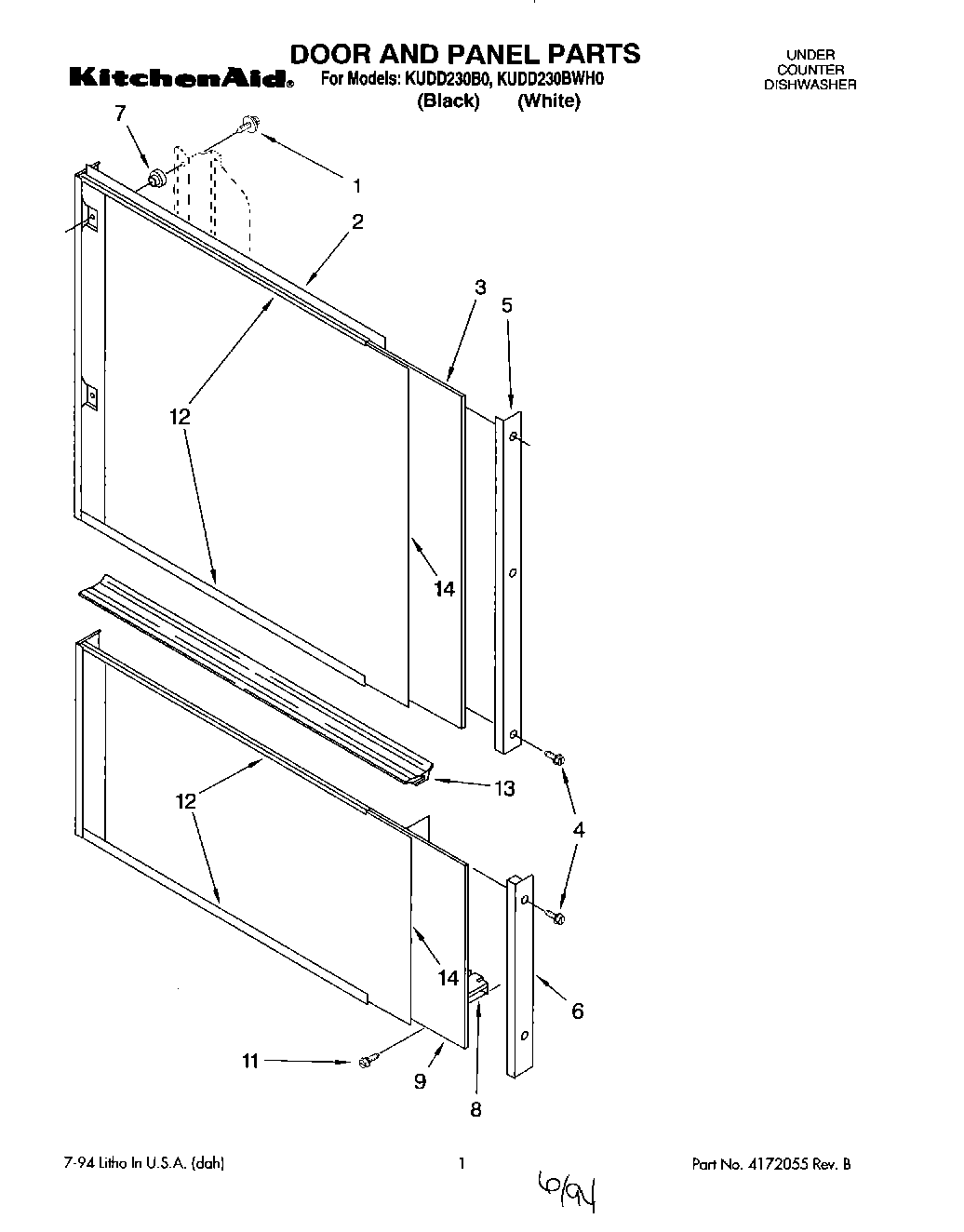

KUDD230B0 01 – DOOR AND PANELadmin2025-04-26T13:02:01+00:00KUDD230B0 01 – DOOR AND PANEL ProductsPositionProduct1Screw2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)3Filler (Upper Panel)4Screw (White Model)4Screw (Black Model)5Side Trim (Upper Panel) (Black Model)5Side Trim (Upper Panel) (White Model)6Side Trim (Lower Panel) (White Model)6Side Trim (Lower Panel) (Black Model)7Grommet, Panel8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)9Filler (Lower Panel)11Screw12Trim, Panel (Upper & Lower) (White Model)12Trim, Panel (Upper & Lower) (Black Model)13Channel, Evaporation14Panel Insert Kits (OPTIONAL KITS) (Fresh Avocado/ Coffee)14Panel Insert Kits (White/Black)14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)14Panel Insert Kits (OPTIONAL KITS) (Almond/White)14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
