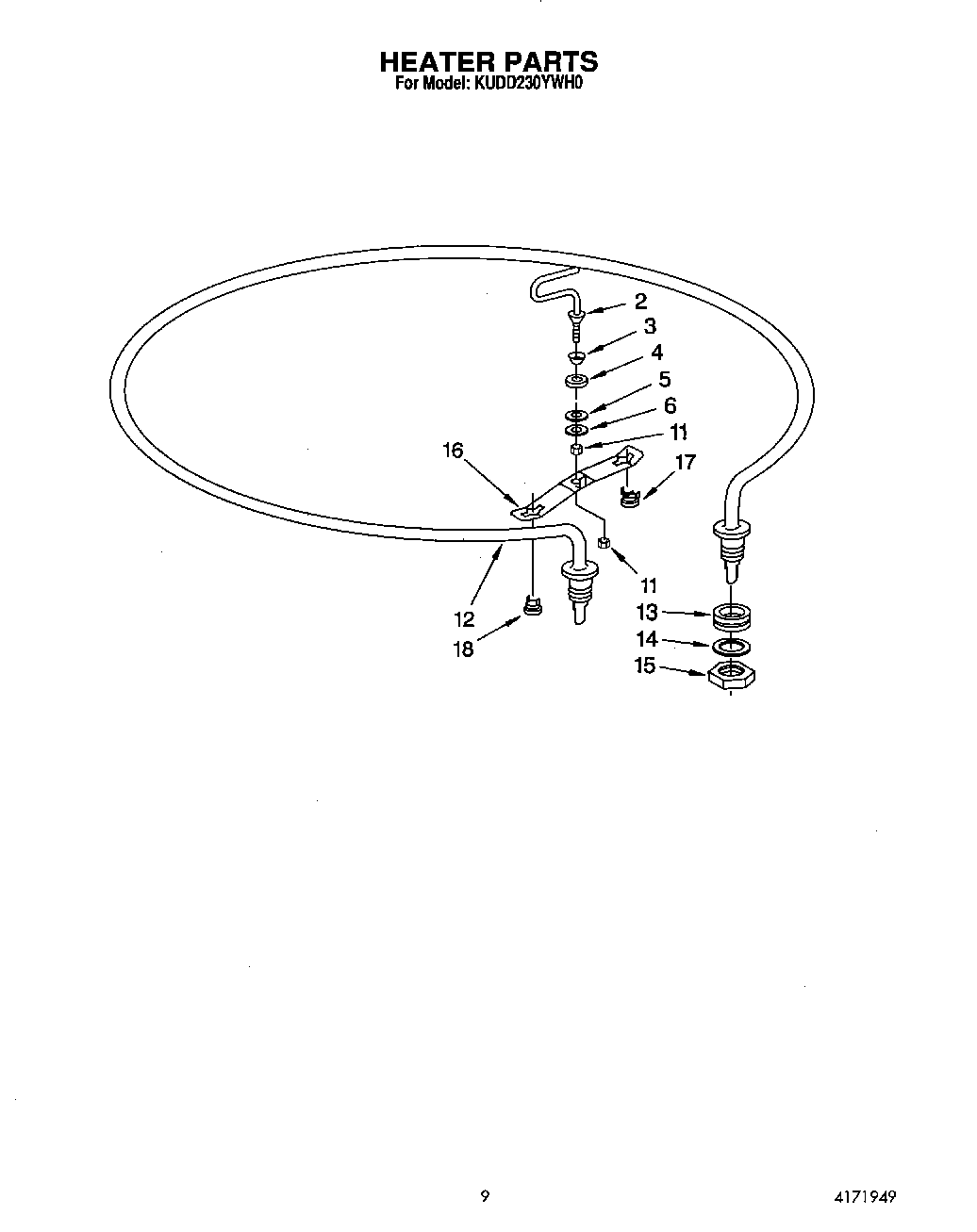

KUDD230YWH0 06 – HEATER

Written by

Products

Position	Product
2	Hook, Heater Element
3	Washer
4	Washer, Sealing
5	Washer
6	Washer
11	Nut, Lock
12	Element, Heater
13	Grommet, Heater Element
14	Washer, Heater Element
15	Nut, Heater Element
16	Bracket, Thermostat
17	WP661566 Whirlpool High Limit Thermostat
18	Thermostat
