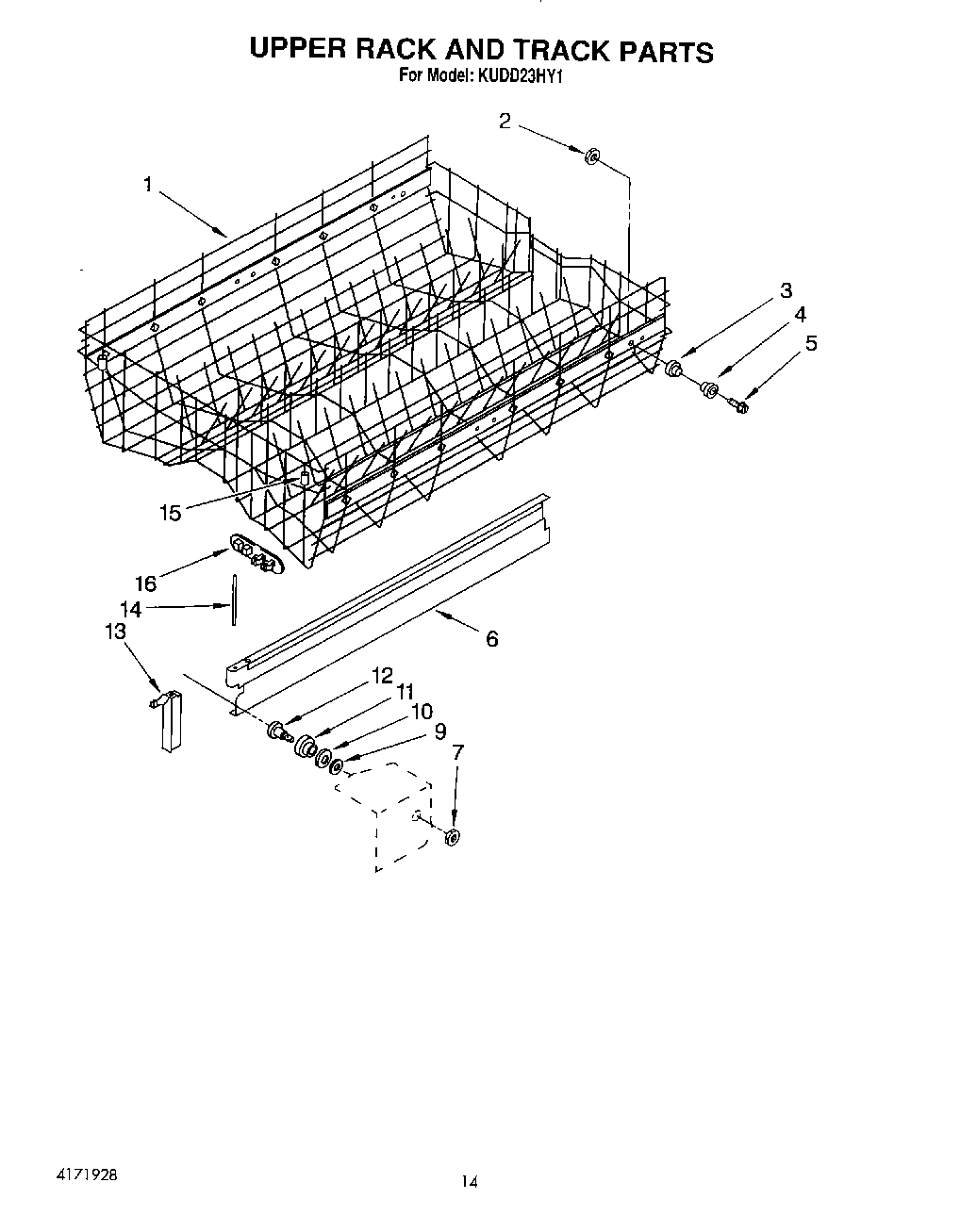

KUDD23HY1 10 – UPPER RACK AND TRACK

Written by

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Roller, Upper Rack Track
5	Screw, 10-16 X 1
6	Track, Rack
7	Nut, Lock
9	Washer
10	Washer, Cup
11	Roller, Rack Track
12	Screw. Track Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Upper Rack
16	Clip, Wash Arm Guard
