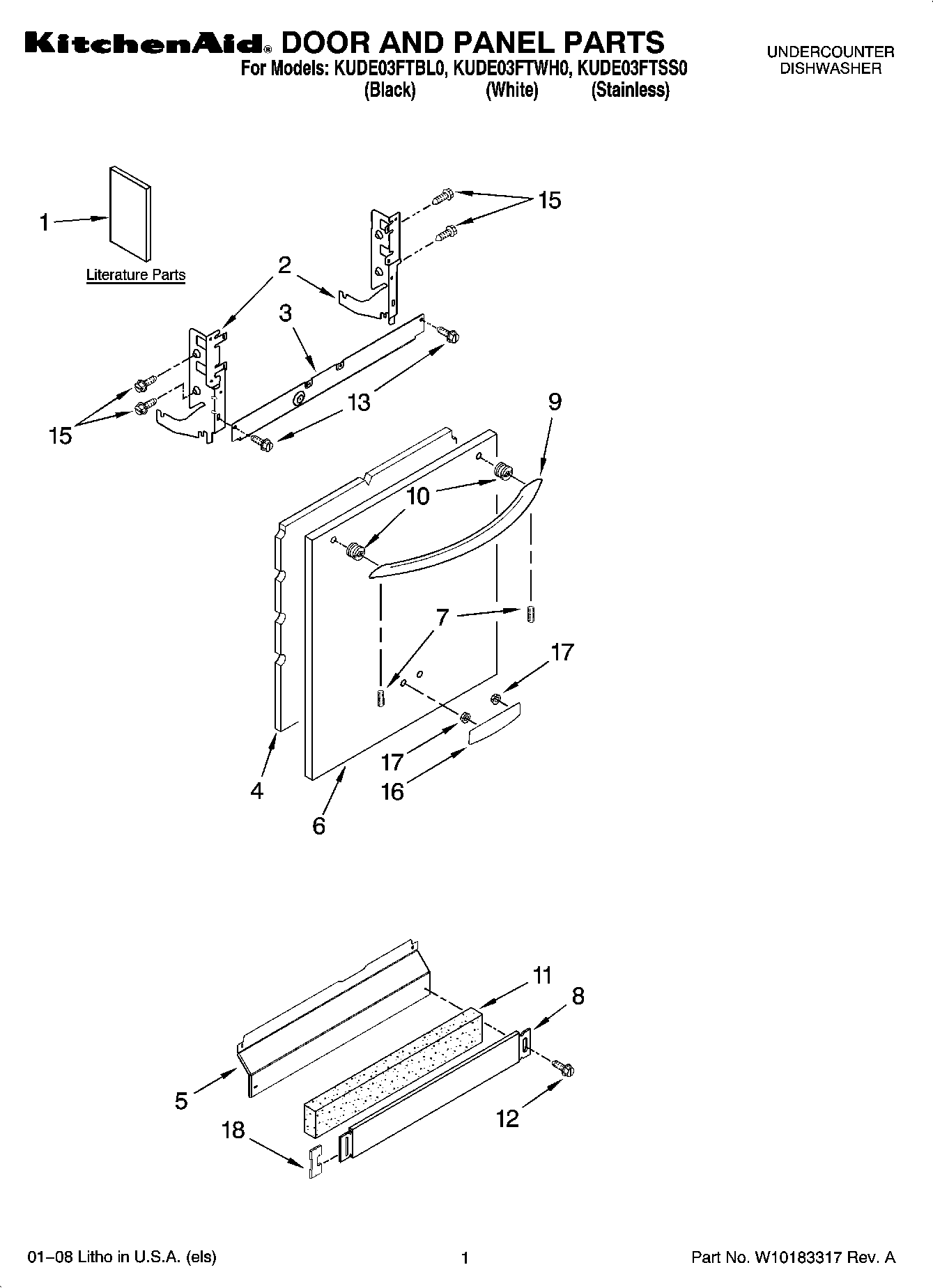

KUDE03FTBL0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Use & Care Spanish
1	Energy Guide
1	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1	Guide, Use & Care English/French
1	Instructions, Installation
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10909066 Whirlpool Dishwasher Panel
6	Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
6	Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
6	Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
7	WP8534008 Whirlpool Screw
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	W10195738A Whirlpool Stainless Steel Door Handle
9	Handle Assy (Includes Items 7) (Black)
9	Handle Assy (Includes Items 7) (White)
10	WP8564951 Whirlpool Dishwasher Stud
11	SHIELD
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
16	W10021870 Whirlpool Nameplate
16	W10021860 Whirlpool Dishwasher Nameplate
16	W10021850 Whirlpool Dishwasher Nameplate
17	WP2004333 Whirlpool Refrigerator Nut
18	WP8269016 Whirlpool Clip Assembly
