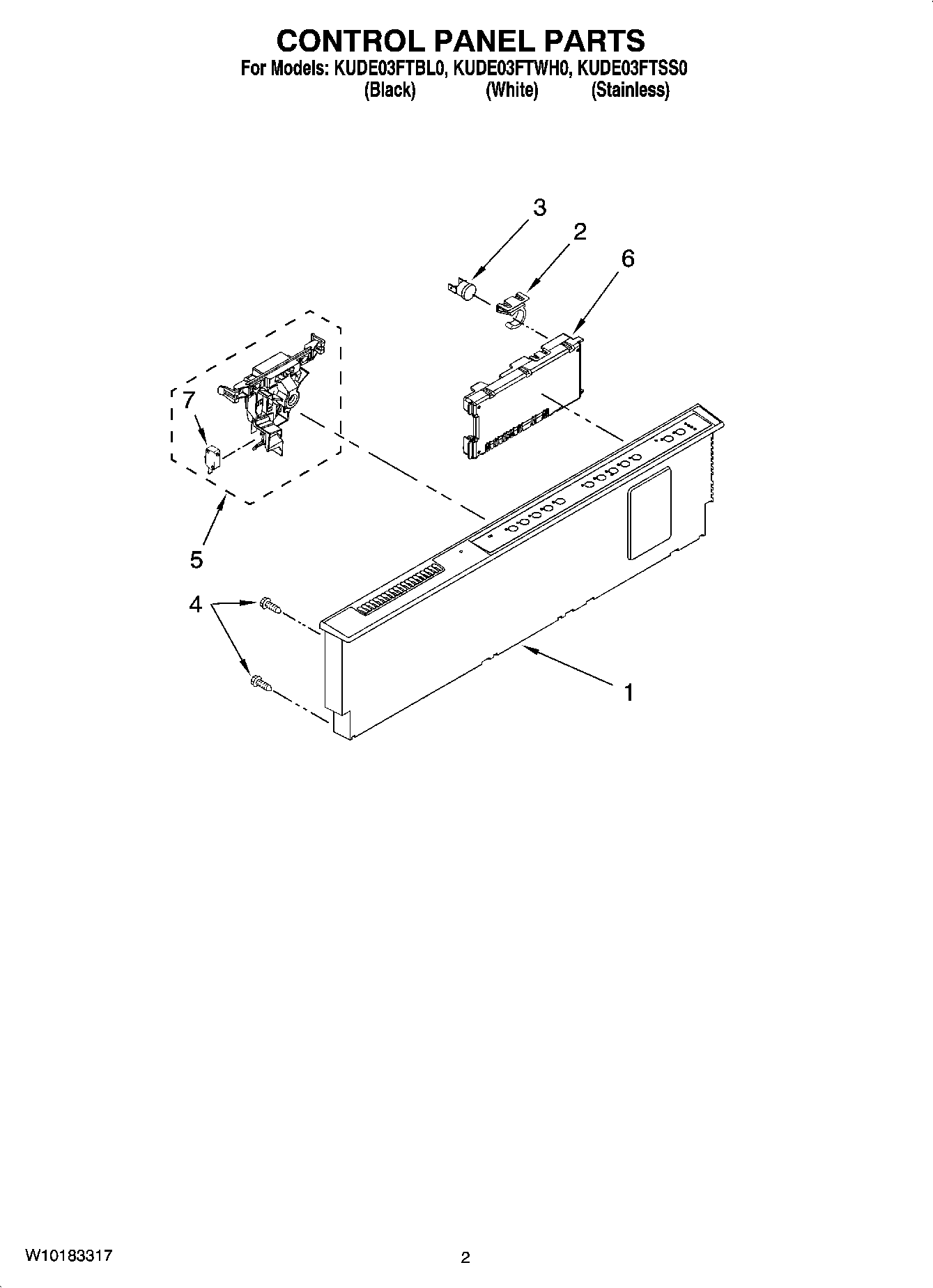

KUDE03FTBL0 02 – CONTROL PANEL PARTS

KUDE03FTBL0 02 – CONTROL PANEL PARTS

Written by

in

KUDE03FTBL0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Black)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Stainless)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10348409 Whirlpool Screw
5WPW10404412 Whirlpool Door Latch
6WPW10285178-includeCORE Whirlpool WPW10285178 Dishwasher Electronic Control Board
7WPW10134019 Whirlpool Dishwasher Switch
