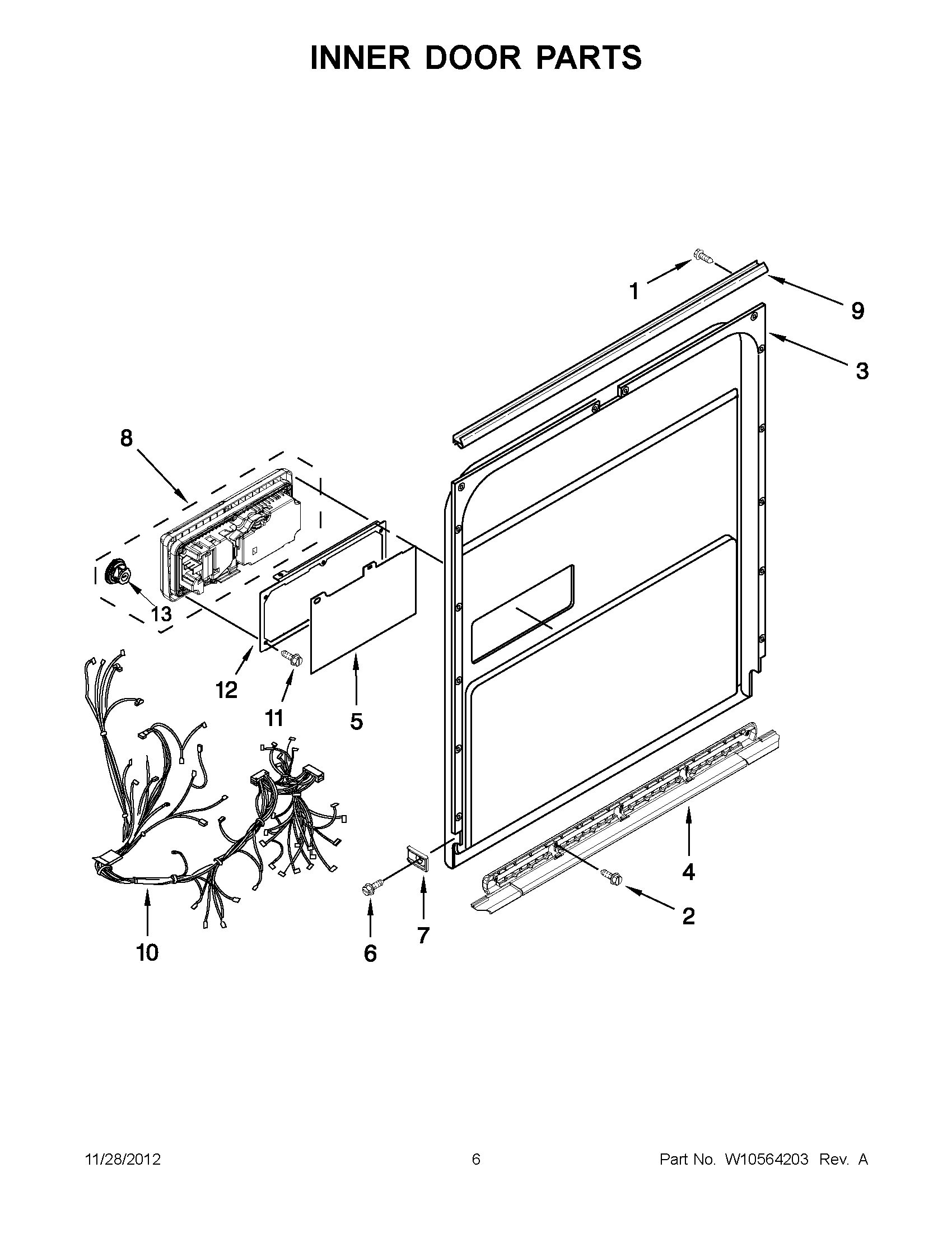

KUDE20FBSS0 03 – INNER DOOR PARTS

KUDE20FBSS0 03 – INNER DOOR PARTS

Written by

in

KUDE20FBSS0 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10482094 Whirlpool Dishwasher Cover
6WP3400071 Whirlpool Screw
7W10195837 Whirlpool Dishwasher Barrier
8DISPENSER (DISHWASHER)
9WPW10195007 Whirlpool Dishwasher Seal
10W10911101 Whirlpool Dishwasher Wire Harness
11WPW10177098 Whirlpool Dishwasher Screw
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
13WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
