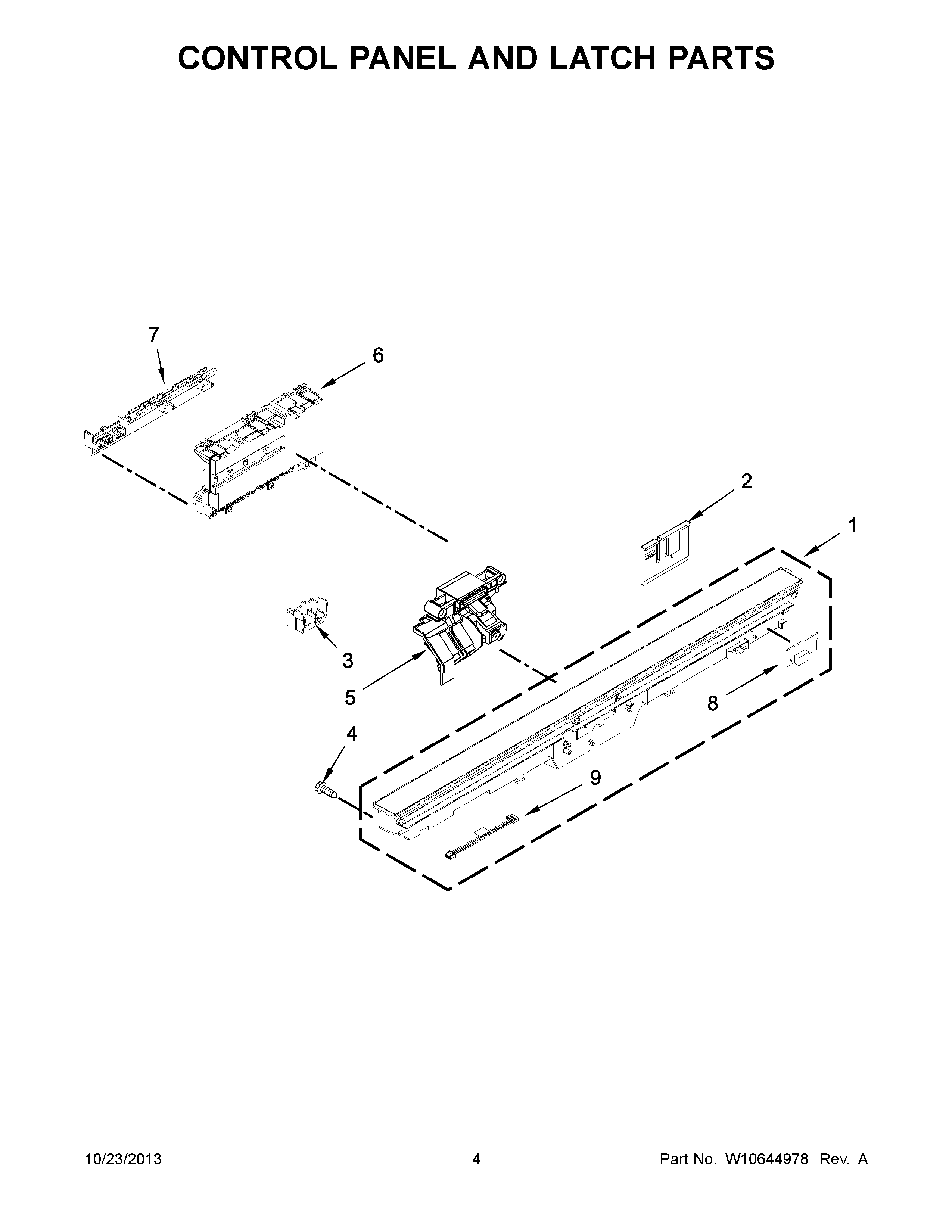

KUDE20FBWH1 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (BLACK)
1	CONSOLE ASSEMBLY (GREY)
1	WPW10481122 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	WPW10462393 Whirlpool Dishwasher Connector
4	WPW10348409 Whirlpool Screw
5	WPW10653840 Whirlpool Door Latch
6	W10866118 Whirlpool Dishwasher Electronic Control Board
7	WPW10462395 Whirlpool Dishwasher Brace
8	WPW10195836 Whirlpool Dishwasher Indicator Light
9	W10528492 Whirlpool Dishwasher Wire
