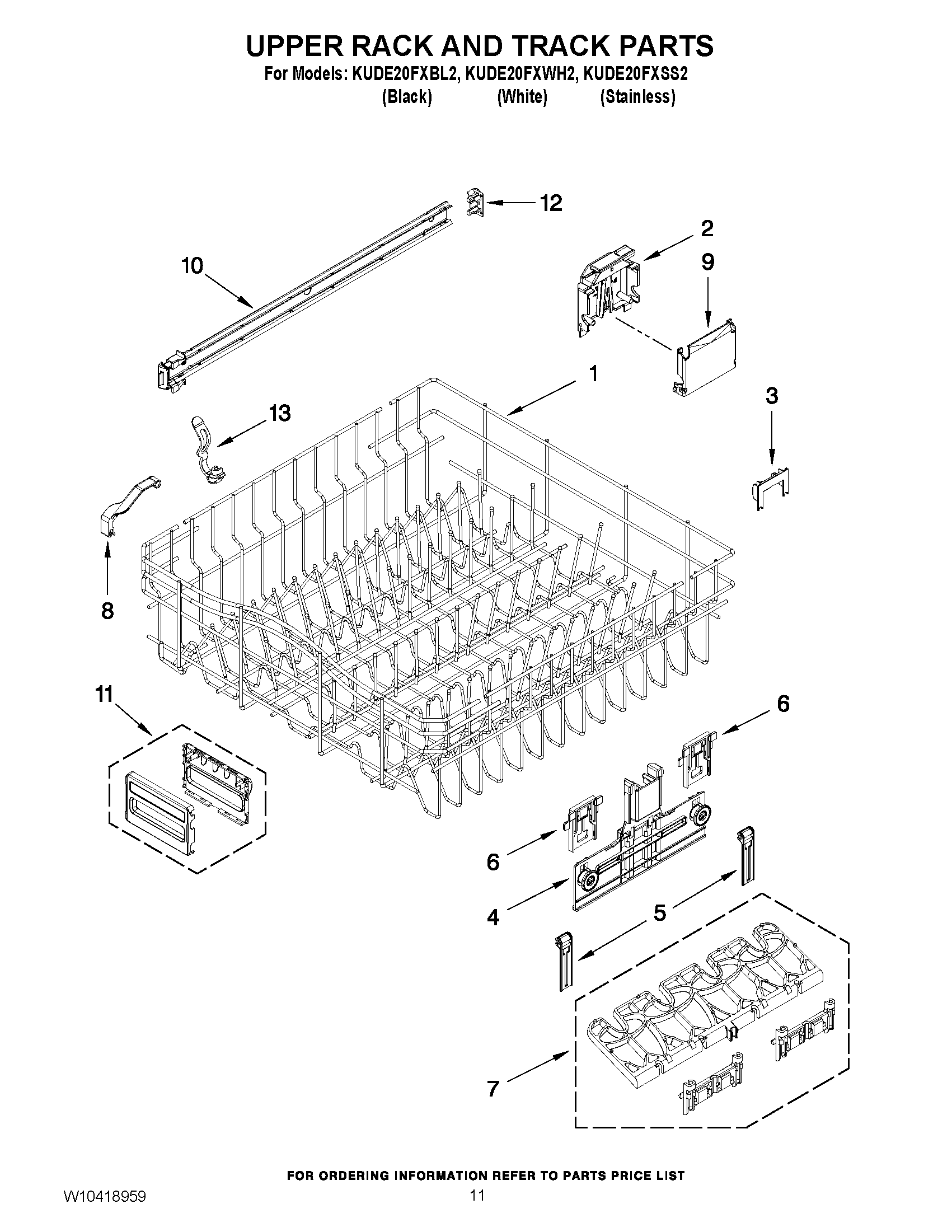

KUDE20FXBL2 09 – UPPER RACK AND TRACK PARTS

KUDE20FXBL2 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDE20FXBL2 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10312792 Whirlpool Dishwasher Dishrack
2WPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4W10712394 Whirlpool Dishwasher Wheel and Arm Adjuster Kit
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8WPW10267076 Whirlpool Guard Clip
9COVER
10TRACK-DISHRACK
11W11110542 Whirlpool Dishwasher Handle
12WPW10195622 Whirlpool Stop
13WPW10077844 Whirlpool Dishwasher Clip
