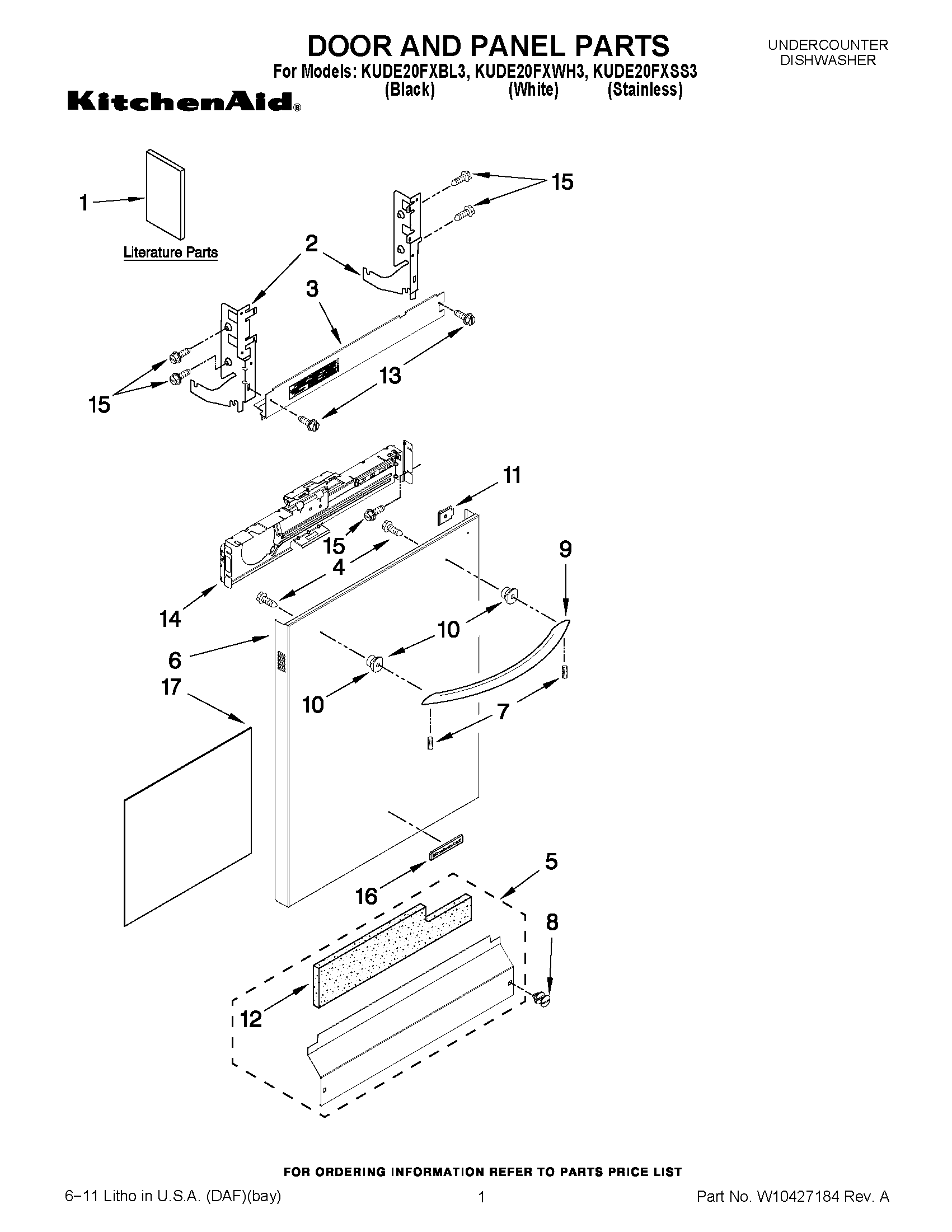

KUDE20FXSS3 01 – DOOR AND PANEL PARTS

KUDE20FXSS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
6WPW10195872 Whirlpool Dishwasher Panel
6WPW10195870 Whirlpool Door Outer Panel
6WPW10195873 Whirlpool Dishwasher Panel
7WPW10307614 Whirlpool Dishwasher Screw
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9W10195736A Whirlpool Dishwasher Handle
9W10195738A Whirlpool Stainless Steel Door Handle
9W10195735A Whirlpool Dishwasher Door Handle Black
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10319007 Whirlpool Dishwasher Indicator Light
12SHIELD
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
16WPW10243392 Whirlpool Dishwasher Nameplate
16WPW10243393 Whirlpool Dishwasher Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
