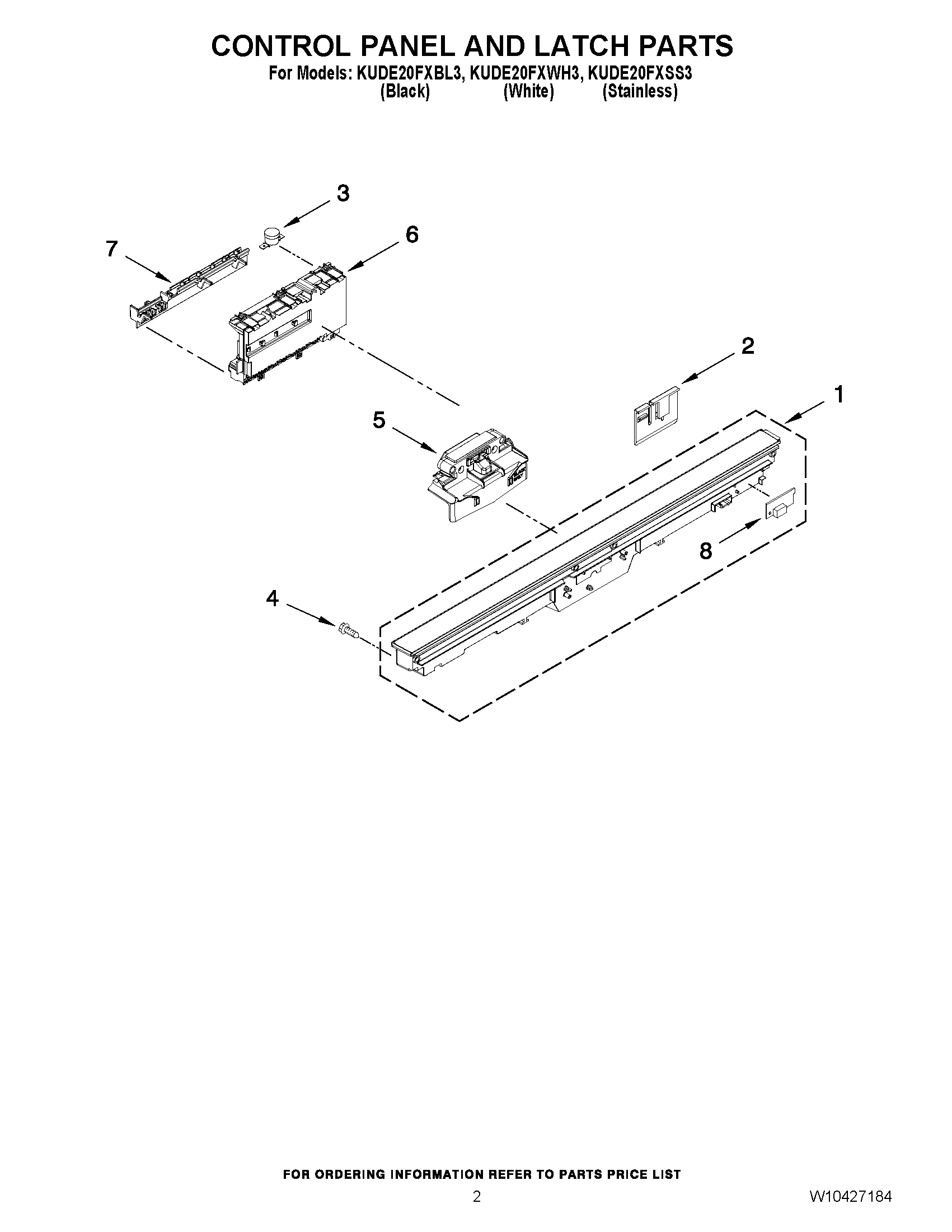

KUDE20FXSS3 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (STAINLESS)
1	CONSOLE ASSEMBLY (BLACK)
1	WPW10481122 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	WPW10352582 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	WPW10195836 Whirlpool Dishwasher Indicator Light
