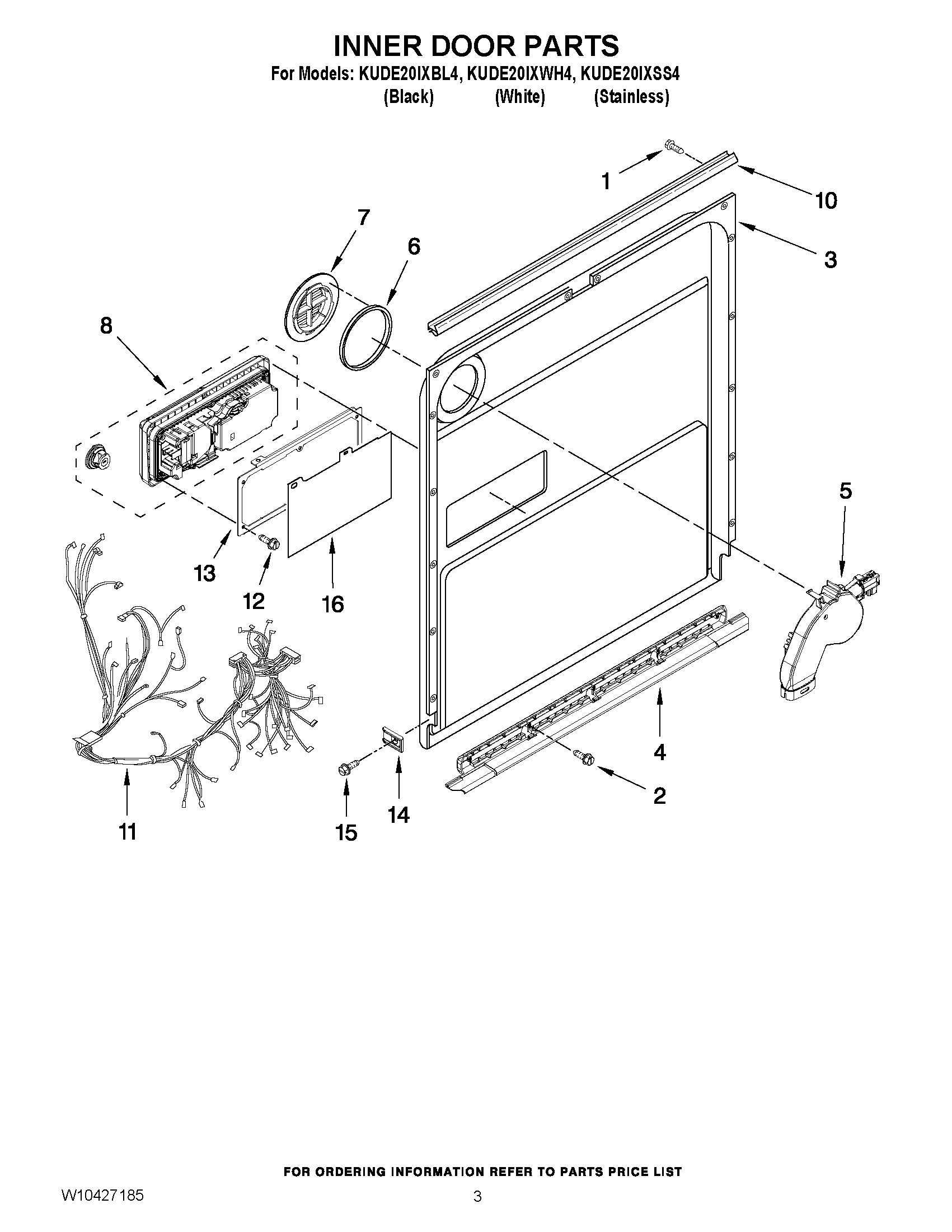

KUDE20IXBL4 03 – INNER DOOR PARTS

KUDE20IXBL4 03 – INNER DOOR PARTS

Written by

in

KUDE20IXBL4 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10467363 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10469575 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7WPW10195032 Whirlpool Dishwasher Deflector
8DISPENSER (DISHWASHER)
10WPW10195007 Whirlpool Dishwasher Seal
11WIRING HARNESS
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
14W10195837 Whirlpool Dishwasher Barrier
15WP3400071 Whirlpool Screw
16W10385977 Whirlpool Dishwasher Cover Assembly
