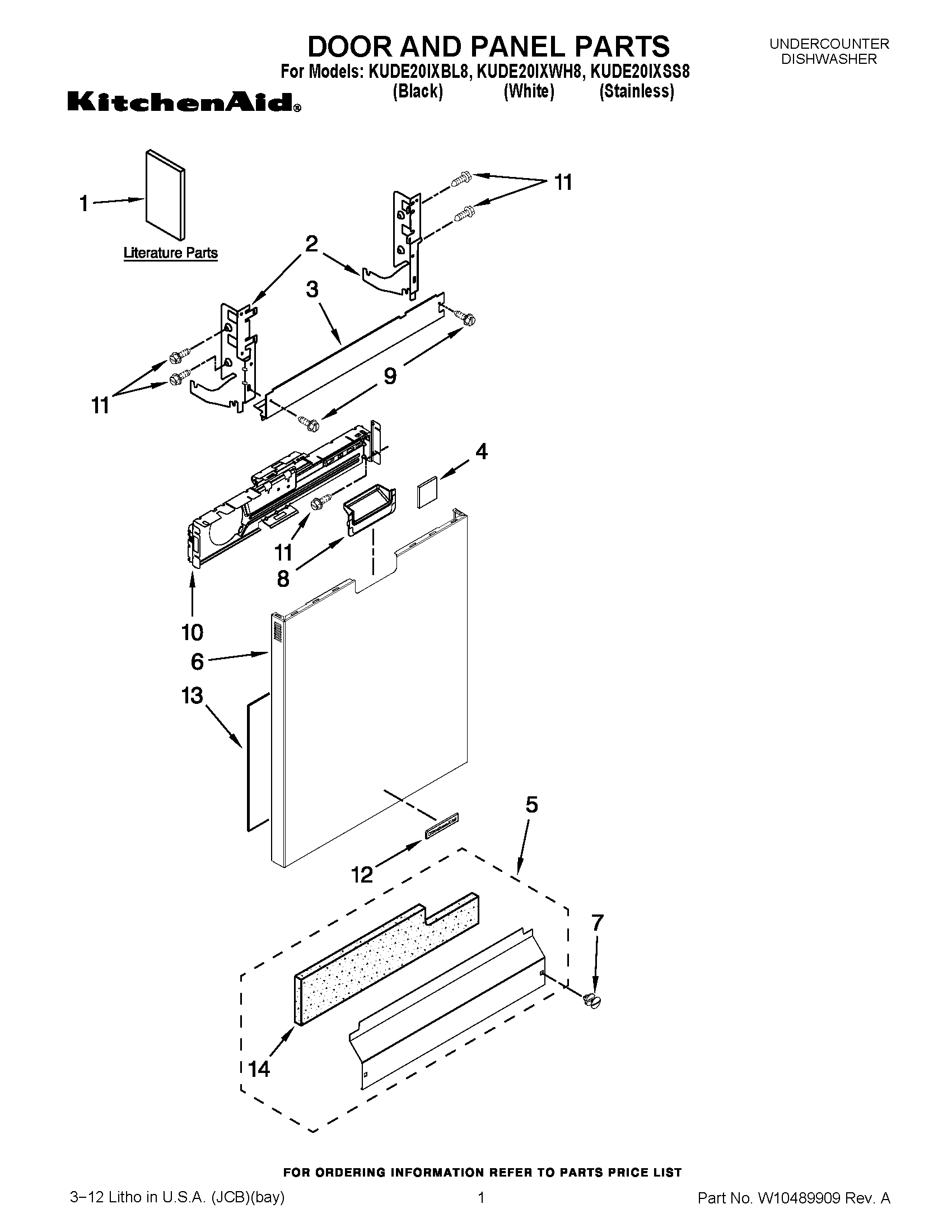

KUDE20IXBL8 01 – DOOR AND PANEL PARTS

KUDE20IXBL8 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BLOCK, FOAM
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
6PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6WPW10195531 Whirlpool Dishwasher Panel
6WPW10195532 Whirlpool Dishwasher Panel
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7WPW10503549 Whirlpool Dishwasher Retainer Clip
8W10563099 Whirlpool Dishwasher Pocket Handle
8POCKET ASSEMBLY (WHITE)
8W10195653 Whirlpool Dishwasher Handle Pocket
9WP489069 Whirlpool Compactor Screw
10W11116870 Whirlpool Dishwasher Control Bracket
11WP3400071 Whirlpool Screw
12WPW10243391 Whirlpool Refrigerator Nameplate
12WPW10243393 Whirlpool Dishwasher Nameplate
12WPW10243392 Whirlpool Dishwasher Nameplate
13WPW10073520 Whirlpool Dishwasher Insulation Pad
14SHIELD
