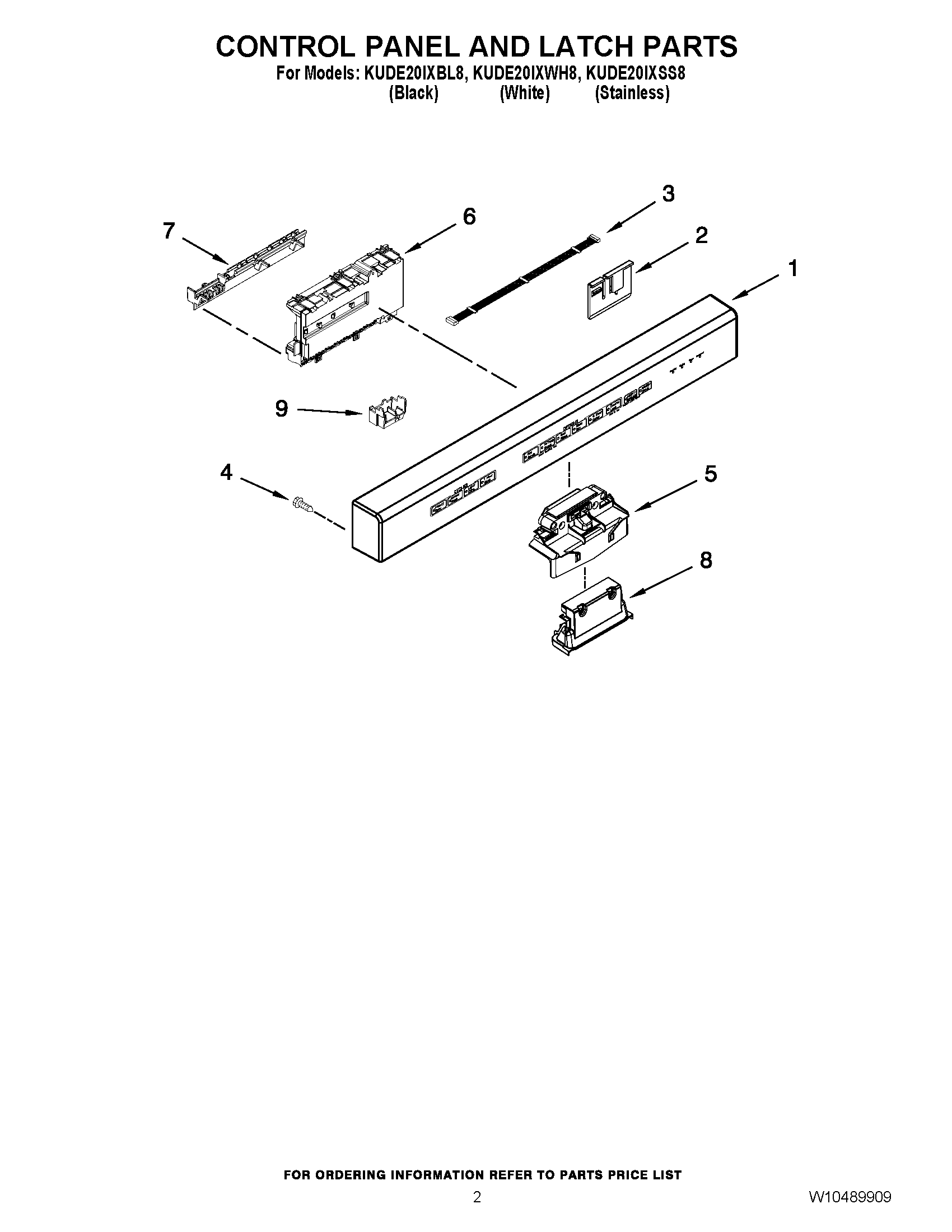

KUDE20IXBL8 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10500181 Whirlpool Dishwasher Control Panel
1	WPW10500180 Whirlpool Dishwasher Control Panel
1	WPW10500179 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	WPW10195666 Whirlpool Dishwasher Wire Assembly
4	WPW10348408 Whirlpool Dishwasher Screw
5	W10619006 Whirlpool Door Latch
6	W10473198 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	HANDLE (STAINLESS)
8	HANDLE (WHITE)
8	WPW10195718 Whirlpool Dishwasher Handle
9	W10783730 Whirlpool Dishwasher Connector
